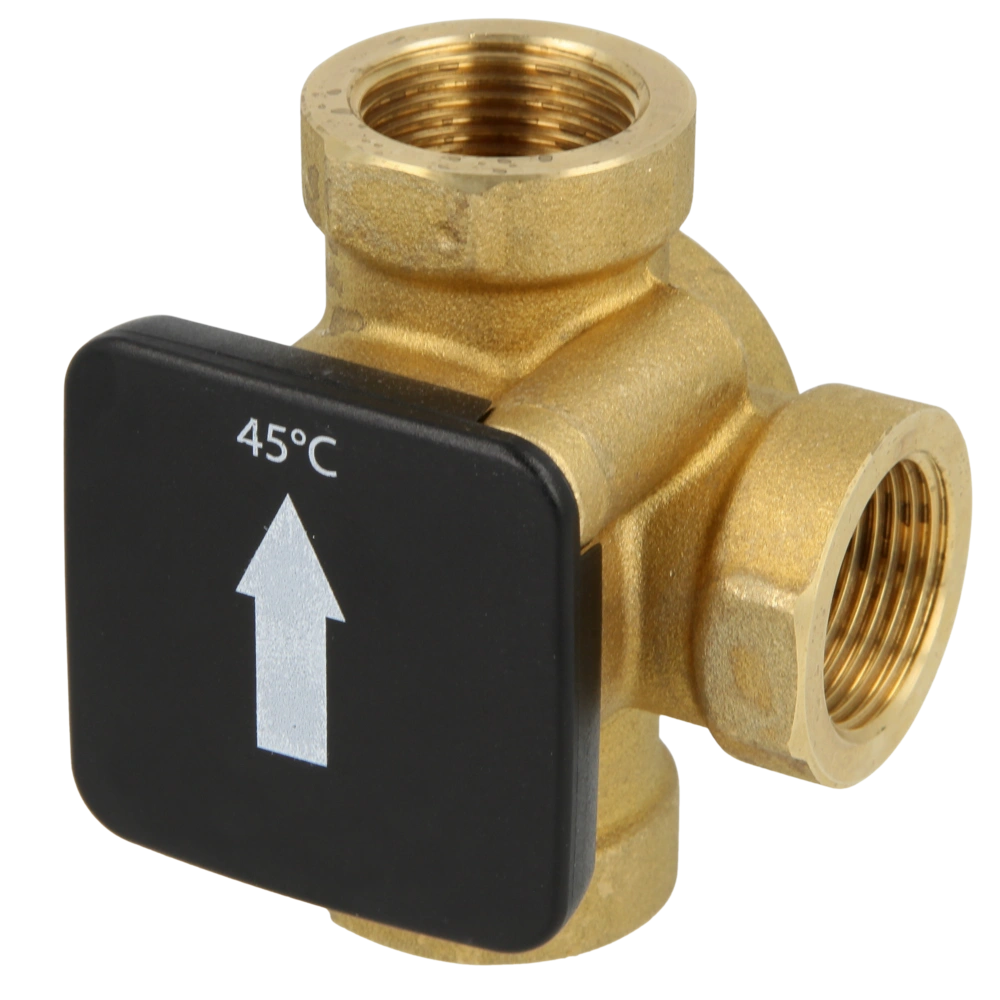

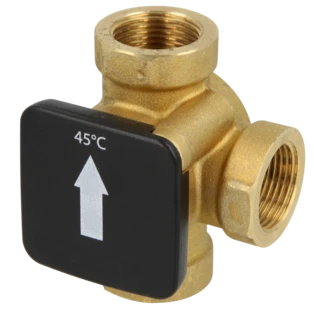

Thermal load valve 3/4" IT opening temperature 45 °C

OEG no.: 512240760
Zoom Thermal load valve 3/4" IT opening temperature 45 °C
OEG no. : 512240760

Thermal load valve for the return rise of solid fuel boilers with or without buffer storage tank. It maintains the boiler water temperature and return temperature high, thereby optimises combustion and...

All product information
Related products
Wipe 'n' Buy ®
Wipe 'n' Buy

Thermal load valve for the return rise of solid fuel boilers with or without buffer storage tank. It maintains the boiler water temperature and return temperature high, thereby optimises combustion and prevents the undershooting of the dew point. In buffer storage tank systems, it ensures an excellent temperature stratification. The load valve does not need any external power and is available in different opening temperatures.


For more information see Downloads


OEG no. 512240760
Material: Brass
Connection size [inch]: 3/4
Operating temperature [°C]: 95
kvs-value [m³/h]: 6.0
Opening temperature [°C]: 45
Seal: EPDM
Pressure max. [bar]: 10
Weight [kg] 0.77
Customs tariff number 84818059 (SE)
