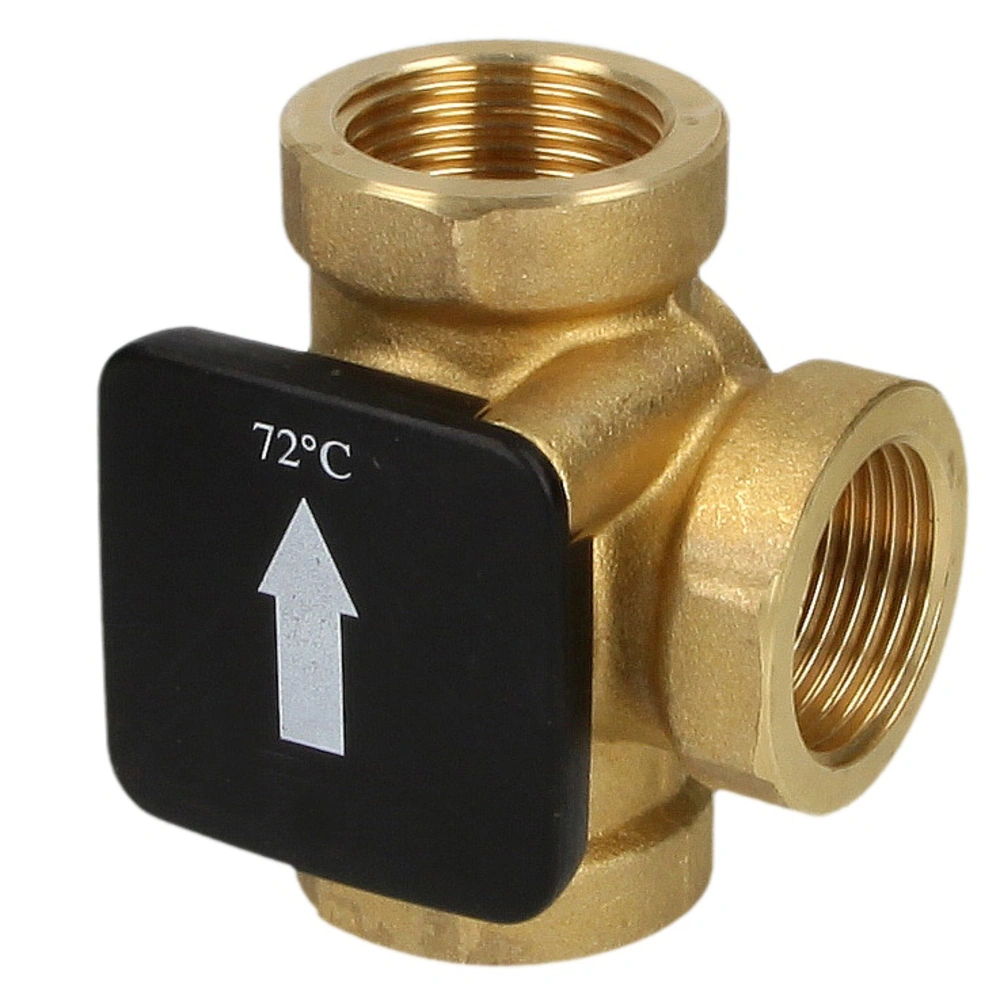

Thermal load valve for the return rise of solid fuel boilers with or without buffer storage tank. It maintains the boiler water temperature and return temperature high, thereby optimises combustion and...
All product informationThermal load valve for the return rise of solid fuel boilers with or without buffer storage tank. It maintains the boiler water temperature and return temperature high, thereby optimises combustion and prevents the undershooting of the dew point. In buffer storage tank systems, it ensures an excellent temperature stratification. The load valve does not need any external power and is available in different opening temperatures.
For more information see Downloads
OEG no. | 512240732 |
Material: | Brass |
Connection size [inch]: | 1/2 |
kvs-value [m³/h]: | 4.0 |
Opening temperature [°C]: | 72 |
Seal: | EPDM |
Operating temperature [°C]: | 110 |
Pressure max. [bar]: | 10 |
Weight [kg] | 0.77 |
Customs tariff number | 84819000 |
