Single-line suction pump unit for pumping the heating oil from the tank to one or several burners. The set-up location of the unit is selected in the vicinity of the burners so that they can remove...
All product information Scope of deliveryRelated products
TÜV Rheinland
Delivery by forwarding agency
Shipment on Sundays / bank holidays and delivery on the next working day is not possible for this item.

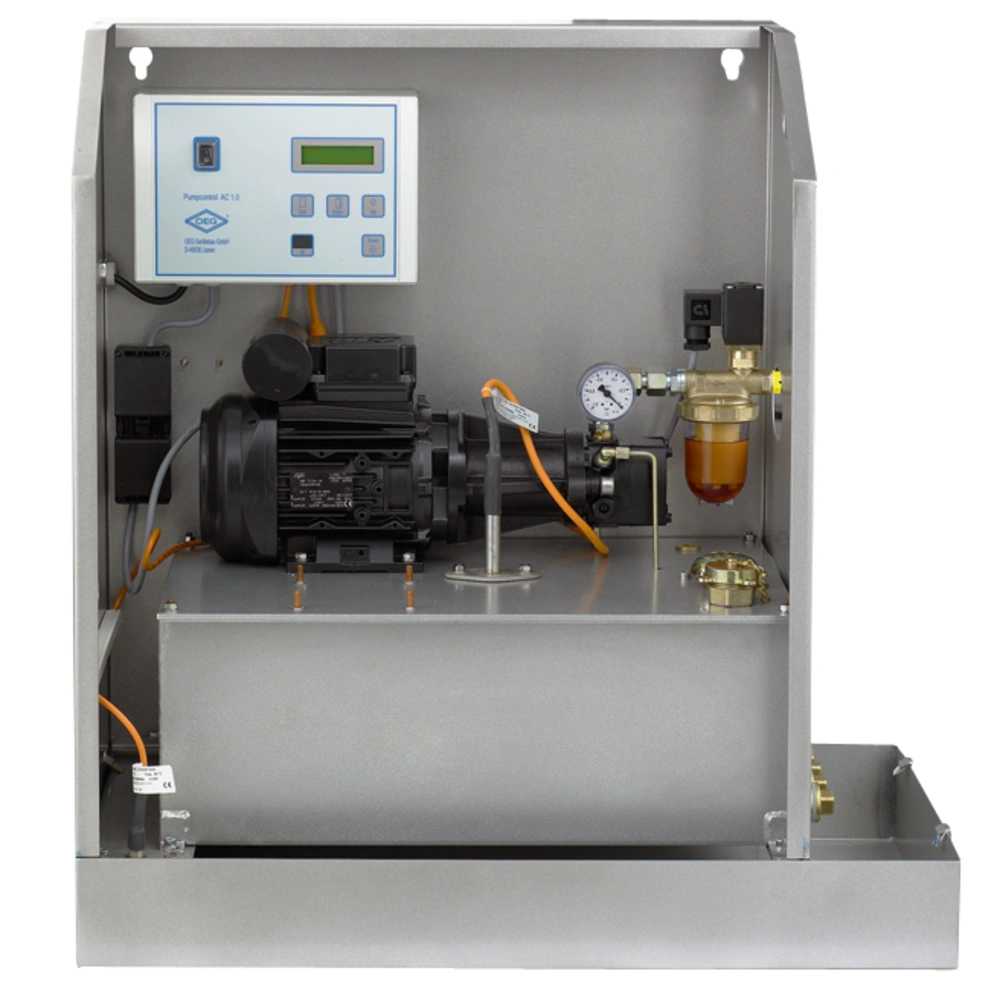

Single-line suction pump unit for pumping the heating oil from the tank to one or several burners. The set-up location of the unit is selected in the vicinity of the burners so that they can remove the calmed oil from the vessel via six individual ports.
The unit generates a vacuum of -0.95 bar and, thus, achieves a maximum delivery head of 9.5 m vertically at a possible distance of 200 m horizontally. An overfill protection device and the oil sump pan with leak detector provide for the necessary safety. The fill level protection guarantees dry-running protection. The control unit used offers extensive control options with potential-free operating and fault-message outputs as well as with an event memory.
| Scope of delivery: | |||
| 1 x | Fastening material | ||
| 1 x | single-motor suction unit | ||
| 4 x | transport bracket for floor mounting | ||
| Spare parts: | |||
|
PST AC 1.0 pump control unit | ||
|
Terminal base for OEG control AC 1.0 | ||
|
Float switch with overflow protection EVF-80/50V000-1TFL175-SB0,6PVCSt-WHG | ||
|
Vacuum gauge R 1/4" axial from -1 to 0 bar | ||
|
Filter 3/8", single line | ||
|
Pump, 180 l, Suntec, AJ4 Ax 100x 4P (E2487) | ||
|
Motor with pump flange, coupling, screws, 230 V, for 3/8'' pumps | ||
For more information see Downloads
| OEG no. | 120100215 |
| Voltage [V]: | 230 |
| Type: | SE 200 |
| Pipe diameter [mm]: | 15 .. 18 |
| Suction connection: | 3/8" |
| Plug type: |
 Plug with earthing contact
|
| Motor power [kW]: | 0.25 |
| Burner capacity max. [kW]: | 1,800 |
| Length x Width x Height [mm]: | 700 x 400 x 730 |
| Output max. [l/h]: | 200 |
| Pumped medium: | Heating oil EL |
| Number of motors: | 1 |
| Speed [rpm]: | 2,800 |
| Housing: | Steel sheet powder-coated |
| Manufacturer | OEG |
| Weight [kg] | 64.6 |
| Notes |
TÜV Rheinland
Delivery by forwarding agency
Shipment on Sundays / bank holidays and delivery on the next working day is not possible for this item.
|
| Customs tariff number | 84136039 |
Is de aansluitmaat 15mm binnendiameter en 18mm buiten of moet de buitendiameter tussen 15 en 18mm zijn?
De aanbevolen buisdiameter is 15 - 18 mm.
Hallo, habe 50m senkrecht und 3m höhe Brenner hatt 415KW mit 3/8“ Ölleitunganschluss saugpumpe. Mit welche Dimension muss ich die ölleitung 50m installieren reicht da 10 oder 12mm Mit freundlichen Grüßen
Die Empfohlen Rohrdurchmesser für den Artikel liegen bei 15 - 18 mm.
Die Pumpe läuft gut nur der TÜV möchte eine Typenzulassung können wir das Liefern?
Guten Morgen,
Sie erhalten in Kürze die angefragten Tüv - Unterlagen zu Artikel Single suction unit 1,800 kW with safety plug.
mit freundlichen Grüßen
das OEG TEAM
