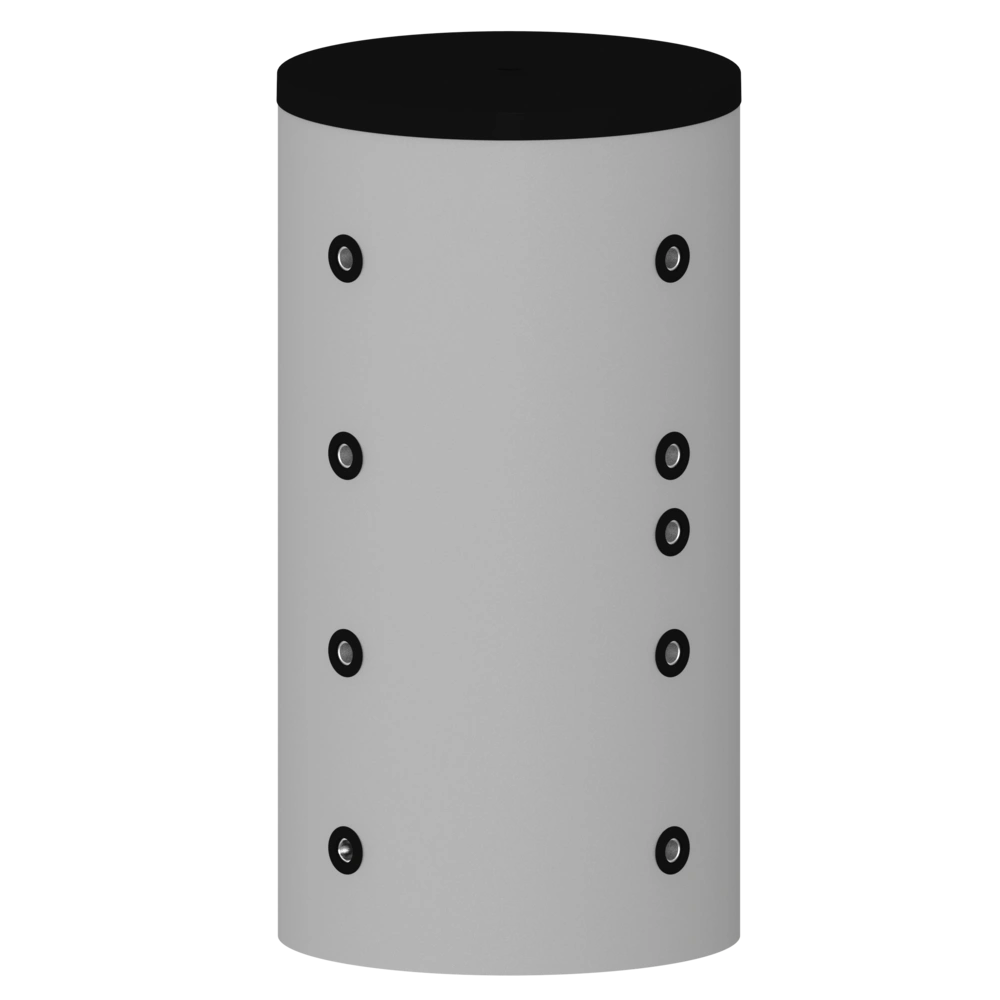

Buffer storage tank for cooling and heating 725 litres
Premium buffer storage tank that can be used for cooling and heating. To protect the surface from condensation during the cooling function, the cylinder is equipped with a special, high-quality anti-corrosion coating...
All product information
Delivery by forwarding agency
Ideal for heat and cold storage
36 months warranty
High Quality

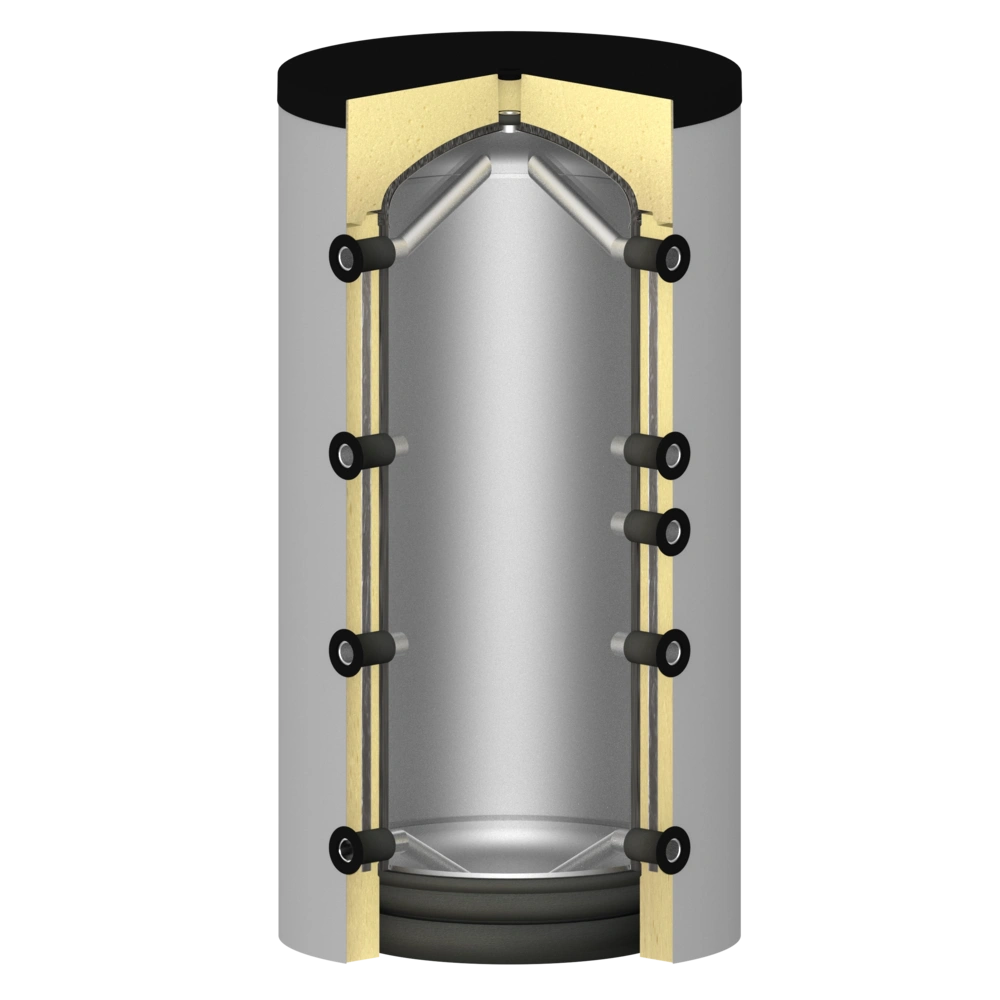

Premium buffer storage tank that can be used for cooling and heating. To protect the surface from condensation during the cooling function, the cylinder is equipped with a special, high-quality anti-corrosion coating. REVERSE+ storage tanks are ideal for the use in conjunction with a heat pump that is supposed for heating and cooling. Since condensation can form at low storage tank temperatures in conjunction with higher ambient temperatures, it is necessary to specially protect the system components involved. Accordingly, the surface of the REVERSE+ storage tanks is specially protected by the coating. OEG's high-quality A⁺ insulation ensures the lowest temperature losses also with these storage tanks.
For more information see Downloads
| OEG no. | 516005792 |
| Numberofsmooth-pipeheatexchangers: | 0 |
| Type: | PS 725-K |
| Installation type: | Vertical storage tank |
| Manufacturer | OEG |
| Brand | Reverse+ |
| Notes |
Delivery by forwarding agency
Ideal for heat and cold storage
36 months warranty
High Quality
|
| Customs tariff number | 84191900 |
General
| Rated volume according to EN 12897: | 725 |
| Colour: | silver |
| Insulation according to DIN 4102-1 Fire Protection Class B2: | permanently bonded Armaflex insulation and removable segment insulation |
| Weight [kg]: | 162 |
| Total height including insulation [mm]: | 1930 |
| Required height for cover assembly [mm]: | 2110 |
| Diameter without insulation [mm]: | 790 |
| Diameter with insulation [mm]: | 1015 |
| Tilt height [mm]: | 1900 |
| Heat retaining loss according to EN 12897 [W]: | 48 |
| Heat losses in stand-by mode according to DIN 12897 [kW/h / 24 h]: | 1,152 |
| Real volume according to EN 12897 [l]: | 724 |
| pmax Tank [bar]: | 3 |
| tmax Tank [°C]: | 95 |
| tmin Tank [°C]: | 10 |
| tmax Ambient air [°C]: | 30 |
| Max. rel. air humidity [%]: | 80 |
| Connection layout: | 90° |
| Connection sensor [Ø mm / terminal]: | 6 mm |
| Connection heat generator [thread]: | Rp 1 1/2" |
| Connection heating element [thread]: | Rp 1 1/2" |
| Max. immersion depth of screw-in heater [mm]: | 800 |
Hallo, bis zu welcher Größe können Sie Pufferspeicher liefern?
Standardmäßig haben wir den Pufferspeicher zum Kühlen und Wärmen bis zu einem Nennvolumen von 1.325 Liter.
Alle andere Volumen können dann über das Anfrageformular angefragt werden.
Bonjour Pouvez-vous me donner toutes les spécifications techniques de ce ballon, surtout le nombre de prises disponibles et leur section Merci d'avance
Merci de télécharger la fiche technique dans les Downloads. Vous trouvez le plan du ballon dans la notice d´installation à la page 26.
Graag technische fiche
Alle technische informatie van onze producten kunt u vinden op onze website.
Geef het betreffende artikelnummer in en klik op 'alle productinformatie'
Onderaan de tekst is vervolgens ook de mogelijkheid om alle beschikbare documenten te downloaden.
Hvad er diameteren på en 600 liters akkumuleringstank.? Er der et sted hvor man kan se diameter/højder på de forskellige tanke.?
Lagertanken har en diameter på 1.930 mm inklusive isolering og 790 mm uden isolering.
Du kan finde de forskellige mål på lagertankene enten i brugsanvisningen, i dette tilfælde på side 26, eller i de tekniske data for de enkelte artikler i webshoppen.
De tekniske data kan findes under "Matchende produkter" i fanen "Information".
Is de isolatie demontabel?
Ja, de warmteisolatie is demontabel. Het vat heeft zonder isolatie een diameter van 79 cm en past dus door een gewone kamerdeur.
