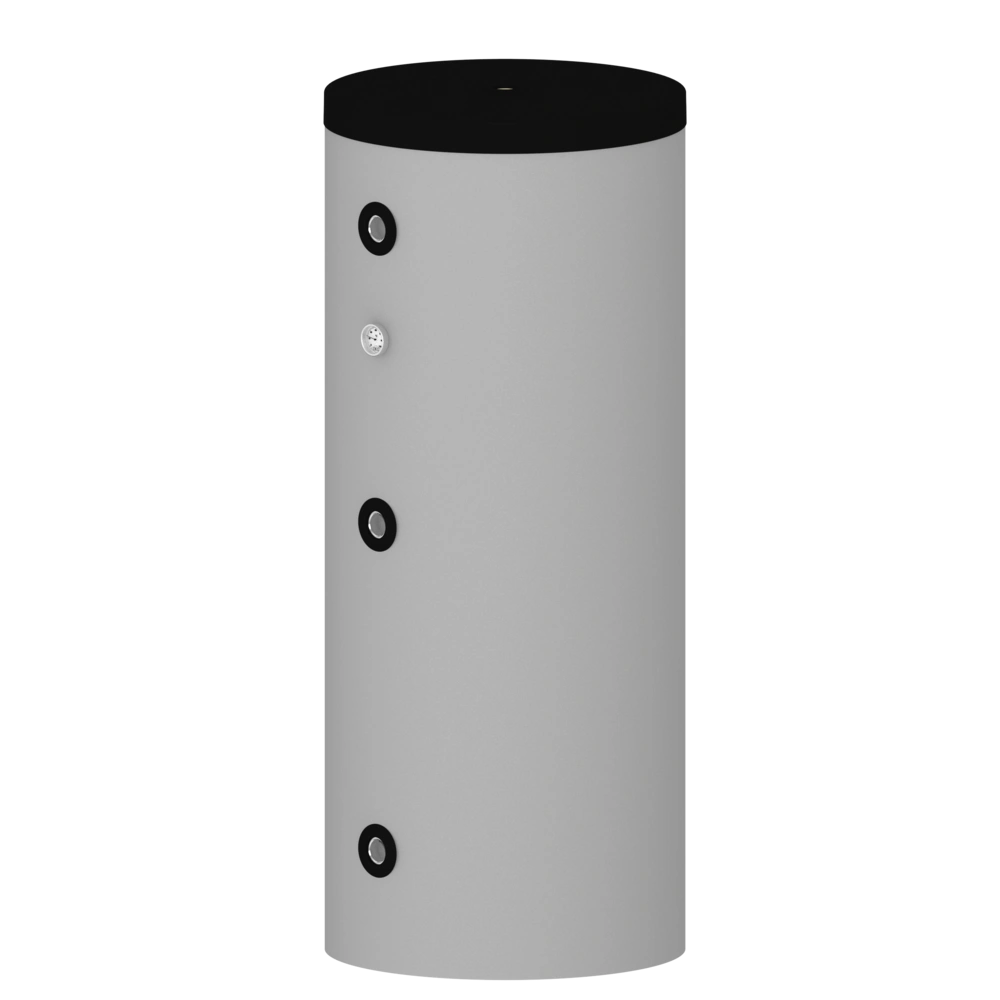

Buffer storage tank 400 litres
Premium buffer storage tanks for highest demands on heat storage and efficiency. Thanks to its highly efficient insulation, heat retention loss is significantly reduced compared to standard storage tanks...
All product information
Delivery by forwarding agency
High Quality
10-year warranty
TÜV Rheinland
Premium buffer storage tanks for highest demands on heat storage and efficiency. Thanks to its highly efficient insulation, heat retention loss is significantly reduced compared to standard storage tanks. The task of the buffer storage tank is to balance the difference between the heat generated and the heat consumed. In this way, the heat generators can be operated more independently of consumption.
For more information see Downloads
| OEG no. | 516008178 |
| Smooth-pipeheatexchanger: | 0 |
| Installation type: | Vertical storage tank |
| Manufacturer | OEG |
| Energy efficiency class | A+ |
| ErP-Label |
|
| Notes |
Delivery by forwarding agency
High Quality
10-year warranty
TÜV Rheinland
|
| Customs tariff number | 84191900 |
General
| Colour: | silver |
| Insulation according to DIN 4102-1 Fire Protection Class B2: | solid foamed insulation |
| Weight [kg]: | 88 |
| Total height including insulation [mm]: | 1725 |
| Diameter with insulation [mm]: | 710 |
| Tilt height [mm]: | 1865 |
| Energy efficiency class according to EU regulation no. 812/2013: | A+ |
| Heat retaining loss according to EN 12897 [W]: | 40 |
| Heat losses in stand-by mode according to DIN 12897 [kW/h / 24 h]: | 0,960 |
| TÜV certificate ID: | 0000080331 |
| Real volume according to EN 12897 [l]: | 419 |
| pmax Tank [bar]: | 3 |
| tmax Tank [°C]: | 95 |
| tmin Tank [°C]: | 20 |
| Connection layout: | 180° |
| Connection sensor [Ø mm / terminal]: | 6 mm |
| Connection heat generator [thread]: | R 1" |
| Connection heating element [thread]: | Rp 1 1/2" |
| Max. immersion depth of screw-in heater [mm]: | 600 |
Kan ik een technische tekening met aansluitingen en diameters van de aansluitingen van dit buffervat
Wij sturen u de informatie naar uw emailadres
Bonjour, est-ce que le couvercle existe en pièce détachée et si oui sous qu'elle référence je peux le commander. Merci par avance.
Bonjour,
Oui, le couvercle est disponible en pièce détachée.
Nous vous enverrons une offre de prix par mail.
Guten Tag, ist dieser Speicher emaliert oder ist er aus Stahl? Ode gar Edelstahl?
Guten Tag,
der Pufferspeicher besteht aus S235JR Stahl.
MitfreundlichenGrüßen
pouvez vous me donner la durée de la garantie de ce produit ainsi que la matière de la cuve?
Bonjour,
La garantie est de 10 ans.
Cordialement,
Votre équipe OEG
