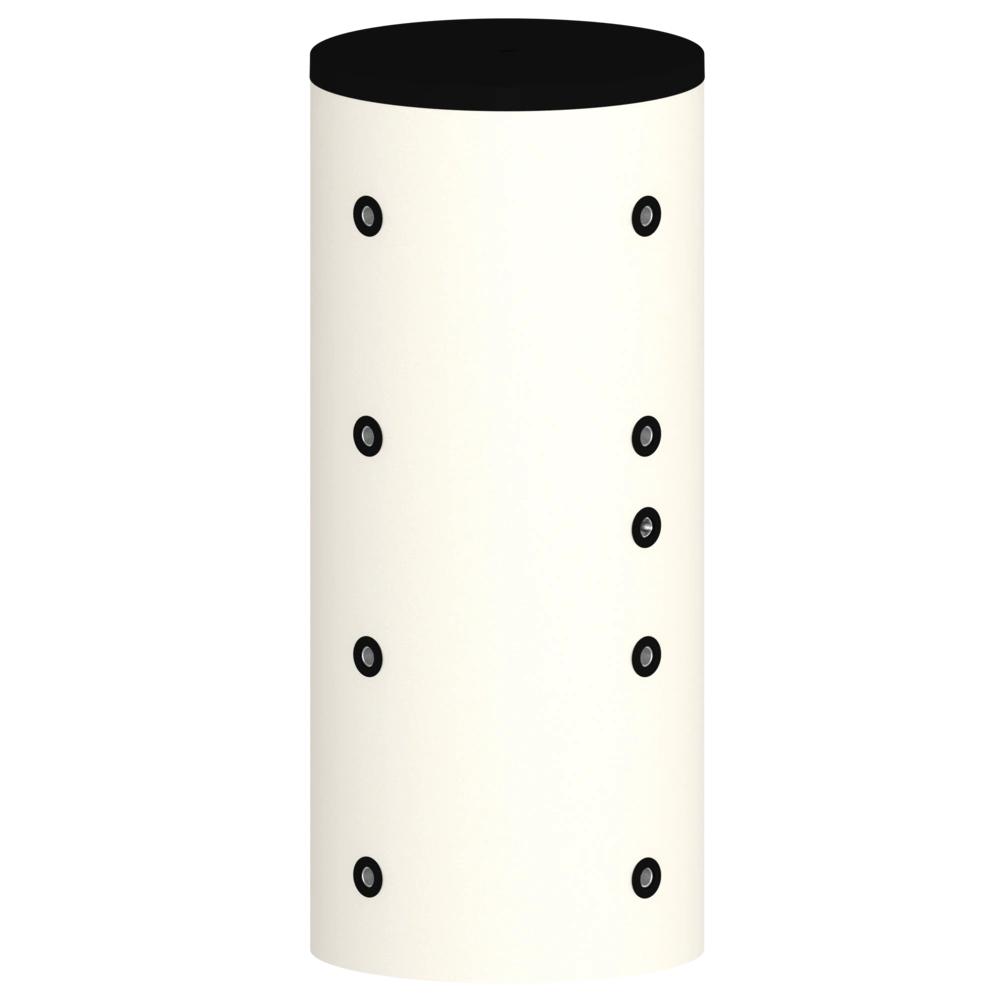

Buffer storage tank 1,000 litres
Premium buffer storage tanks for highest demands on heat storage and efficiency. Thanks to its highly efficient insulation, heat retention loss is significantly reduced compared to standard storage tanks...
All product information
High Quality
Delivery by forwarding agency
10-year warranty
TÜV Rheinland
Premium buffer storage tanks for highest demands on heat storage and efficiency. Thanks to its highly efficient insulation, heat retention loss is significantly reduced compared to standard storage tanks. The task of the buffer storage tank is to balance the difference between the heat generated and the heat consumed. In this way, the heat generators can be operated more independently of consumption.
For more information see Downloads
| OEG no. | 516008063 |
| Smooth-pipeheatexchanger: | 0 |
| Installation type: | Vertical storage tank |
| Manufacturer | OEG |
| Notes |
High Quality
Delivery by forwarding agency
10-year warranty
TÜV Rheinland
|
| Customs tariff number | 73090059 |
General
| Colour: | white |

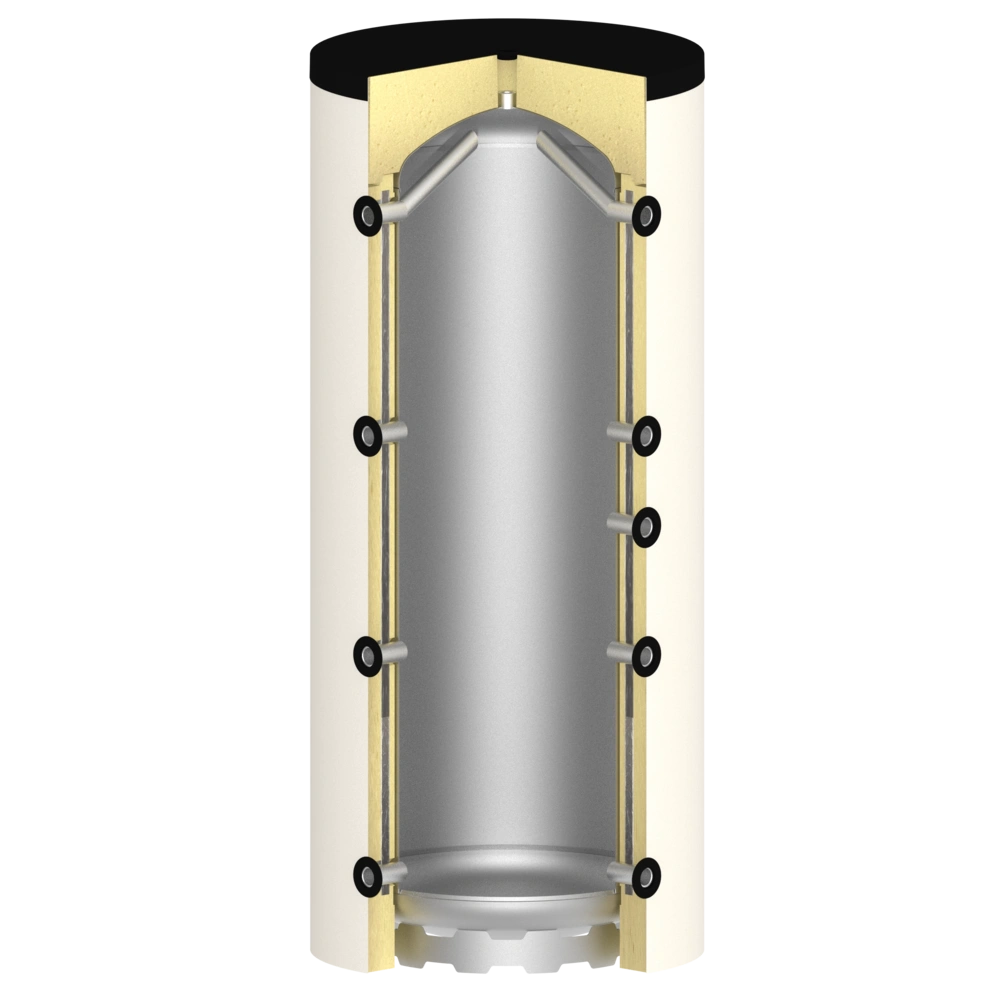

| Insulation according to DIN 4102-1 Fire Protection Class B2: | removable segment insulation |
| Weight [kg]: | 243 |
| Total height including insulation [mm]: | 2350 |
| Required height for cover assembly [mm]: | 2525 |
| Diameter without insulation [mm]: | 790 |
| Diameter with insulation [mm]: | 1015 |
| Tilt height [mm]: | 2280 |
| Energy efficiency class according to EU regulation no. 812/2013: | A+ |
| Heat retaining loss according to EN 12897 [W]: | 55 |
| Heat losses in stand-by mode according to DIN 12897 [kW/h / 24 h]: | 1,320 |
| TÜV certificate ID: | 0000080331 |
| Real volume according to EN 12897 [l]: | 999 |
| pmax Tank [bar]: | 3 |
| tmax Tank [°C]: | 95 |
| tmin Tank [°C]: | 20 |
| Connection layout: | 90° |
| Connection sensor [Ø mm / terminal]: | 6 mm |
| Connection heat generator [thread]: | Rp 1 1/2" |
| Connection heating element [thread]: | Rp 1 1/2" |
| Max. immersion depth of screw-in heater [mm]: | 800 |
wat is de maximale druk wat het vat aan kan ?
3 Bar , zie technische fiche van de boiler.
Kunnen deze vaten voor koeling worden gebruikt? Wat is minimum temperatuur voor deze vaten?
Deze vaten zijn niet geschikt voor koeling
You have to be logged in to ask a question
27/11/2014, 20:55:46 of: Mr Andreas Klugbauer
Okay
Guter Speicher zu einen guten Preis
