Fresh-water storage tank for highest demands on drinking water hygiene and energy efficiency.
The structure of the storage tank is fundamentally different from usual large-volume domestic hot-water tanks...
La consegna tramite l'azienda spedizioni
High Quality
Generazione d'acqua dolce in tubo corrugato in acciaio Inox secondo il principio di funzionamento dello scaldacqua
TÜV Rheinland
10 anni di garanzia
Fresh-water storage tank for highest demands on drinking water hygiene and energy efficiency.

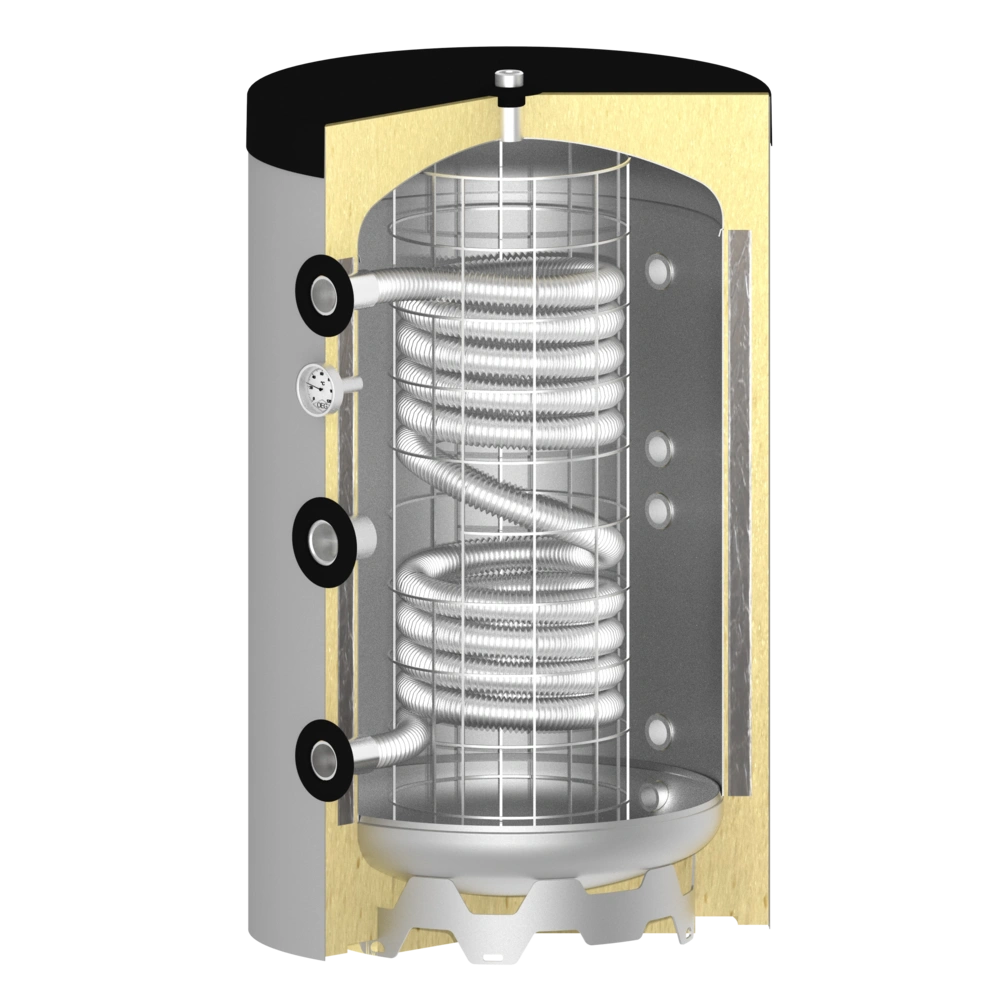

The structure of the storage tank is fundamentally different from usual large-volume domestic hot-water tanks. A built-in corrugated stainless steel pipe separates the drinking water from the heating water, while serving as a powerful heat exchanger at the same time. Thus, the advantages of a buffer tank are combined with those of a continuous flow water heater.
The heating water serves as actual heat storage while the drinking water flows through the corrugated stainless steel pipe only if required and, thus, a legionella-safe domestic water heating is ensured. You do not need a protection programme against legionella in the controller. At all times, the consumer is provided with hygienically clean, fresh water at the desired temperature.
Per ulteriori informazioni consultare Download
Codice OEG | 516008210 |
Scambiatoredicalore: | 0 |
Installation type: | Vertical storage tank |
Produttore | OEG |
Marchio | Pure+ |
Classe di efficienza energetica | A+ |
ErP-Label |
|
Avvisi | |
Codice doganale | 84191900 |
Capacità nominale a norma EN 12897: | 150 |
Colore: | silver |
Isolamento secondo la DIN 4102-1 con classe di protezione antincendio B2: | solid foamed insulation |
Peso [kg]: | 53 |
Altezza totale con isolamento [mm]: | 1020 |
Diametro con isolamento [mm]: | 610 |
Misura diagonale [mm]: | 1170 |
Classe di efficienza energetica conforme al regolamento UE numero 812/2013: | A+ |
Perdita termica secondo EN 12897 [W]: | 28 |
Perdite di calore in stand-by secondo la norma EN 12897 [kWh/24h]: | 0,672 |
Portata (45 °) [l]: | 85 |
Coefficiente di resa termica a norma DIN 4708: | 1 |
Volume effettivo conforme alla norma EN 12897 [l]: | 157 |
pmax Serbatoio [bar]: | 3 |
tmax Serbatoio [°C]: | 95 |
tmin Serbatoio [°C]: | 20 |
Scambiatore di calore per acqua potabile [m²]: | 1,90 |
Scambiatore di calore per acqua potabile volume [l]: | 8,20 |
pmax Scambiatore di calore per acqua potabile [bar]: | 6 |
tmax Scambiatore di calore per acqua potabile [°C]: | 95 |
Provvedimento di raccordi: | 180° |
Raccordo sonda [Ø mm / morsetto]: | 6 mm |
Attacchi per prelievo acqua calda/fredda: | R 1 1/4" |
Raccordo generatore di calore [filettatura]: | R 1" |
Raccordo resistenza elettrica [filettatura]: | Rp 1 1/2" |
Riscaldatore a vite con profondità massima a immersione [mm]: | 400 |
The tank is made of S235JR steel and is not treated.
Warmtepompboilers (zie pagina 1112) hebben een groot warmtewisselaar oppervlak nodig aangezien de aanvoertemperatuur van een warmtepomp lager ligt. Wanneer u toch gebruik wenst te maken van een hygienboiler raden wij een HSP2 aan.
Deze boiler beschikt over een RVS tapwaterspiraal en twee buiswarmtewisselaars.
U zou deze in serie kunnen schakelen om zo een groter warmtewisselaar oppervlak te creeeren.
