OEG no. : 516001248
Related products
The Zilmet solarplus diaphragm expansion vessel is certified according to the European Pressure Equipment Directive 97/23/EC and DIN EN 13831. The vessel is used in closed solar energy heating systems...
All product informationRelated products
CE

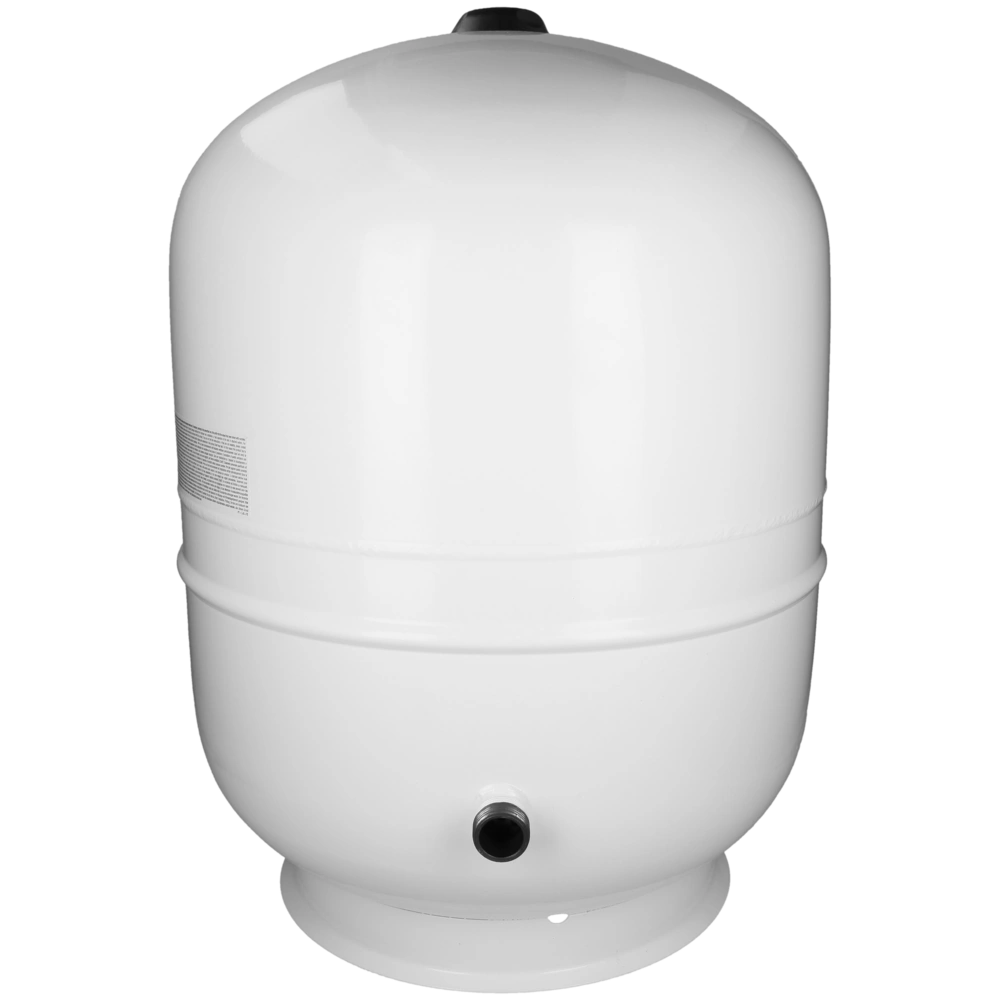

The Zilmet solarplus diaphragm expansion vessel is certified according to the European Pressure Equipment Directive 97/23/EC and DIN EN 13831. The vessel is used in closed solar energy heating systems according to DIN EN 12976 and ENV 12977 (DIN 4757). The vessel is equipped with a ZILAN HT membrane, certified according to DIN EN 13831. The vessel sizes 35 and 50 litres have feet for quick assembly and vessels from 80 litres will be delivered with a foot rim.
Technical data:
- completely welded construction
- maximum system operating temperature: -10° C up to +120° C
- maximum membrane operating temperature: +110° C
- solar medium: suitable up to 70%
- with EC technical release certificate
- connection: 1"
- diameter: 450 mm
- height: 608 mm
For more information see Downloads
| OEG no. | 516001248 |
| Type: | Solarplus |
| Capacity [l]: | 80 |
| Operating pressure max. [bar]: | 10 |
| Connection size [inch]: | 1 |
| Length x Diameter [mm]: | 608 x 450 |
| Standard: | EN 12976, EN 13831, ENV 12977 |
| Operating temperature max. [°C]: | 110 |
| Membrane: | Fixed |
| Pre-charge pressure [bar]: | 2.5 |
| Manufacturer | Zilmet |
| Manufacturer number | 11A2008019 |
| Weight [kg] | 8.37 |
| Notes |
CE
|
| Customs tariff number | 84798997 (IT) |
Question:
Beste, wat zijn de maten van dit vat ?
Answer OEG:
- Aansluiting 1"
- Diamter: 450 mm
- Hogte: 608 mm
