The Zilmet Solar-Plus diaphragm expansion vessel has been certified in accordance with the pressure equipment directives 97/23/EC and DIN EN 13831. It is used in closed solar energy heating systems...
All product informationCE
Delivery by forwarding agency

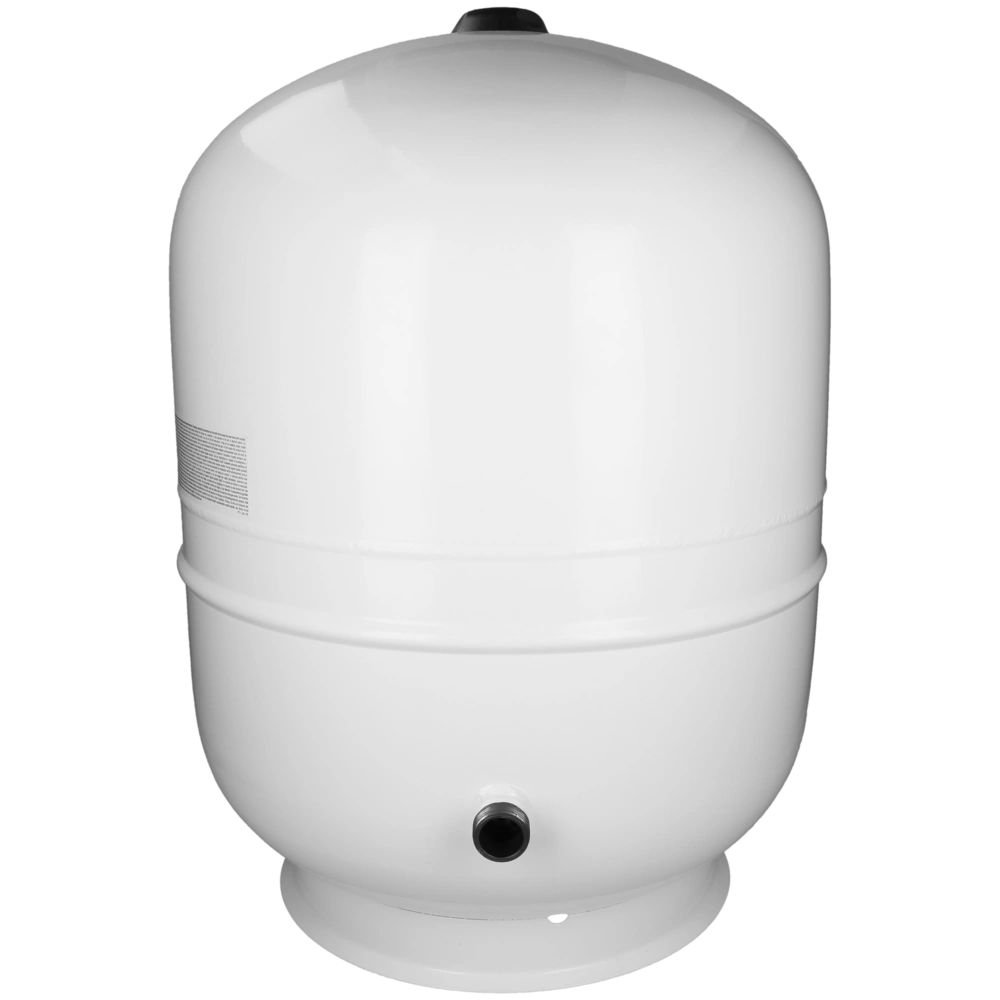

The Zilmet Solar-Plus diaphragm expansion vessel has been certified in accordance with the pressure equipment directives 97/23/EC and DIN EN 13831. It is used in closed solar energy heating systems according to DIN EN 12976 and ENV 12977 (DIN 4757). The vessel is equipped with a ZILAN HT diaphragm certified in accordance with DIN EN 13831, the sizes 35 litres and 50 litres feature standing-feet for quick-mounting and tanks from 80-litre upwards are delivered with a foot rim.
Technical data:
- completely welded construction
- maximum system temperature: -10° C up to +120° C
- maximum continuous diaphragm temperature: +110° C
- solar medium: suitable up to 70%
- with EC type examination certificate
- connection: 1"
- diameter: 630 mm
- height: 812 mm
For more information see Downloads
OEG no. | 516001282 |
Type: | Solarplus |
Capacity [l]: | 200 |
Operating pressure max. [bar]: | 10 |
Connection size [inch]: | 1 |
Length x Diameter [mm]: | 812 x 630 |
Standard: | EN 12976, EN 13831, ENV 12977 |
Operating temperature max. [°C]: | 110 |
Membrane: | Fixed |
Pre-charge pressure [bar]: | 2.5 |
Manufacturer | Zilmet |
Manufacturer number | 11A2020000 |
Weight [kg] | 32.8 |
Notes |
CE Delivery by forwarding agency |
Customs tariff number | 84798997 (IT) |
