This system is the entry model to water-softening technology. Proper limescale protection is necessary for the hygiene in drinking water installations. But even more, water-softening systems contribute...
All product information Scope of deliverycertified by DVGW

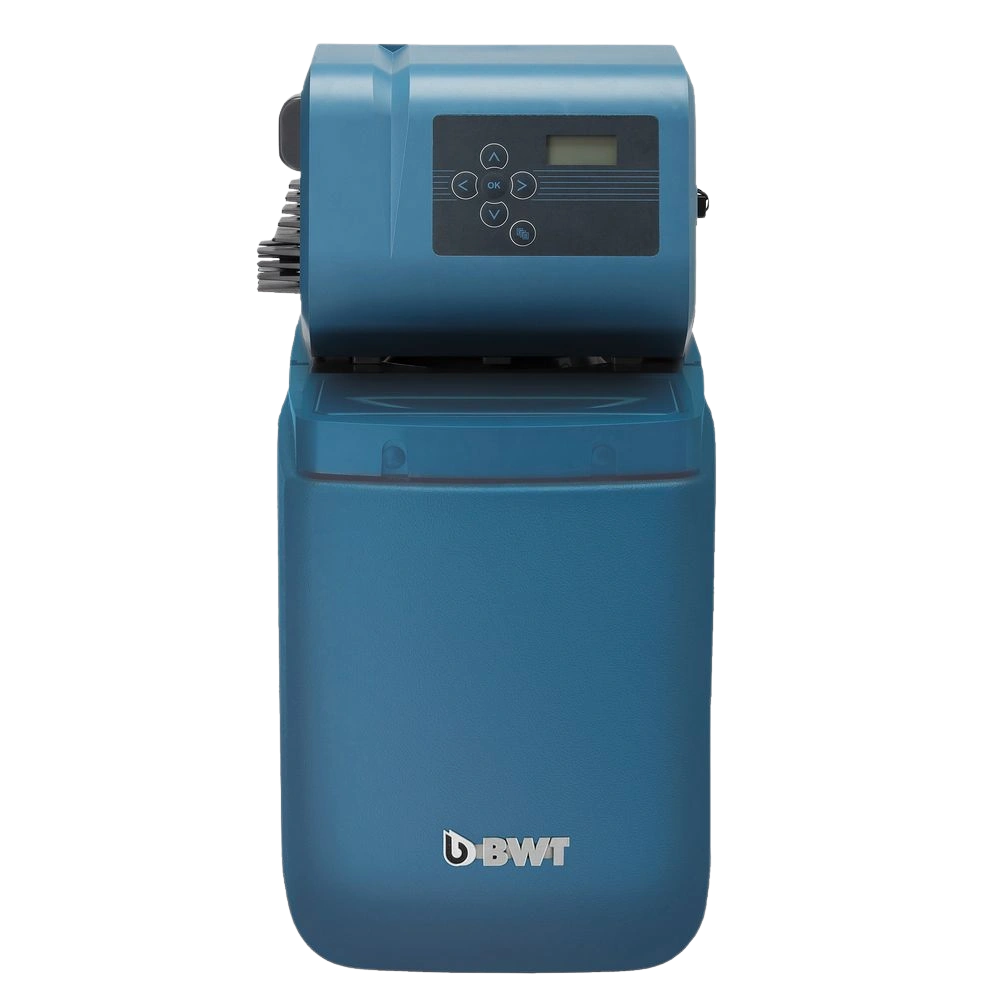

This system is the entry model to water-softening technology. Proper limescale protection is necessary for the hygiene in drinking water installations. But even more, water-softening systems contribute to your wellbeing and to the preservation of materials. A water softener can extend the life of sanitary installations and domestic appliances significantly, while maintenance effort and energy consumption are reduced.
Scope of delivery: | |||
1 x | water softening system | ||
1 x | connection set DN32/32 | ||
1 x | Fastening material | ||
1 x | AQUAtest hardness tester |
For more information see Downloads
OEG no. | 821001183 |
Nominal pressure PN [bar]: | 10 |
Nominal size [DN]: | 32 |
Voltage [V]: | 230 ~ |
Connection: | 1 1/4" ET |
Flow rate [m³/h]: | 1.6 |
Protection type [IP]: |
IP53 |
Length x Width x Height [mm]: | 530 x 290 x 495 |
Ambient temperature [°C]: | 40 |
Operating pressure [bar]: | 2.5 .. 8 |
Media temperature max. [°C]: | 30 |
Manufacturer | BWT |
Manufacturer number | 11350 |
EAN | 4050808113507 |
Weight [kg] | 20 |
Notes |
certified by DVGW |
Customs tariff number | 84212980 |
Bonjour,
L'adoucisseur d'eau Basic a l'indicateur de service toutes les 150 régénérations. Cela signifie que le système doit être entretenu et nettoyé.
Vous pouvez réinitialiser le compteur en appuyant simultanément sur les flèches GAUCHE DROIT et BAS pendant 5 secondes.
Bonjour,
La cartouche de résine a un volume de 7 litres. Pour combien de personnes cela suffit, on ne peut pas le dire, mais la quantité maximale d'eau qui peut être régénérée est de 18°dh. Il faudrait convertir cela en dureté française. Nous pensons que 1°dH correspond à1,78°fH. Il faut le supposer pour la conversion, parce qu'elle a une configuration allemande.
Cordialement,
Votre équipe OEG
