High-quality underfloor heating manifold with flow and return manifold bar mounted on two metal brackets. The return manifold is equipped with shut-off valves prepared for electrothermal control. The flow manifold bar has a return lockshield...
All product informationRelated products

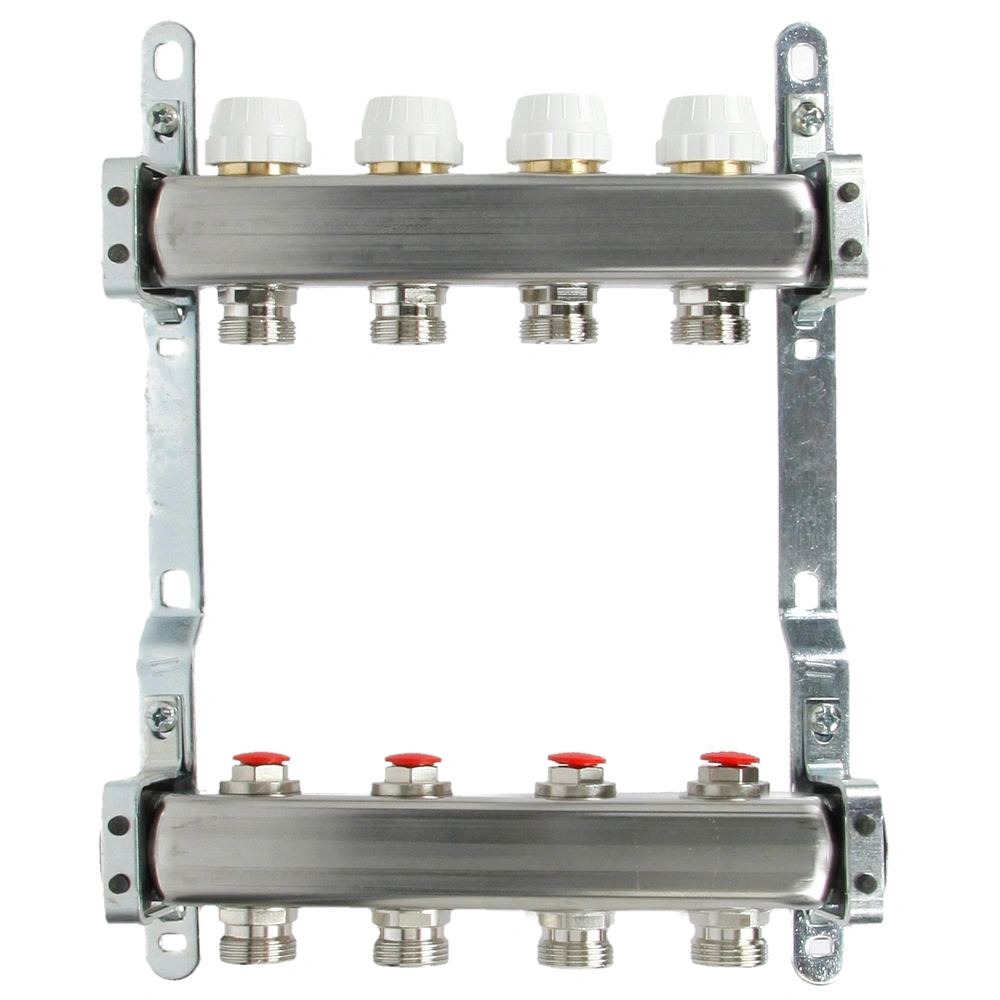

High-quality underfloor heating manifold with flow and return manifold bar mounted on two metal brackets. The return manifold is equipped with shut-off valves prepared for electrothermal control. The flow manifold bar has a return lockshield.
For more information see Downloads
| OEG no. | 512003110 |
| Thread: | ISO 228 |
| Material: | Stainless steel |
| Total length [mm]: | 243 |
| Connection: | 1" IT |
| Axial dimension: | 50 |
| Connection heating circuit: | 3/4" Euro cone |
| Number of heating circuits: | 4 |
| Valve connection: | M30 x 1.5 |
| Pressure max. [bar]: | 10 |
| Operating temperature max. [°C]: | 70 |
| Manufacturer | Itap |
| EAN | 8023298050436 |
| Weight [kg] | 3.4 |
| Customs tariff number | 73079980 |
