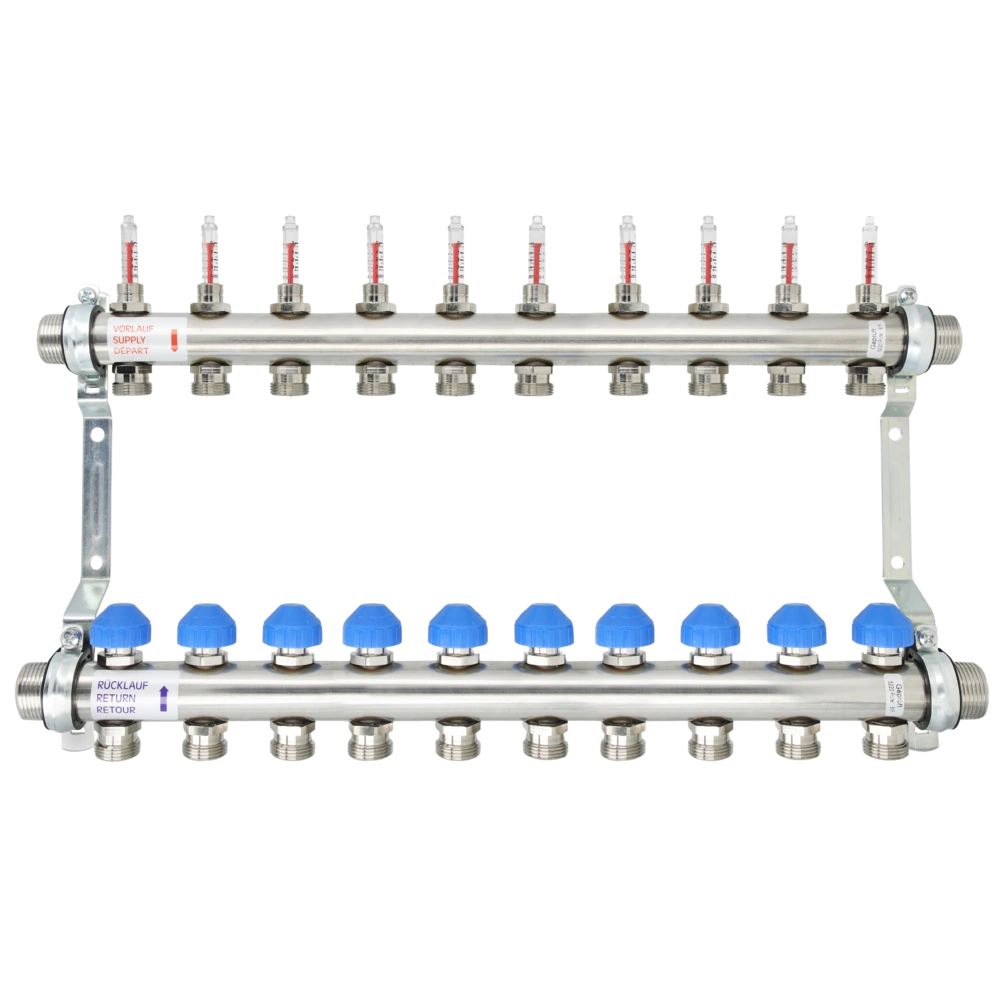

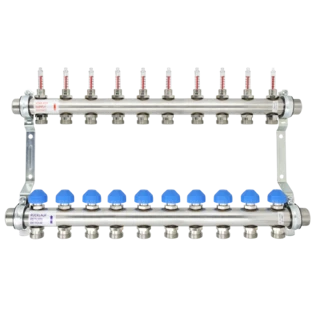

Underfloor heating manifold 10 circuits 1" with flow meters

OEG no.: 512003966
  • Also replaces
    schließen Also replaces:
    • 512003640 (Underfloor heating manifold 10 circuits with top meter)
    • 512003944 (Underfloor heating manifold 10 circuits 1" stainless steel incl. connection set)
Zoom Underfloor heating manifold 10 circuits 1" with flow meters
OEG no. : 512003966

Stainless steel heating manifold with flow indication 0 - 4 l/min. for the distribution and adjustment of the volumetric flow in surface heatings and surface coolings. The manifold consists of a return...

All product information Scope of delivery
Related products
SilverTec

SilverTec

SilverTec
Wipe 'n' Buy ®
Wipe 'n' Buy

Stainless steel heating manifold with flow indication 0 - 4 l/min. for the distribution and adjustment of the volumetric flow in surface heatings and surface coolings. The manifold consists of a return line with regulating and shut-off valves and a supply line with closable flow meters having particularly low pressure loss. It is supplied ready-mounted on a wall bracket.


Scope of delivery:
1 xheating manifold
1 xWall bracket

For more information see Downloads


OEG no. 512003966
Material: Stainless steel
Total length [mm]: 560
Axial dimension: 50
Connection heating circuit: 3/4" Euro cone
Operating temperature [°C]: -10 .. 90
Valve connection: M30 x 1.5, 3/8"
Number of heating circuits: 10
Pressure max. [bar]: 10
Connection heat generator: 1" ET
Manufacturer OEG
Brand SilverTec®
EAN 4055668014810
Also replaces
  • 512003640 (Underfloor heating manifold 10 circuits with top meter)
  • 512003944 (Underfloor heating manifold 10 circuits 1" stainless steel incl. connection set)
Weight [kg] 8.5
Notes
SilverTec

SilverTec

SilverTec
Customs tariff number 73079980 (IT)
