The thermocouple is part of the thermoelectric flame failure device which prevents the escape of unburnt gas in case of failure. This is achieved by the thermoelectric characteristic of the thermocouple...
All product information Scope of deliveryThe thermocouple is part of the thermoelectric flame failure device which prevents the escape of unburnt gas in case of failure. This is achieved by the thermoelectric characteristic of the thermocouple and the holding characteristic of the magnetic unit inside the gas safety valve.
Technical features:
• Switching times: opening 1 to 3 seconds, closing 60 to 90 seconds
• Max. tightening torque: 3 Nm
• Voltage yield: approx. 5.5 mV / +100 °C, max. approx. 30 mV
• Max. temperature at the tip: approx. 650 °C
• Max. temperature hard soldering point: approx. 400 °C
• Max. temperature soft soldering point: approx. 220 °C
• Materials: positive leg Ni90Cr10, negative leg constantan
• 11/32" screw connection

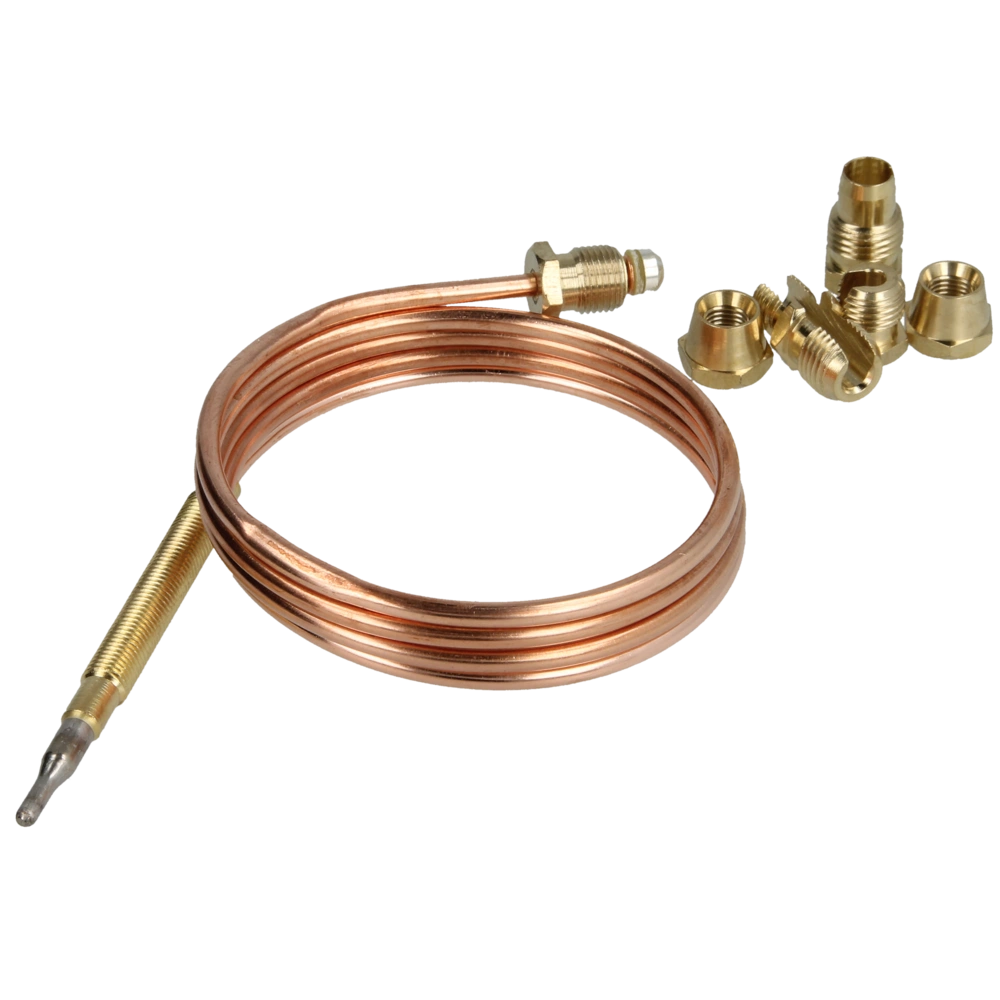

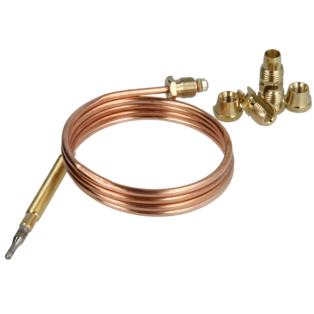

Scope of delivery: | |||
1 x | thermocouple | ||
6 x | adapter |
For more information see Downloads
OEG no. | 133466000 |
Length [mm]: | 600 |
Weight [kg] | 0.05 |
Customs tariff number | 90251900 (ES) |
