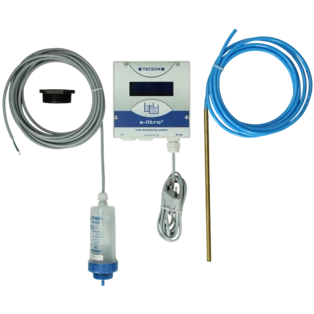

Tecson e-Litro tank level display device

The electronic level indicator for oil tanks and other containers with a volume of up to 10,000 litres.

This device is particularly suitable for domestic areas as it provides a very high functionality at a comparatively low price.

The e-litro consists of a pneumatically measuring probe, combined with a digital display device.

During the installation the device will be set once and menu driven via three operating keys.

The device set is especially recommended for simple retrofitting of oil tanks in buildings and for easy conversion of underground tanks to tanks with a pneumatically measuring electronic indicator.

Technical data:

- container sizes: for tank systems up to max. 10,000 litres total volume

- supply voltage: 230 V AC, via net plug

- measurement range: 0 - 250 mbar (=0 - 25 kPa)

  max. 2.50 m water column

  max. 2.90 m heating oil/diesel fuel

- measurement signal of the probe: 4 - 20 mA, two-conductor principle,

  auxiliary voltage 10 - 28 V dc.

  Measuring lead of the probe is extendable up to 100 m.

- measurement error: the LITRO probe delivers measured values with

  errors smaller than 1 - 2 % of the end value.

- field of application: storage tanks for heating oil and diesel, as well as

  water cisterns.

- connection/access: The LITRO probe has a G 1" ET screw-in thread

  plus reducing ring for G 1.5 ET.

  As an alternative and in case of plastic tanks, an 8-mm hole can be

  drilled through the connection plate of the tank fitting.

- measuring hose: PUR measuring hose with d=6 mm, with sinking ballast

  by means of a brass sleeve d=8mm.

  In case of an underground tank extendable to max. 40 m.

- protection class housing: IP 30

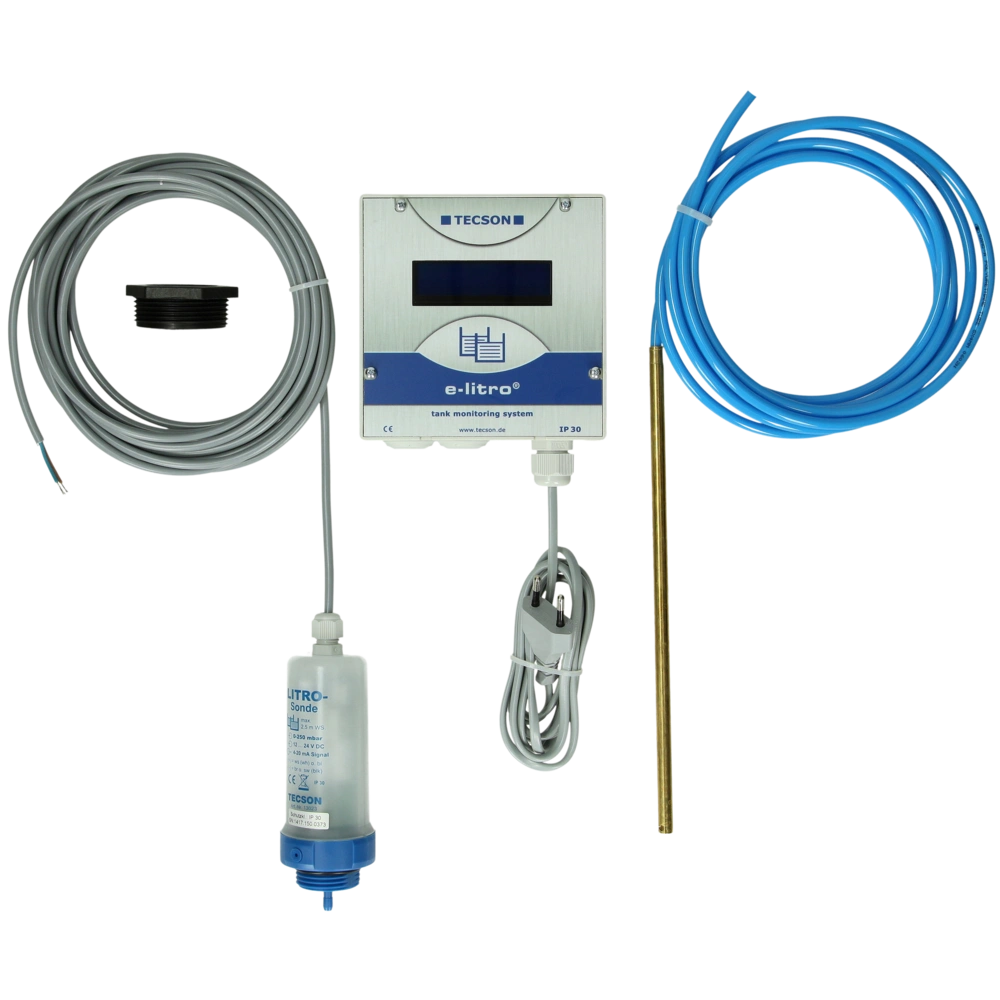

Scope of delivery:

- display unit

- LITRO probe

- assembly accessories

- mounting instruction and operating instruction

For more information see Downloads
