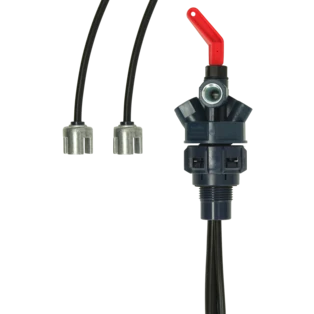

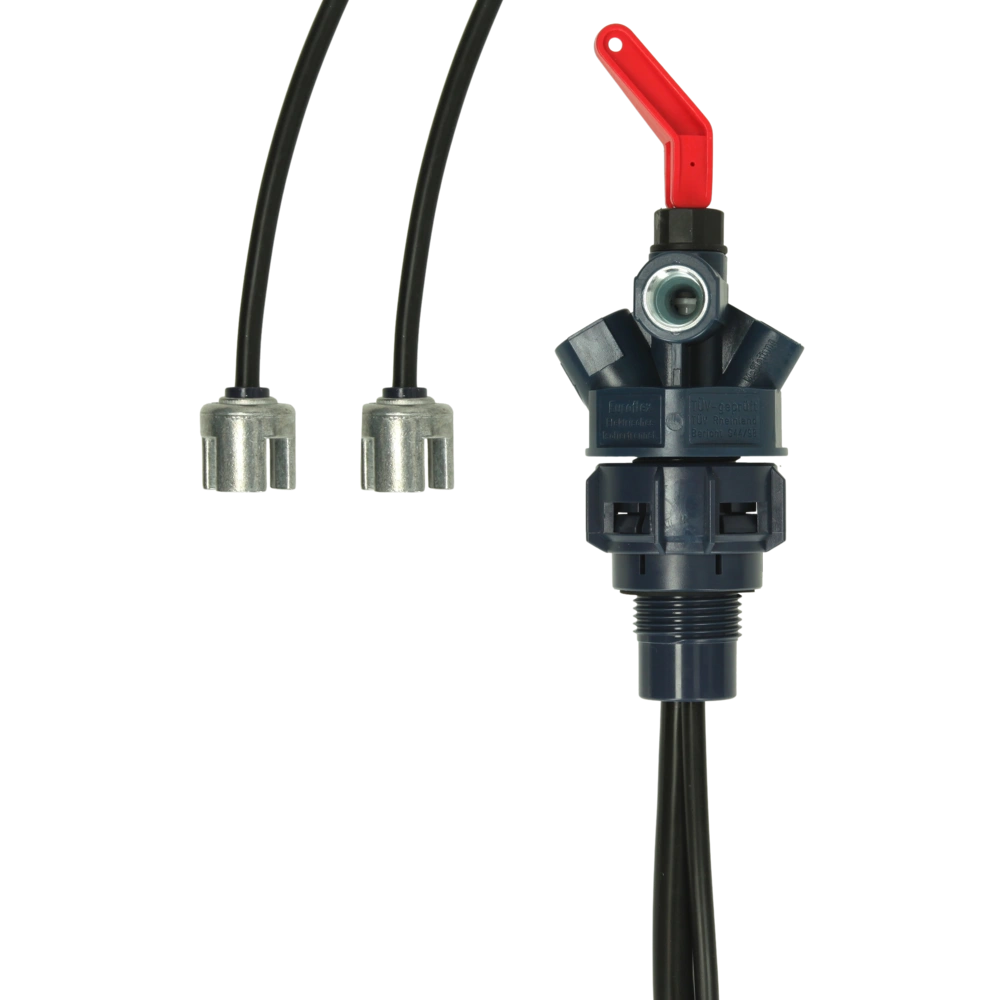

Tank withdrawal system Euroflex 3 hose length 3,150 mm 20164

OEG no.: 118303457
Zoom Tank withdrawal system Euroflex 3 hose length 3,150 mm
OEG no. : 118303457

Combination fitting Euroflex for the withdrawal of fuel oil or diesel duel. This is possible in single-line or dual-line mode from underground and above-ground tanks.
The fitting is suitable for...

All product information Scope of delivery
Related products
Wipe 'n' Buy ®
Wipe 'n' Buy

Combination fitting Euroflex for the withdrawal of fuel oil or diesel duel. This is possible in single-line or dual-line mode from underground and above-ground tanks.
The fitting is suitable for the media fuel oil EL (DIN 51603-1), diesel fuel (EN 590), biofuel and biodiesel with max. 20% FAME. It can be used in areas liable to flooding.
Suction and return lines are connected via G 3/8" stainless steel threaded bushes. Euroflex also includes universal compression fittings for pipes with 8 and 10 mm outside diameters. The integrated check valve with elastic valve seat prevents the oil column in the suction line from being interrupted when the burner is off. The quick-action shut-off valve is fitted with a lever for remote closing in emergency situations. The combination fitting is pressure- and vacuum-tight up to 1 bar.




Scope of delivery:
1 xOil-draining facility with rocker arm
1 xUniversal compression fittings for pipes Ø 8/10 mm

For more information see Downloads


OEG no. 118303457
Type: Euroflex 3 with measuring line
Flow rate [l/h]: 150
Application: also for bio-fuel B20
Connection: 3/8" IT
Standard: EN 13616
Hose length [mm]: 3,150
Pressure max. [bar]: 6
Manufacturer Afriso
Manufacturer number 20164
Weight [kg] 0.73
Customs tariff number 84818099
