Tank withdrawal system Euroflex 3 hose length 2.15 m 20160

OEG no.: 118303450

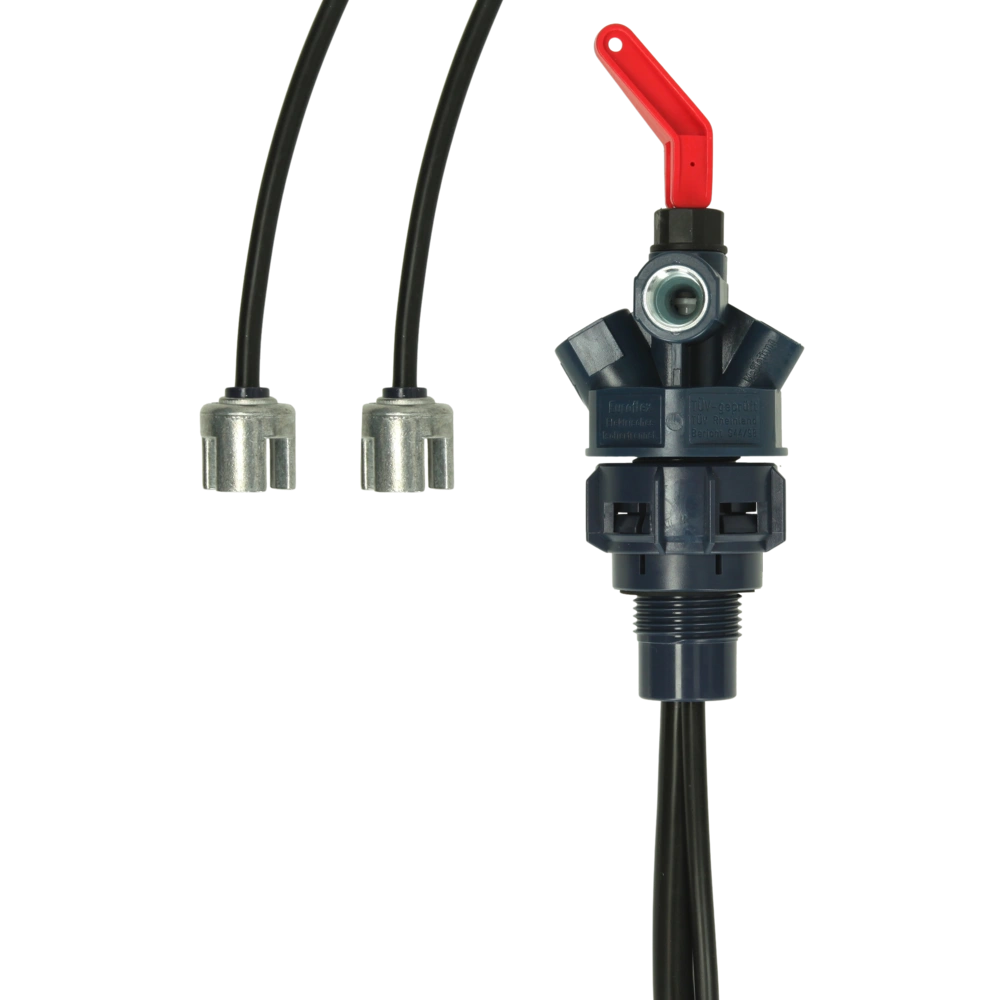

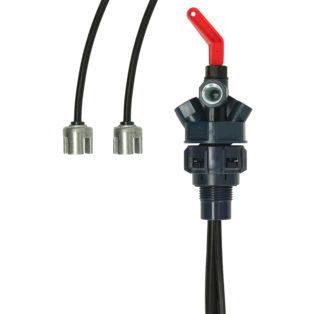

Zoom Tank withdrawal system Euroflex 3 hose length 2.15 m
OEG no. : 118303450

Combination fitting Euroflex for the withdrawal of heating oil from underground and aboveground tanks in one- or two-pipe operation. It is suitable for the following media: heating oil EL DIN 51603-1,...

All product information Scope of delivery
Related products
Wipe 'n' Buy ®
Wipe 'n' Buy

Combination fitting Euroflex for the withdrawal of heating oil from underground and aboveground tanks in one- or two-pipe operation. It is suitable for the following media: heating oil EL DIN 51603-1, diesel fuel EN 590, biofuel EN 14213 and biodiesel EN 14214. The integrated check valve with elastic valve seat prevents the oil column in the suction line from being interrupted when the burner is off. The quick-action shut-off valve is provided with a toggle lever for remote closing in emergency situations. Supplied with intgrated measuring line and connection for a pneumatic level indicator (e.g. Unitel, Unitop or DTA).


Scope of delivery:
1 xOil-draining facility with rocker arm
1 xUniversal compression fittings for pipes Ø 8/10 mm

For more information see Downloads


OEG no. 118303450
Type: Euroflex 3 with measuring line
Flow rate [l/h]: 150
Application: also for bio-fuel B20
Connection: 3/8" IT
Standard: EN 13616
Hose length [mm]: 2,150
Pressure max. [bar]: 6
Manufacturer Afriso
Manufacturer number 20160
Weight [kg] 0.61
Customs tariff number 84818099
