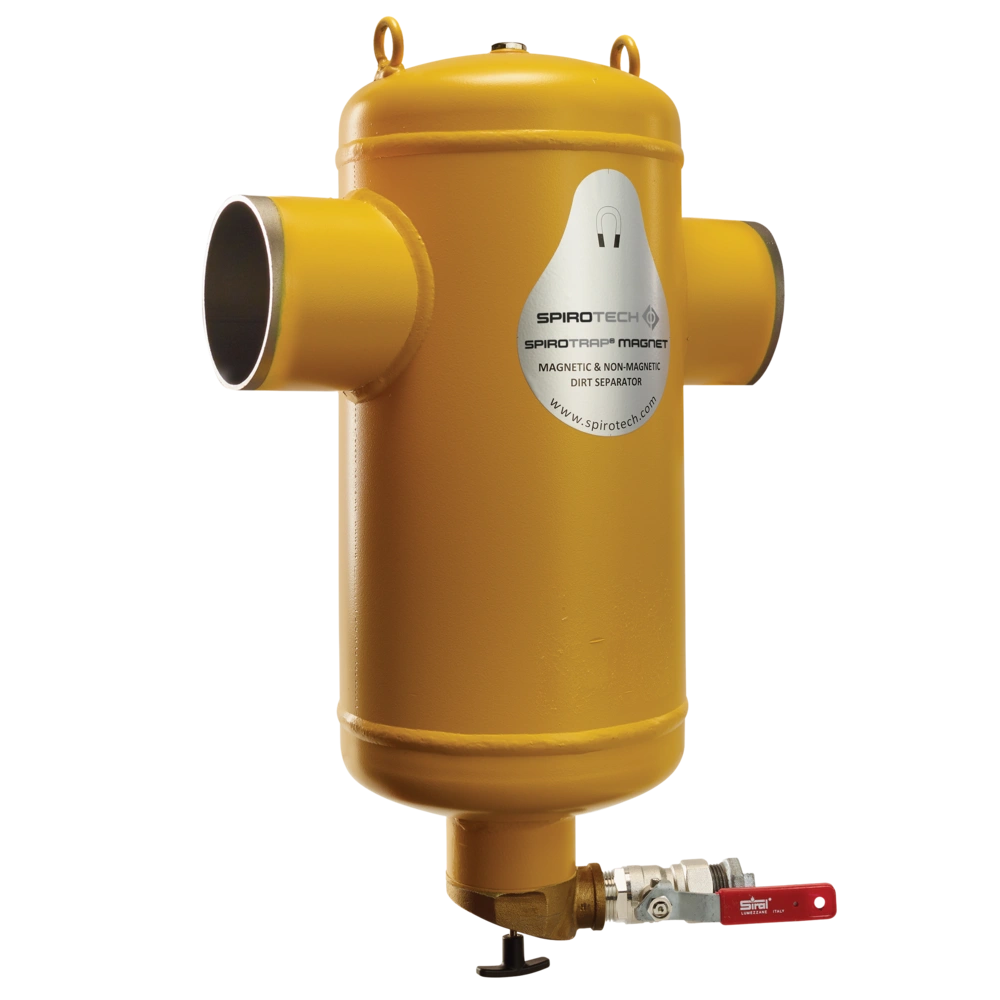

Effective dirt separator for removing both magnetic and non-magnetic dirt particles from heating systems. The magnet with the special magnetic field booster technology creates a greatly enlarged magnetic field and clearly directs its magnetic force inwards. Dirt particles are drained effectively while the system is in operation. Additionally, SpiroTrap is amazing due to its Spirotube® for optimal separation of the particles and high collecting capacity. Thus, the pump and system parts are protected efficiently. Spirotrap should be installed horizontally at the hottest place of the respective system.
For more information see Downloads
| OEG no. | 512234456 |
| Material: | Steel |
| Mounting type: | Welded connection |
| Connection size: | DN65 |
| Operating pressure max. [bar]: | 10 |
| Temperature max. [°C]: | 110 |
| Flow rate [m³/h]: | 20 |
| Length [mm]: | 260 |
| Height [mm]: | 471 |
| Diameter [mm]: | 159 |
| Manufacturer | Spirotech |
| Manufacturer number | BE065LM |
| EAN | 8717811021262 |
| Weight [kg] | 8 |
| Customs tariff number | 84212100 |
