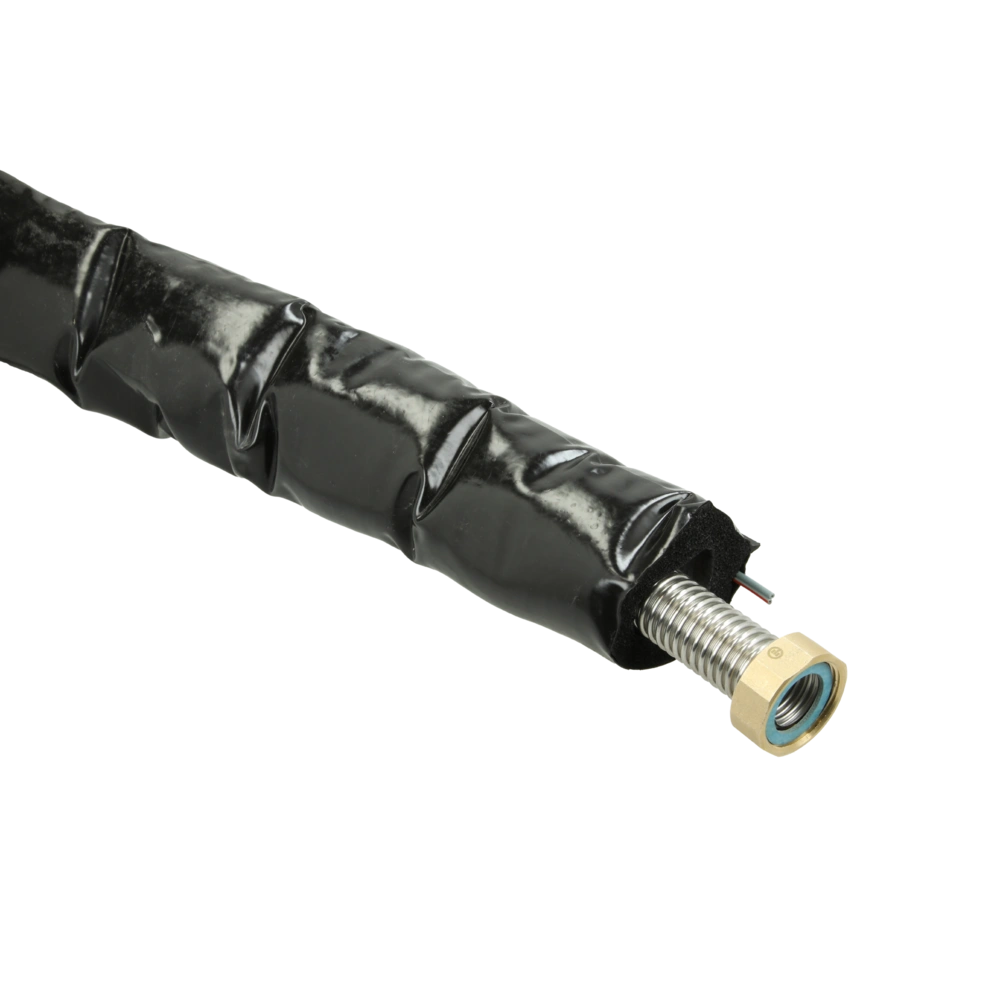

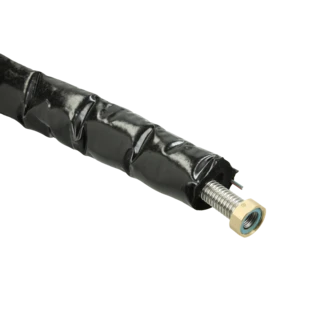

The OEG corrugated single stainless steel pipe has been developed specifically for the use in solar systems. Together with a sensor cable, it is insulated by an effective HT jacket. The use of high-grade stainless steel (V4A) allows the corrugated pipe to be used for multiple applications in the private, commercial and industrial sector subject to applicable regulations.
Advantages of the new insulation:
- robust outer insulating jacket made of multi-layered, waterproof polyethylene (PE)
- high-grade, dimensionally stable and flexible insulation made of waterproof, synthetic rubber (EPDM), the insulation thickness can also be kept largely constant with bends
- excellently low water absorption of ≤5 % of EPDM
- easy and fast processing (mostly a cutter knife is enough) and laying
- excellent aging resistance
- low thermal conductivity ( 0.045 W/mk)
- temperature resistance permanently up to +150 °C (short-term up to +170 °C)
- good UV stability as well as weather and ozone resistance
- high chemical resistance
- good sound reduction
- Fire Protection Class B2
- control cable integrated in the insulation
- valued appearance
For more information see Downloads
| OEG no. | 516002934 |
| PU | 5 metres |
| Type of connection: | union nut |
| pmax Corrugated pipe [bar]: | 6 |
| tmax Corrugated pipe [°C]: | 150 |
| Nominal size: | DN25 |
| Thermal conductivity of insulation (at 40°) [W/mk]: | 0,045 |
| Insulation thickness [mm]: | 13 |
| Internal diameter [mm]: | 25 |
| Outer diameter [mm]: | 61 |
| Liquid content [l/m]: | 0,65 |
| Sound insulation: | up to 30dB |
| Manufacturer | OEG |
| Weight [kg] | 1 |
| Notes |
Made by OEG
|
| Customs tariff number | 83071000 |
