System for the transformation of dissolved salt into active chlorine in the pool water. With additional pH-value regulation. Reliable water disinfection without adding any chemical products. Stops the...
All product information Scope of deliveryRelated products
CE
System for the transformation of dissolved salt into active chlorine in the pool water. With additional pH-value regulation. Reliable water disinfection without adding any chemical products. Stops the spreading of bacteria and microorganisms in an environment-friendly way and without causing eye irritations. The crystal-clear pool water feels pleasantly soft and is gentle to your skin. The transformed salt is tasteless.

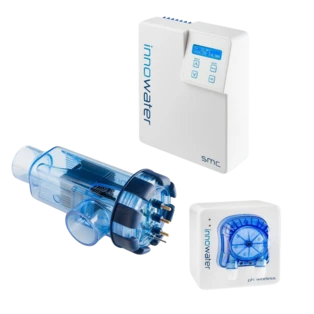

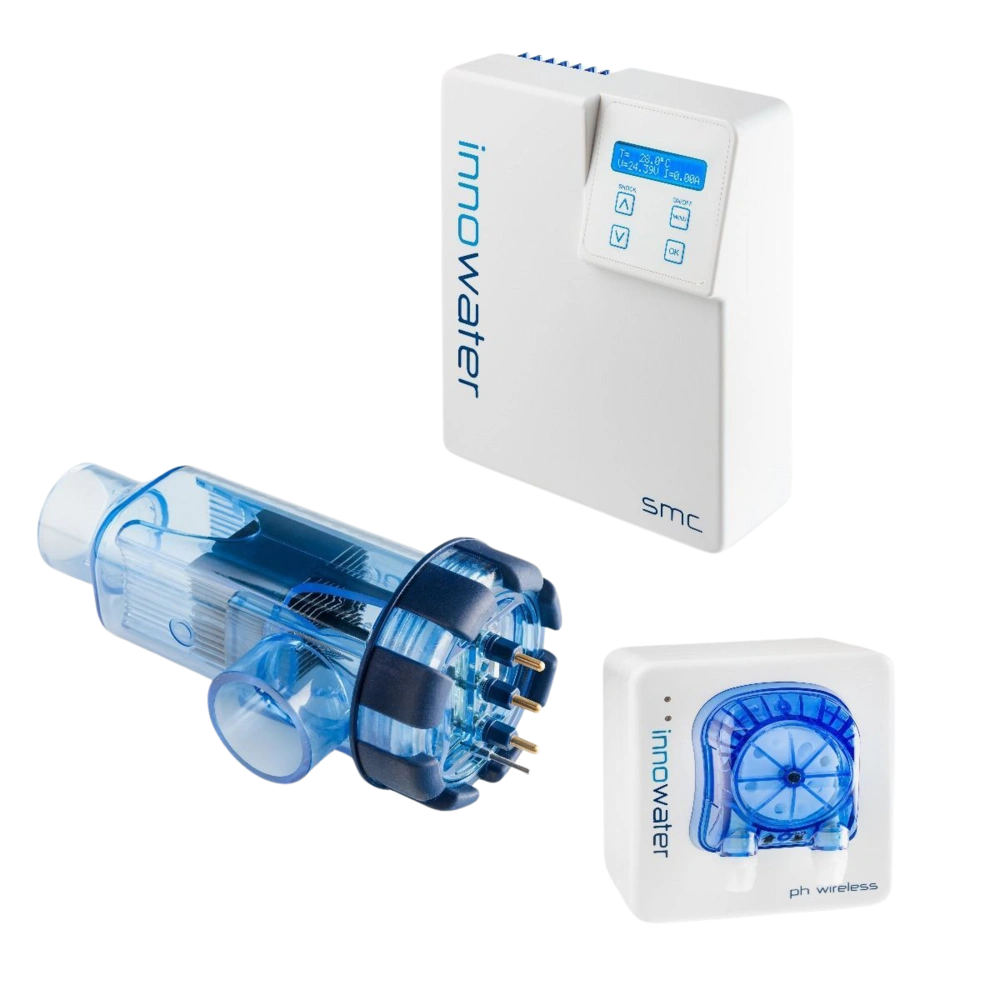

The system consists of a control module and an electrolysis cell. The cell is inserted into the return of the water cycle, the control module can be installed in the maintenance area. Salt content and transformation progress can be read off in the display.
The additional acid-dosing pump measures the pH-value and regulates it by adding alkaline granulate such as pH-minus.
| Scope of delivery: | |||
| 1 x | Control module | ||
| 1 x | electrolysis cell | ||
| 1 x | Connection cable | ||
| 1 x | Cell housing with seal and lid | ||
| 1 x | Wireless pH module for the control of the pH value | ||
For more information see Downloads
| OEG no. | 650001578 |
| Pool capacity [m³]: | 150 .. 200 |
| Type: | SMC-50 pHw |
| Output current [A]: | 8.5 |
| Chlorine production [g/h]: | 50 |
| Type of connection: | Thread |
| Connection size: | 63 mm |
| pH control: | Yes |
| Pressure max. [bar]: | 4 |
| Voltage [V]: | 230 |
| Flow rate max. [l/min]: | 450 |
| Pressure drop [kpa]: | 5 |
| Output voltage [V]: | 24 |
| Salt content [g/l]: | 5 .. 35 |
| Material cell housing: | Polycarbonate |
| Average lifespan cell [h]: | 14,000 |
| Material electrode: | Titanium Class 1 |
| Manufacturer | innowater |
| Weight [kg] | 8 |
| Notes |
CE
|
| Customs tariff number | 85433070 |
