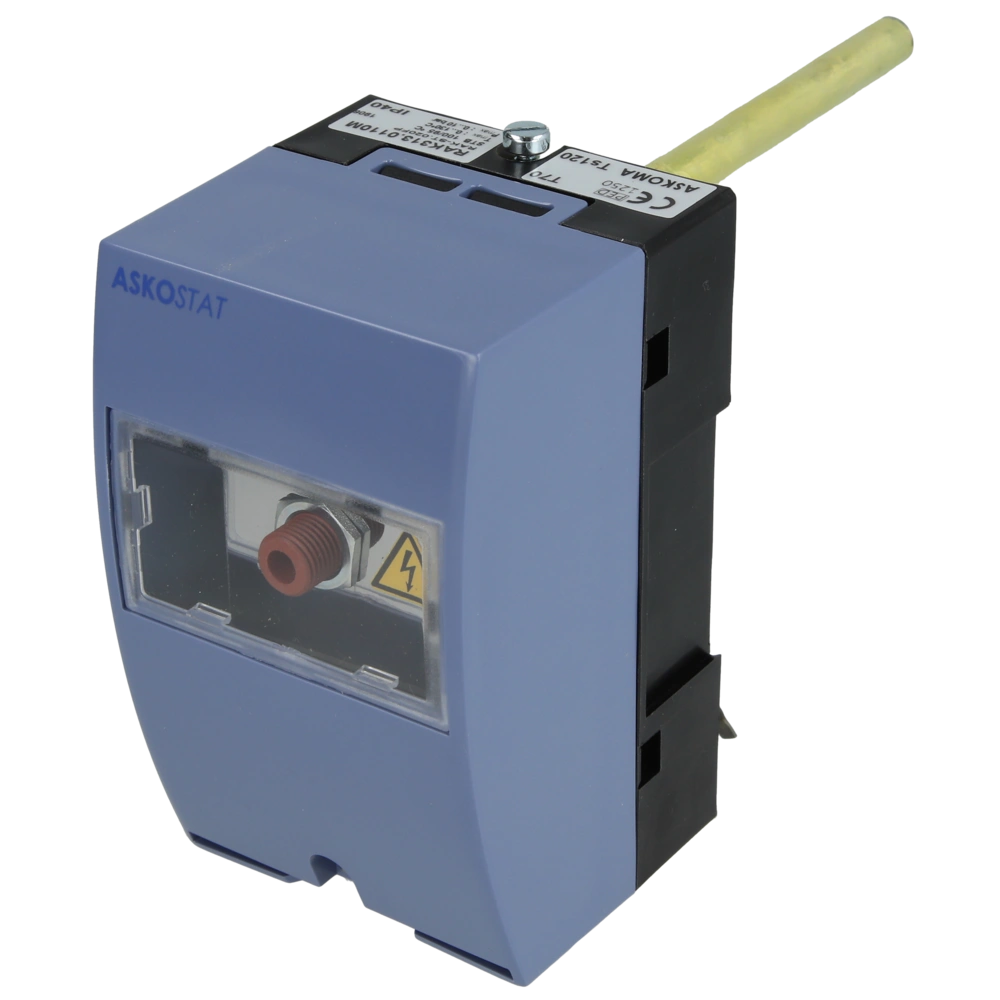

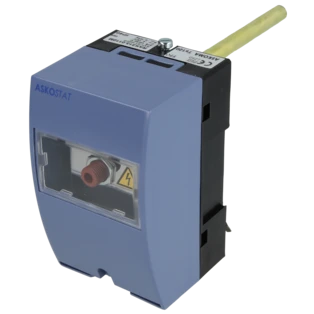

Safety temperature limiter RAK 313.0110M 011-4829
OEG no.: 211220110
OEG no. : 211220110
The safety temperature limiter in breakproof housing is intended for pocket mounting. It is used in heat generator plants and other HVAC applications. The device is mounted on an immersion tube. The...
All product information
CE
PU
The safety temperature limiter in breakproof housing is intended for pocket mounting. It is used in heat generator plants and other HVAC applications. The device is mounted on an immersion tube. The limiter is fitted with a single-pole micro switch with change-over switch.
If the nominal value is reached, the change-over switch is activated or remains locked in this position. Reset is performed manually and is only possible after the sensing element has cooled off by approx. +20 °C.
For more information see Downloads
| OEG no. | 211220110 |
| Voltage [V]: | 40 - 250 V ~ |
| DIN: | VDE 0631 |
| Protection type [IP]: |
 IP40
|
| Temperature max. [°C]: | 100 |
| Switch contact: | Changeover |
| Manufacturer | Askoma |
| Manufacturer number | 011-4829 |
| Weight [kg] | 0.58 |
| Notes |
CE
PU
|
| Customs tariff number | 90321020 |
