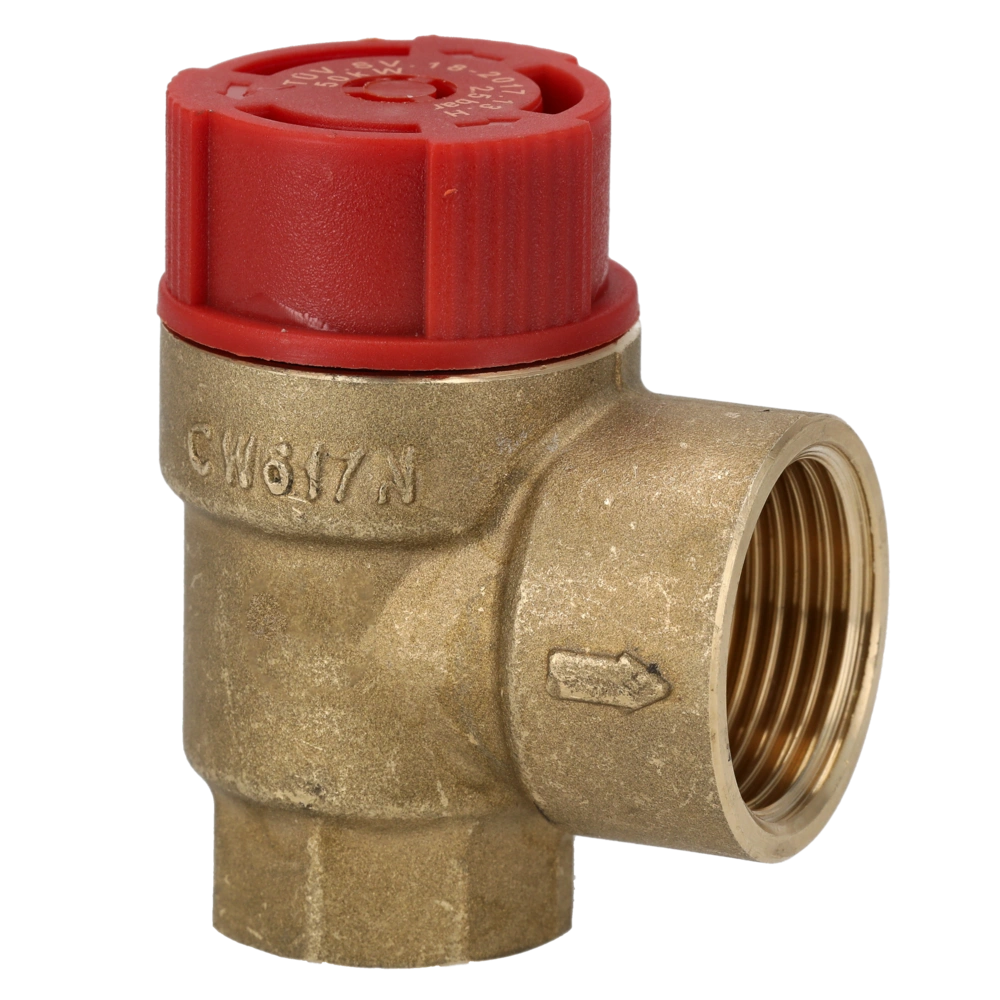

Safety relief valve for heating 1/2" 3 bar
Safety relief valve for closed heating systems. The opening pressure is preset and secured against unintentional maladjustment. When the relevant pressure value is reached, the valve opens, and by pressure...
Spare part for All product information| Spare part for: | ||
|
Vessel connection assembly for expansion vessels 3 bar | |
|
Boiler safety group for heating systems up to 50kW with insulation | |
Safety relief valve for closed heating systems. The opening pressure is preset and secured against unintentional maladjustment. When the relevant pressure value is reached, the valve opens, and by pressure relief, it prevents the system pressure from rising to dangerous limit values.
For more information see Downloads
| OEG no. | 512240170 |
| Connection size [inch]: | 1/2 | 3/4 |
| Pressure [bar]: | 3 |
| Operating temperature [°C]: | -10 .. 110 |
| Material: | Brass CW617N |
| Standard: | EN 1489 |
| Type of connection: | Female thread |
| Also replaces |
|
| Weight [kg] | 0.17 |
| Customs tariff number | 84814090 (CN) |
You have to be logged in to ask a question
07/02/2024, 12:43:49 of: Mr IDROTERMOGAS
NON SONO MALE
Questa valvola non è male anche se non è il top di gamma...
06/02/2023, 10:43:52 of: Mr ENTREPRISE BARTHELEMY
mauvaise qualité non fiable
intérieur en plastique ne supportant les températures de chauffage le clapet entier à SAUTE à à peine 1.2 bar à la 1ère mise en service !!
Comme l'article ne s'allume qu'à partir d'une pression de 3 bars, il a certainement un défaut. Dans ce cas, nous vous l'échangeons bien entendu.
21/04/2020, 20:31:12 of: Mr action pro chauffage
faible encombrement
facile à monter, mais pas de manomètre
03/02/2019, 15:50:59 of: Mr Sascha K.
Empfehlenswert
Top SV zu einem sehr guten Preis-Leistungsverhältnis!
15/02/2018, 19:24:52 of: Mr olaf
TOP
Schnell eingebaut und das tropfen hört auf
13/02/2018, 16:34:25 of: Mr Peter
Doet zijn job
Goede prijs kwaliteit verhouding hiervoor!
23/01/2018, 16:45:43 of: Mr Hans
Top Artikel
Top Artikel zu einem guten Preis-Leistungsverhältnis.
24/12/2017, 15:43:42 of: Mr Diekmann
Gute Ware
gute verarbeitung und ein top preiss
21/04/2017, 22:13:40 of: Mr Olaf
TOP
gute verarbeitung und ein top preiss
05/04/2016, 18:24:15 of: Mr Feld
gut
Schnell eingebaut und das tropfen hört auf
29/02/2016, 16:06:06 of: Mr Feld
guter Artikel
Guter Artikel das tropfen ist weg
28/02/2016, 17:51:12 of: Mr brandt
très pratique
très bon produit pas cher et passe partout
24/09/2015, 14:45:26 of: Mr Pierson
bon marché
soupape e chauffage de bon rapport qualité prix
13/12/2014, 19:05:02 of: Mr Oliver
:)
Gute Verarbeitung und hält ewig
18/10/2014, 13:03:10 of: Mr Marc
Super prix
Bon prix, idéal pour le dépannage, prend peu de place.
