Safety group with pressure reducing valve 10 bar SG160SD-3/4AC

OEG no.: 512103641
Zoom Safety group with pressure reducing valve 10 bar
OEG no. : 512103641

Honeywell SG safety groups of this type are used as protection of pressurised water heaters. They are compact appliances which incorporate all the necessary safety fittings such as check valve, shut-off...

All product information
Related products
certified by DVGW

certified by DVGW

certified by DVGW
Resideo 5-year warranty

Resideo 5-year warranty

Resideo 5-year warranty
Wipe 'n' Buy ®
Wipe 'n' Buy

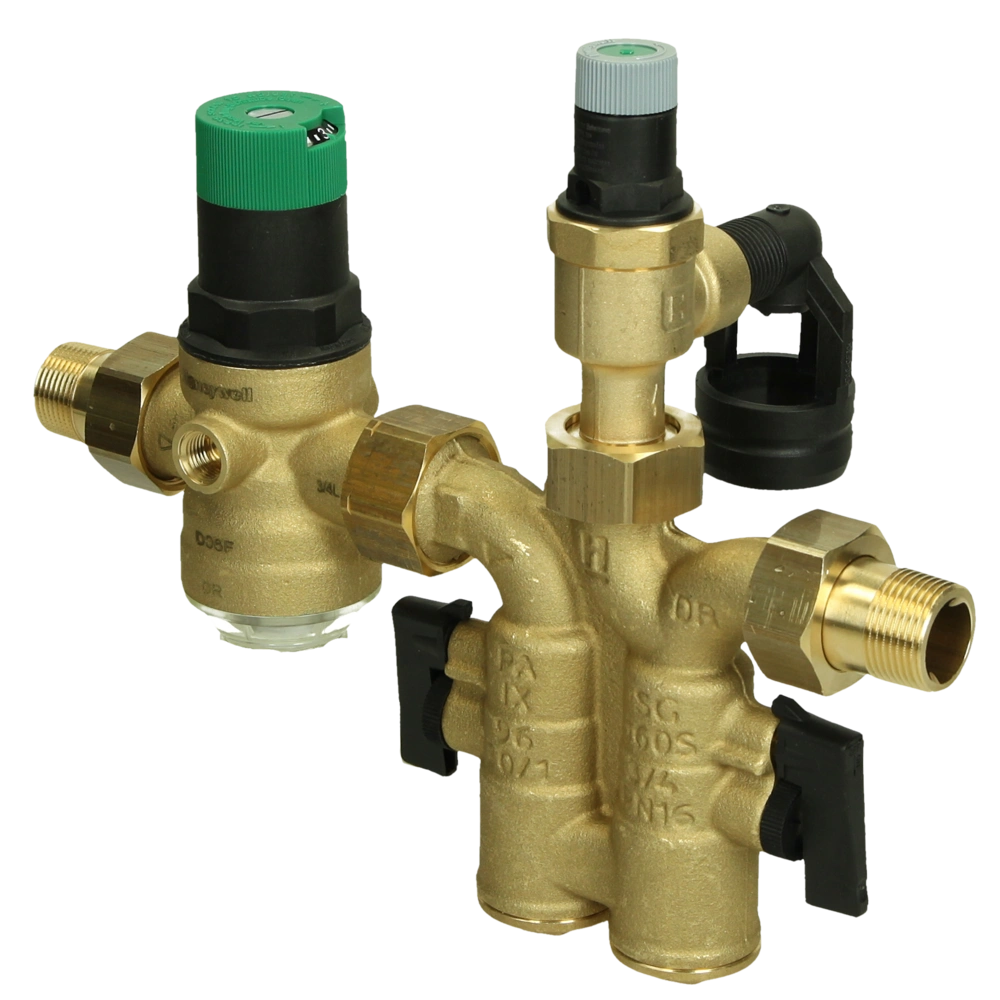

Honeywell SG safety groups of this type are used as protection of pressurised water heaters. They are compact appliances which incorporate all the necessary safety fittings such as check valve, shut-off valves, test point and diaphragm safety valve in one unit. The safety valve protects the downstream water heater by automatically opening and closing. The check valve prevents back pressure, backflow and back siphonage of contaminated water. An upstream pressure reducing valve with balanced single-seated valve controls the mains water pressure for the required system pressure.


For more information see Downloads


OEG no. 512103641
Material: Dezincification-resistant brass
Type: SG160SD
Suitable for: Up to 1,000 litres
Connection size: 3/4" ET
Media: Water
Seal: NBR
Operating pressure max. [bar]: 10
Operating temperature [°C]: 40
DIN: 4753 part 1, EN 1488, EN 806-2
Length [mm]: 278
Height [mm]: 124.5
Manufacturer Resideo
Manufacturer number SG160SD-3/4AC
Brand Honeywell
Weight [kg] 2.42
Notes
certified by DVGW

certified by DVGW

certified by DVGW
Resideo 5-year warranty

Resideo 5-year warranty

Resideo 5-year warranty
Customs tariff number 84818019
