Honeywell SG safety groups of this type are used as protection of pressurised water heaters. They are compact appliances which incorporate all the necessary safety fittings such as check valve, shut-off...
All product informationRelated products
certified by DVGW
Resideo 5-year warranty

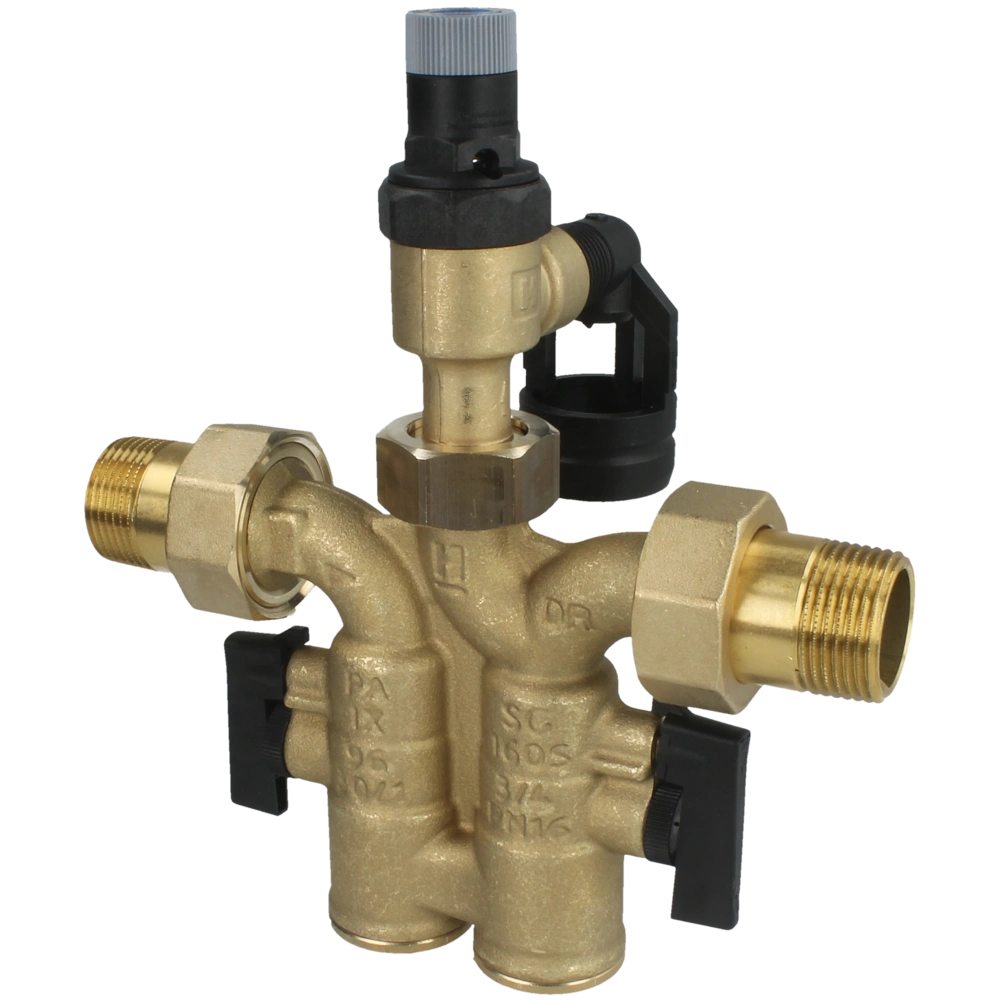

Honeywell SG safety groups of this type are used as protection of pressurised water heaters. They are compact appliances which incorporate all the necessary safety fittings such as check valve, shut-off valve, test point and diaphragm safety valve in one unit. The safety valve protects the downstream water heater by automatically opening and closing. The check valve prevents back pressure, backflow and back siphonage of contaminated water.
For more information see Downloads
| OEG no. | 512103620 |
| Material: | Dezincification-resistant brass |
| Type: | SG160S |
| Suitable for: | Up to 1,000 litres |
| Connection size: | 1" ET |
| Media: | Water |
| Seal: | NBR |
| Operating pressure max. [bar]: | 6 |
| Operating temperature [°C]: | 40 |
| Length [mm]: | 204 |
| Height [mm]: | 124.5 |
| DIN: | 4753 part 1, EN 1488, EN 806-2 |
| Manufacturer | Resideo |
| Manufacturer number | SG160S-1AA |
| Brand | Honeywell |
| Weight [kg] | 1.9 |
| Notes |
certified by DVGW
Resideo 5-year warranty
|
| Customs tariff number | 84818019 |
