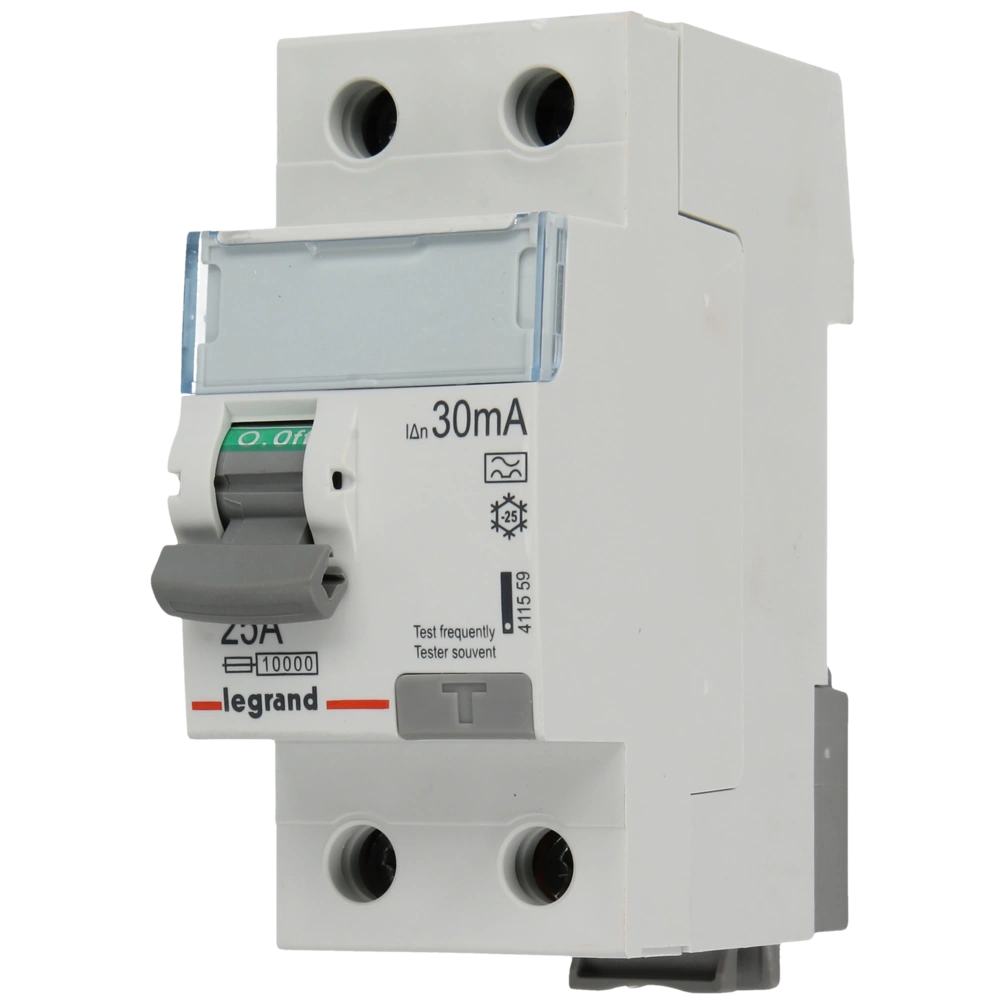

2-pole RCCB of type A for automatic disconnection of electrical circuits as soon as the permissible residual current is exceeded and for the protection against life-threatening situations caused by...
All product information2-pole RCCB of type A for automatic disconnection of electrical circuits as soon as the permissible residual current is exceeded and for the protection against life-threatening situations caused by insulation faults or dangerous contact voltage.
The circuit breaker is DIN rail mounted. Due to standard division, it can be installed quickly and easily. With transparent window for inserting labels.
For more information see Downloads
OEG no. | 711000450 |
Residual current protection type: | A |
Rated current [A]: | 25 |
Rated residual current [A]: | 0.03 |
Voltage [V]: | 230 |
Number of poles: | 2 |
Horizontal pitches [HP]: | 2 |
Type: | RCCB |
Type: | TX3 |
Cable cross-section solid [mm²]: | 0.75 .. 50 |
Cable cross-section stranded [mm²]: | 0.75 .. 35 |
Installation depth: | 44 |
Ambient temperature [°C]: | -25 .. 60 |
Protection type [IP]: |
IP20 |
Manufacturer | Legrand |
Manufacturer number | 411559 |
EAN | 3245060090562 |
Weight [kg] | 0.6 |
Customs tariff number | 85362010 (FR) |
