Delivery the next working day
Right of return 14 days

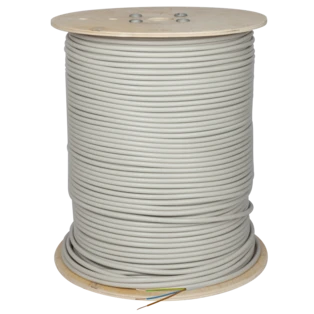

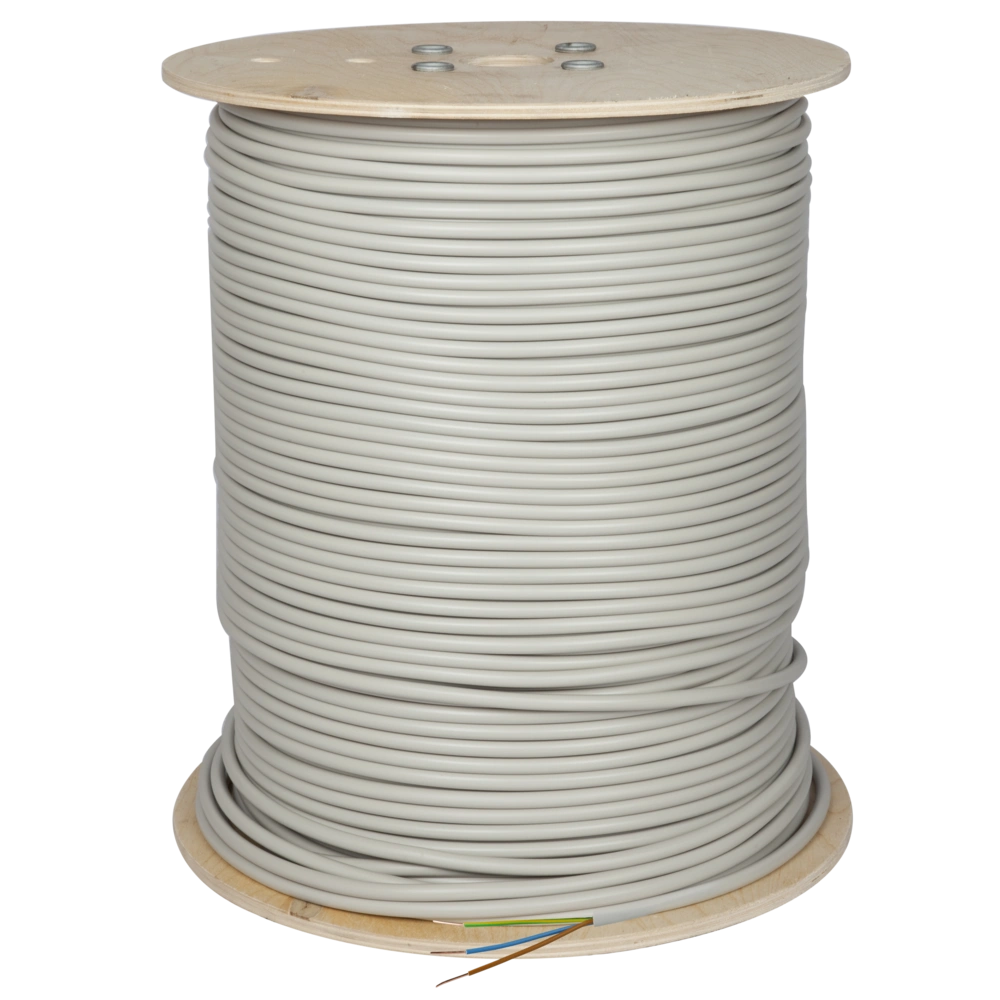

Installation cable for laying on or under plaster, in dry, damp or wet interiors as well as in masonry and concrete. Direct embedding in jolted, vibrated or tamped concrete is not permitted.
Also...
PU
EAC
CE
Delivery by forwarding agency
Installation cable for laying on or under plaster, in dry, damp or wet interiors as well as in masonry and concrete. Direct embedding in jolted, vibrated or tamped concrete is not permitted.
Also suitable for outdoor use if protected against direct sunlight. The product complies with the 2006/95/EC guideline CE.

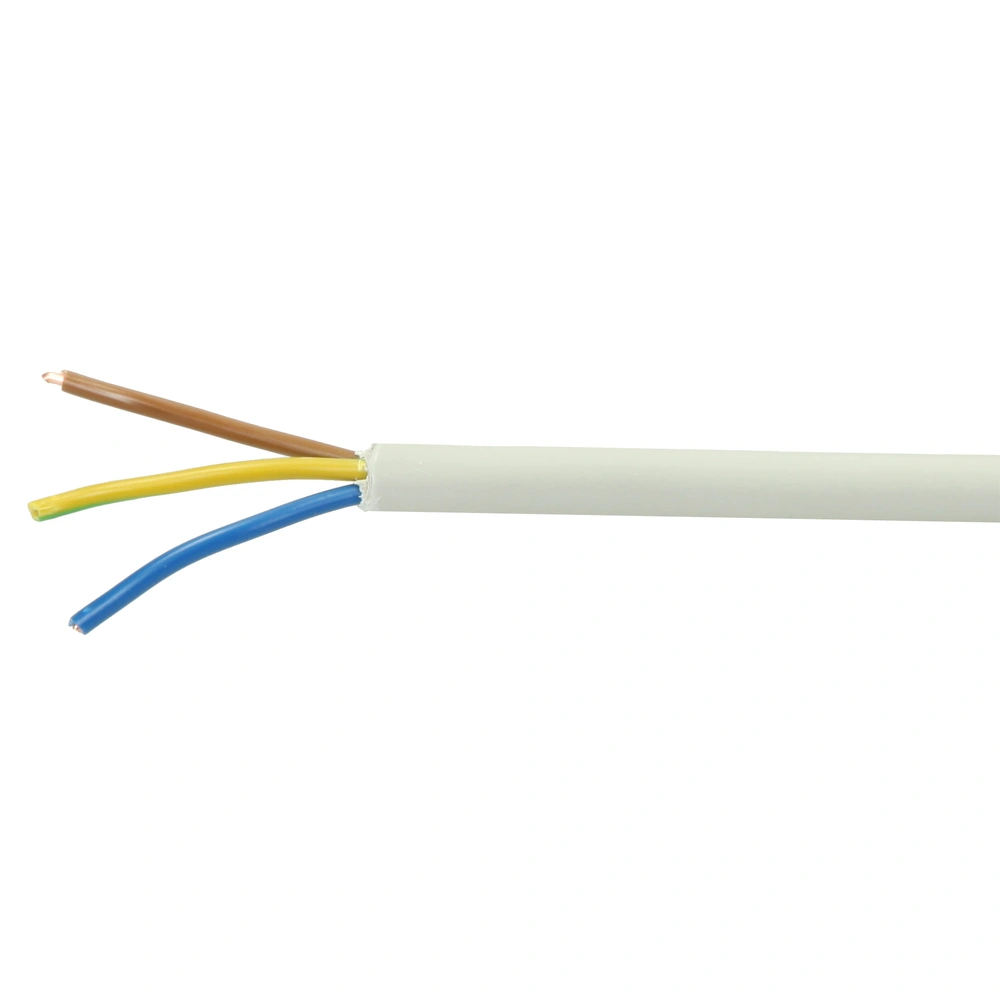

The test voltage is 2,000V. The copper conductors are bare and stranded in layers in the filler sheath. The core identification complies with DIN VDE 0293.
For more information see Downloads
OEG no. | 701001612 |
PU | 500 m non-returnable drum |
Number of cores: | 3 |
Wire cross-section [mm²]: | 2.5 |
DIN: | VDE 0293 |
Wire identification: | NYM-J 3 x 2.5 |
Copper content [kg/km]: | 72.0 |
Rated voltage [V]: | 300/500 |
Test voltage [V]: | 2,000 |
Insulation: | PVC |
Material: | Copper bright |
Temperature range moving [°C]: | 5 .. 70 |
Temperature range static [°C]: | -40 .. 70 |
Weight [kg] | 46.4 |
Notes |
PU EAC CE Delivery by forwarding agency |
Customs tariff number | 85444995 |
