OEG no. : 112101350
Related products

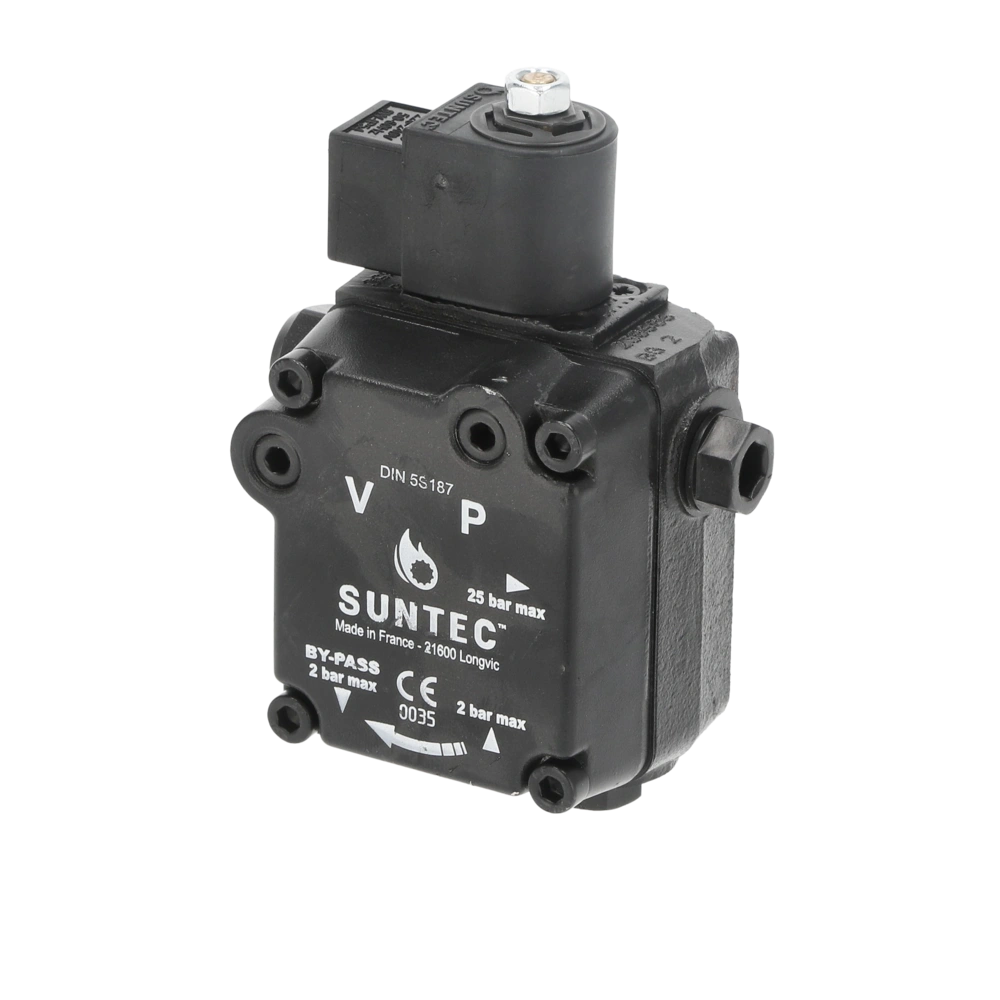

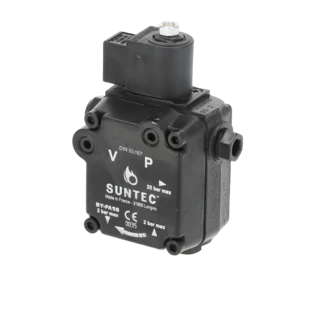

Internal gear pump with solenoid valve and integrated pressure relief valve in the nozzle line for light and extra light heating oil. The pump can be used in one- or two-pipe operations.
All product informationRelated products
CE
Internal gear pump with solenoid valve and integrated pressure relief valve in the nozzle line for light and extra light heating oil. The pump can be used in one- or two-pipe operations.
| OEG no. | 112101350 |
| Oil pump direction of rotation: |
 Anti-clockwise rotation
|
| Type: | ALE |
| Operating pressure [bar]: | 4 .. 18 |
| Viscosity: | 2 .. 12 mm²/s |
| Nozzle outlet: | On the left |
| Shaft diameter [mm]: | 8 |
| Pump shaft: |
 1-surface
|
| Power consumption [W]: | 9 |
| Torque [Nm]: | 0.10 |
| Speed max. [1/min]: | 3,600 |
| Media temperature [°C]: | 0 .. 60 |
| Connection size flow and return [inch]: | 1/4 |
| Connection size nozzle outlet [inch]: | 1/8 |
| Delivery rate [l/h]: | 45 |
| Manufacturer | Suntec |
| Manufacturer number | ALE35C9324 6P 0500 |
| Also replaces | 112115335 |
| Weight [kg] | 1.15 |
| Notes |
CE
|
| Customs tariff number | 84136031 (EEC) |
