Oil meter VZO 4-RE 0.00125 89763

OEG no.: 116326202
  • 1 .. 80 l/h

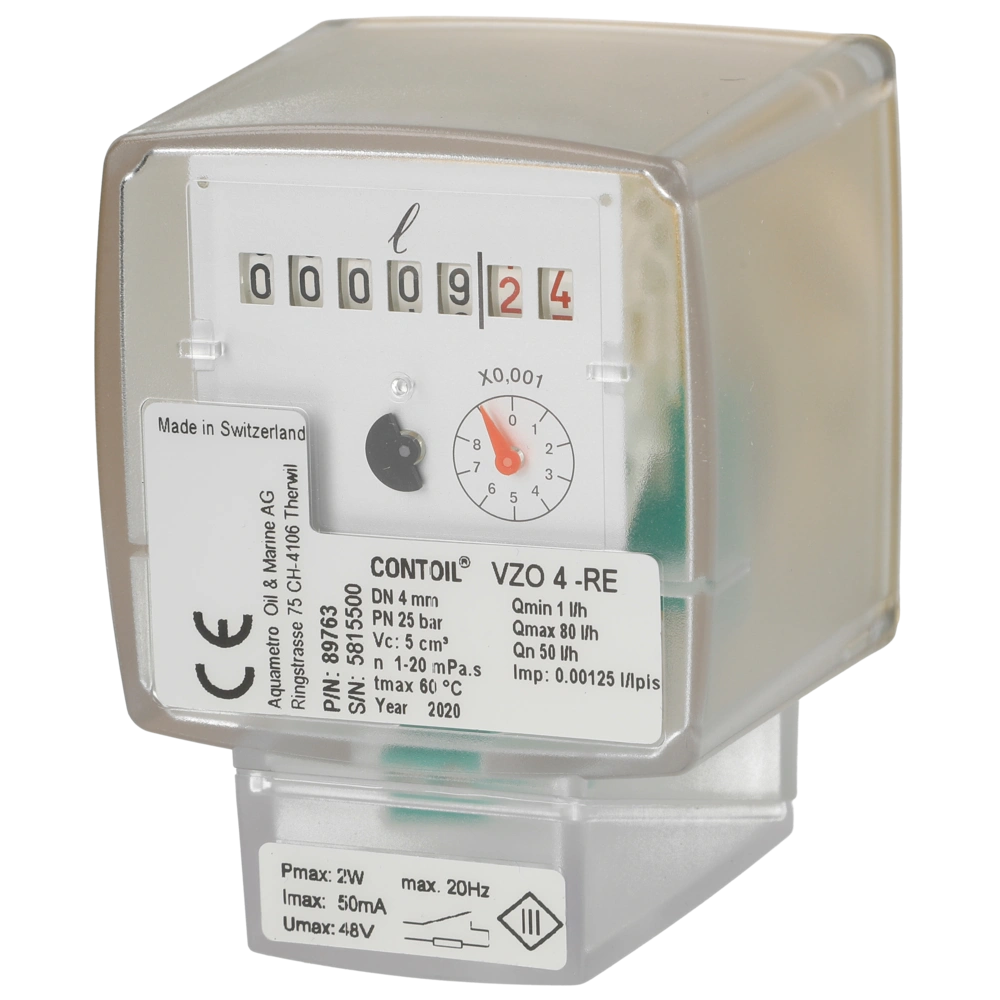

Zoom Oil meter VZO 4-RE 0.00125
OEG no. : 116326202

Oil meter with integrated Reed pulser for measuring the heating oil consumption of oil burners and the flow of mineral oils. The rotary piston meter provides accurate measuring results since these are...

All product information
Related products
Wipe 'n' Buy ®
Wipe 'n' Buy

Oil meter with integrated Reed pulser for measuring the heating oil consumption of oil burners and the flow of mineral oils. The rotary piston meter provides accurate measuring results since these are independent of the temperature and the viscosity of the medium. The setup Reed pulser RE allows for remote processing of the meter.
It can be installed in a space-saving way on the pressure or suction side in any position because no straight inlet and outlet sections are required.
Failure costs are minimised due to simple function monitoring, rapid fault analysis and the possibility of simple repairs on site.


For more information see Downloads


OEG no. 116326202
Model: Reed pulse generator
Measuring range: 1 .. 80 l/h
Type of connection: Female thread
Connection size: 1/8" IT
Temperature max. [°C]: 60
Mounting type: Horizontal, Vertical
Nominal pressure PN [bar]: 25
Measurement accuracy: ± 1%
Flow rate [l/h]: 50
Length x Width x Height [mm]: 65 x 65 x 79
Protection type [IP]:
IP5X

IP5X

IP5X
Switch-on time: 65 .. 90 %
Voltage [V]: Max. 48V AC/DC
Output: Max. 2 W
Switching capacity: Max. 50 mA (Ri = 47 Ohm/0.5 W)
Pulse value [litres / pulse]: 0.00125
Indication max.: 100,000 litres
Pumped medium: Diesel, Heating oils, Petrol
Measurement deviation in %: ± 1, ± 0.2
Property: Vibration-proof
Calibration:
Yes

Yes

Yes
Manufacturer Aquametro
Manufacturer number 89763
Weight [kg] 0.72
Customs tariff number 90282000 (CH)
Question:

I would like to know the weight of the

Answer OEG:

The weight is approximately 650 g.
