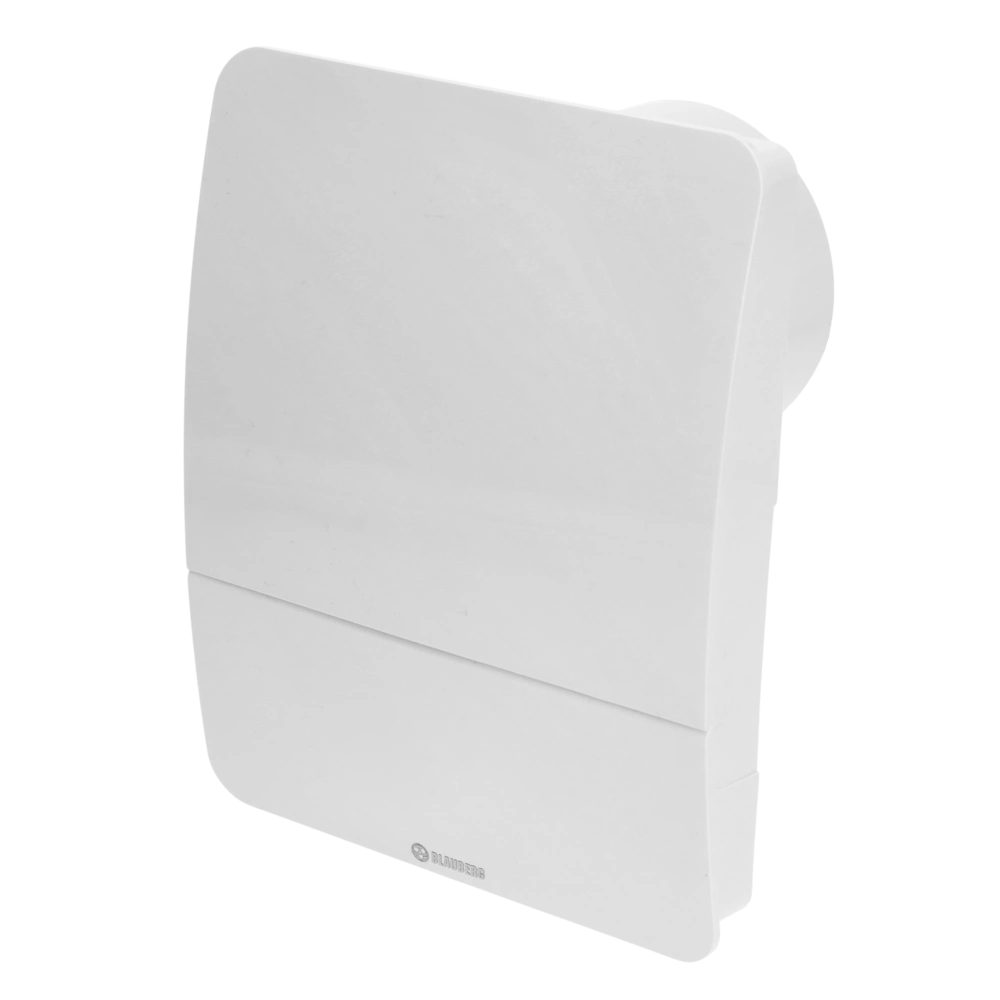

This mini fan with timer is a low-noise extractor fan for bathrooms and WCs. The impeller is driven by a maintenance-free ball-bearing motor with minimal energy consumption. It is controlled by a separate switch.
All product informationRelated products
CE
GS-certified
This mini fan with timer is a low-noise extractor fan for bathrooms and WCs. The impeller is driven by a maintenance-free ball-bearing motor with minimal energy consumption. It is controlled by a separate switch.
For more information see Downloads
| OEG no. | 745000122 |
| Design: | Overrun switch |
| Output [W]: | 9 |
| Delivery rate [m³/h]: | 97 |
| Sound pressure level [dB]: | 25 |
| Pipe diameter [mm]: | 100 |
| Voltage [V]: | 230 |
| Speed max. [1/min]: | 2,160 |
| Protection type [IP]: |
 IP44
|
| Length x Width x Height [mm]: | 116 x 175 x 221 |
| Mounting type: | Wall mounting |
| Type: | Cabrio Base |
| Manufacturer | Blauberg |
| Manufacturer number | 8046803 |
| EAN | 4010184003359 |
| Weight [kg] | 0.69 |
| Notes |
CE
GS-certified
|
| Customs tariff number | 84145100 (EEC) |
