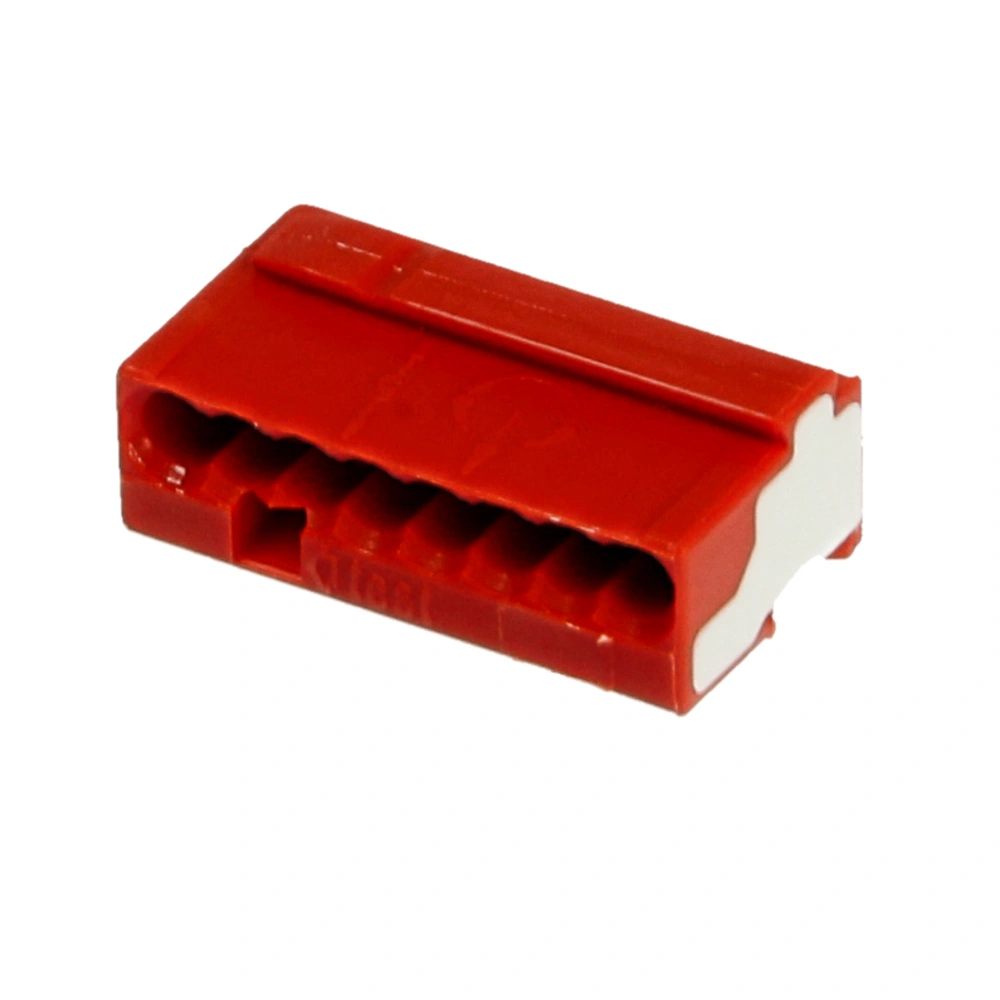

The MICRO junction box connector with specially small design for professional wiring is fitted with a separate clamping unit for each conductor with a diameter of 0.6 to 0.8 mm. The clamping units are fully insulated and feature an integrated test slot as well as the fast PUSH WIRE® connection technology. The junction boxes are available in different colours..
Safety note:
When using conductors of exclusively the same diameter, ∅ 0.5 mm / 24 AWG or
∅ 1 mm / 18 AWG are also possible.
For more information see Downloads
| OEG no. | 703000066 |
| PU | 50 pieces |
| Colour: |
 Red
|
| Voltage [V]: | 100 |
| Rated current: | 6 |
| Number of conductors: | 8 |
| Series: | 243 |
| Manufacturer | Wago |
| Manufacturer number | 243808 |
| EAN | 4044918502795 |
| Also replaces |
|
| Weight [kg] | 0.01 |
| Customs tariff number | 85369010 |
