The infrared heating element is a flexible, low-cost and easy-to-install alternative to conventional heat generators. Quickly mounted and instantly ready to operate, the heater stands out due to its...
All product information Scope of deliveryNow with 10 years OEG warranty
High Quality

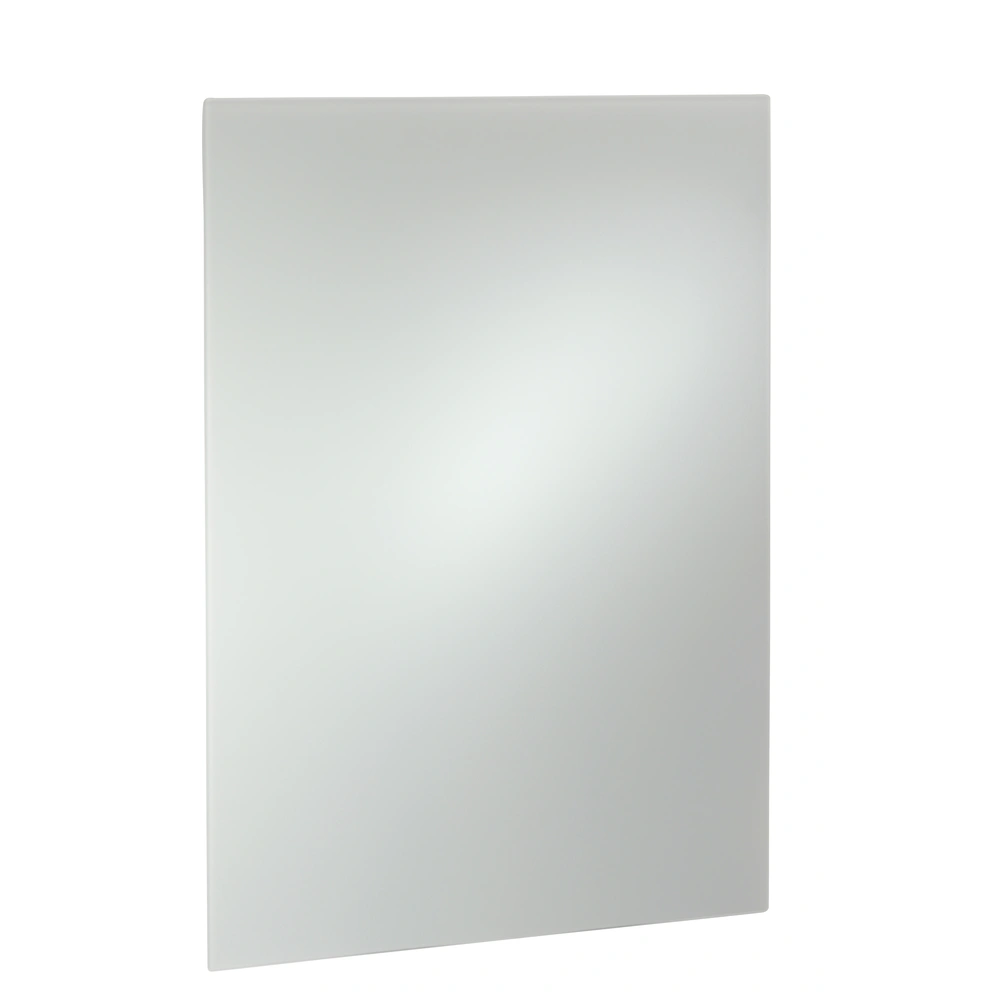

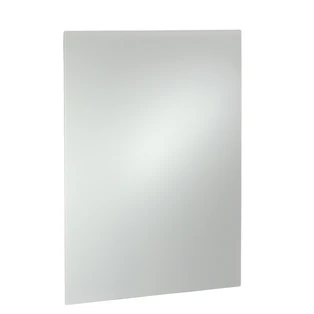

The infrared heating element is a flexible, low-cost and easy-to-install alternative to conventional heat generators. Quickly mounted and instantly ready to operate, the heater stands out due to its heat output, attractive design, the pleasant thermal radiation and long life. It is suitable for low-energy houses and as an option when modernising. Customers also prefer these infrared elements as a single-room addition to existing heat sources.
The frameless heating element with slightly rounded corners has been designed for surface mounting on the wall. It can be mounted on the wall in vertical or horizontal position.
The element is made of single-pane safety glass in white. At the back, a heating layer converts electrical energy into heat. This layer is reinforced fibreglass embedded in a plastic mass.
Note:
The heating element is supplied without safety plug and may only be installed by a specialist.
Scope of delivery: | |||
1 x | heating element | ||
1 x | Wall holder | ||
4 x | screw M5 x 12 mm | ||
1 x | installation instructions |
For more information see Downloads
OEG no. | 800024316 |
Colour: |
White |
Size: | 1,200 x 600 mm |
Output [W]: | 800 |
Material: | Glass |
Mounting type: | Horizontal and vertical |
Voltage [V]: | 230 V ~ |
Rated current: | 3.5 A |
Cable length: | 1.2 |
Temperature [°C]: | 120 |
Manufacturer | Vitramo |
Manufacturer number | VLF12060W |
EAN | 4250939302638 |
Weight [kg] | 15.1 |
Notes |
Now with 10 years OEG warranty High Quality |
Customs tariff number | 85162999 |
