The infrared heating element is a flexible, low-cost and easy-to-install alternative to conventional heat sources. Being quickly mounted and instantly ready to operate, the heater stands out due to...
All product information Scope of deliveryRelated products
Now with 10 years OEG warranty
High Quality

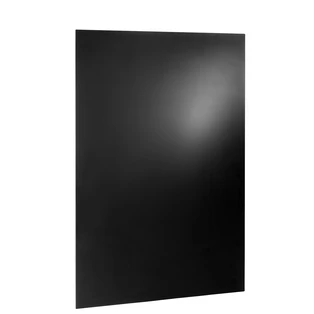

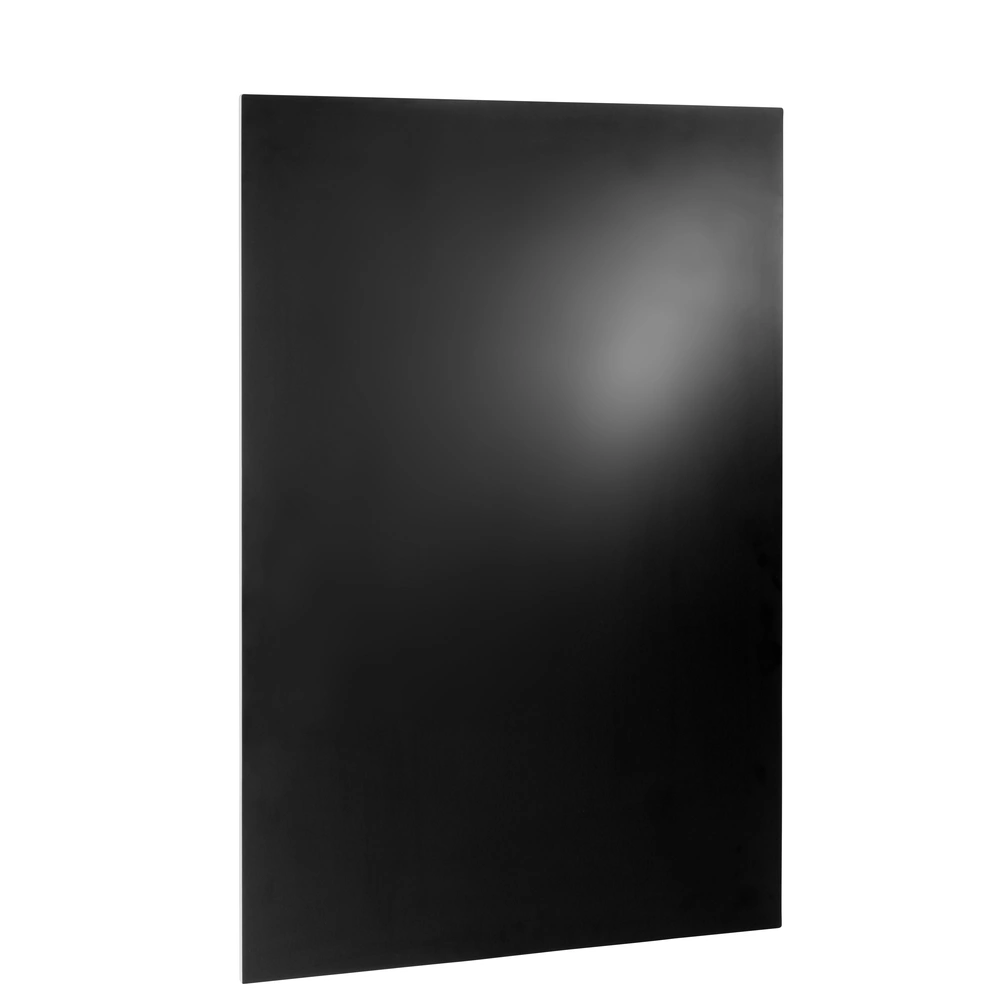

The infrared heating element is a flexible, low-cost and easy-to-install alternative to conventional heat sources. Being quickly mounted and instantly ready to operate, the heater stands out due to its heat output, an attractive design, pleasant thermal radiation and long service life. It is suitable for low-energy houses as well as an element for modernisation. Customers also prefer these infrared elements as single-room addition to already existing heat sources.
The frameless heating element with slightly rounded corners has been designed for surface mounting on the wall. It can be mounted on the wall either in vertical or horizontal position.
The element is made of black single-pane safety glass. At the back, a heating layer converts electrical energy into heat. This layer is reinforced fibreglass embedded in a plastic mass.
Note:
The heating element is supplied without power plug and shall only be installed by a specialist. For eco-design compliant operation, an additional room thermostat with week programming and detection of open windows is required.
| Scope of delivery: | |||
| 1 x | heating element | ||
| 1 x | Wall holder | ||
| 4 x | screw M5 x 12 mm | ||
| 1 x | installation instructions | ||
For more information see Downloads
| OEG no. | 800024300 |
| Colour: |
 Black
|
| Size: | 600 x 600 mm |
| Output [W]: | 400 |
| Material: | Glass |
| Mounting type: | Horizontal and vertical |
| Voltage [V]: | 230 V ~ |
| Rated current [A]: | 1.7 |
| Cable length: | 1.2 |
| Temperature [°C]: | 120 |
| Manufacturer | Vitramo |
| Manufacturer number | VLF06060S |
| EAN | 4250939302645 |
| Also replaces |
|
| Weight [kg] | 8.1 |
| Notes |
Now with 10 years OEG warranty
High Quality
|
| Customs tariff number | 85162999 |
Wie hoch muss die watt Leistung für ca. 15 m2 sein.
Hallo. Also es kommt auch immer auf das Haus an. bei einem Passivhaus benötigen Sie ca. 15-30 W/m². Ein Neubau von 2019 erwartet ca. 30-50 W7m² in Abhängigkeit von der Raumgröße (bei mehr Fläche, mehr Watt).
für Häuser um 1990 rum ca. 80 W/m² ; 1980 ca. 100 W/m² ; 1970 ca. 120 W/m². noch ältere, bzw. schelcht bis gar nicht isolierte Gebäude sollte keine Heizung dieser Art enthalten. Des Weiteren ist eine genaue Auslegeung nur von einem Fachmann möglich, sofern es nicht nur um 1 Heizelement geht, sondern eine generelle Wärmequelle darstellen sollen, dies sind nur grobe Eckdaten.
