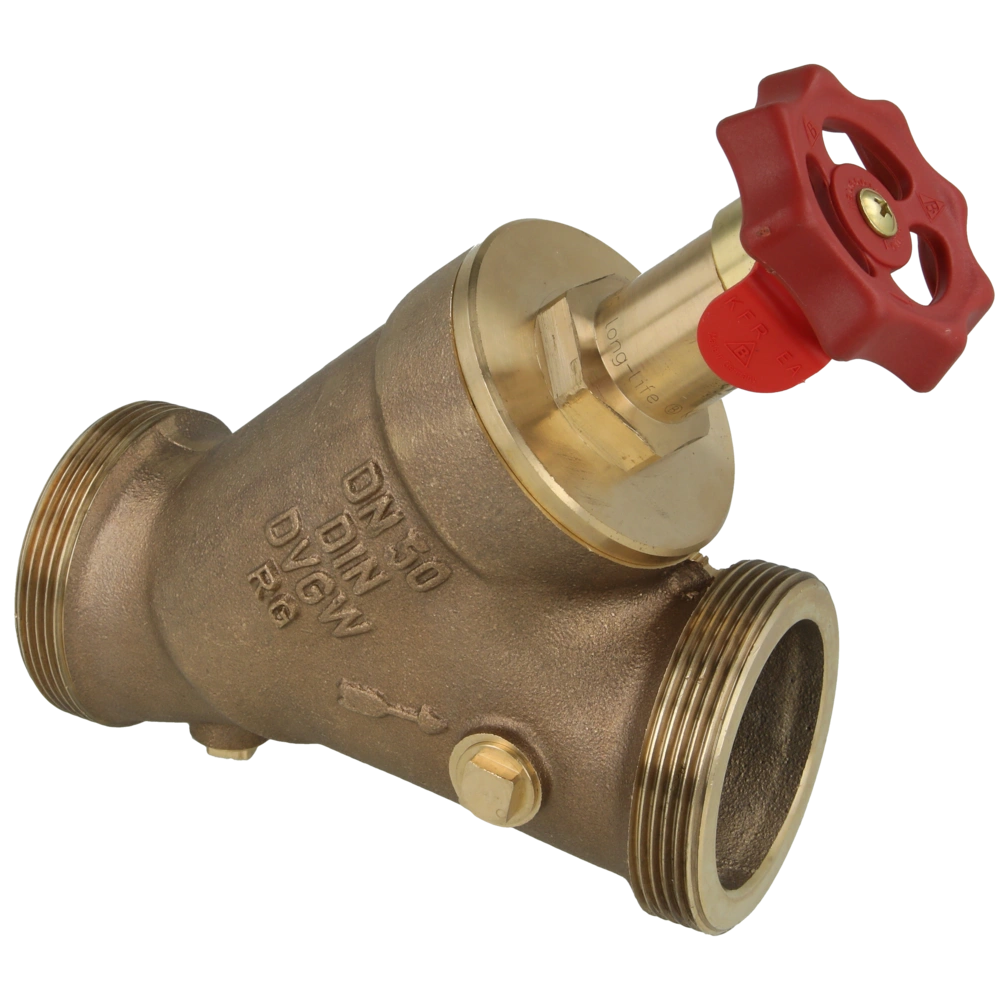

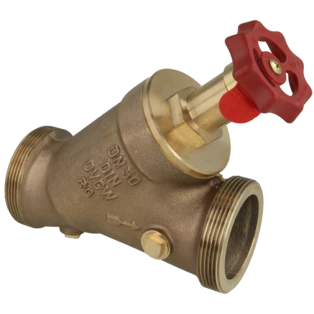

The Bender gunmetal KFR valves (combined free-flow and check valve) are used for shutting off drinking water installations during repair and maintenance works with additional check valve when the valve is open...
All product informationRelated products
stem non-rising
certified by DVGW
Suitable for drinking water
High Quality
The Bender gunmetal KFR valves (combined free-flow and check valve) are used for shutting off drinking water installations during repair and maintenance works with additional check valve when the valve is open. A pre-loaded spring prevents backflow, also in rest position. KFR valves have a non-rising, long-life gunmetal grease chamber bonnet without dead space with teflonised stem and plugs on both sides. The flat EPDM seals are approved as per KTW / W270. All materials are compliant with drinking water as per DIN 50930 Part 6 or UBA list 03/2018.
For more information see Downloads
| OEG no. | 805010035 |
| Model: | Non-rising stem |
| Nominal size: | DN50 |
| Type: | 3606 |
| Total length [mm]: | 150 |
| Connection: | 2 3/8" ET |
| Pressure stage PN [bar]: | 16 |
| Standard: | DIN EN 13959 |
| Total height: | 128.5 |
| Seal: | EPDM |
| Draining facility: | Without double-sided plug |
| Operating temperature [°C]: | 90 |
| Manufacturer | Bender |
| Manufacturer number | 3606505 |
| EAN | 4038892001023 |
| Weight [kg] | 2.58 |
| Notes |
stem non-rising
certified by DVGW
Suitable for drinking water
High Quality
|
| Customs tariff number | 84818079 |
