Flue gas system E1 single-walled Ø 130 mm

Single-walled, stainless steel chimney system with a material thickness of 0.6 mm perfectly suitable for renovation or the reduction of the cross-sectional area of existing brick chimneys, connection pipes and for ventilation.
The lightweight material allows for quick installation and simple offsets. The flue gas system is applicable for standard furnaces such as oil, gas and solid fuels up to a flue gas temperature of 600 °C.


25 years guarantee

25 years guarantee
25 years guarantee
Ratings and tips
(13)
Summary of item questions (5)

  • Accessories
      Model Length [mm] Quantity Price Show all details
    Blank cap for wall liner Ø 130 mm Blank cap for wall liner

    Boiler connection / push-in connector Ø 130 mm male type Boiler connection push-in 146

    Universal connection Ø 130 mm push-in conical Boiler connection push-in conical 146

    Boiler connection Ø 130 mm push-over conical Boiler connection push-over conical 146

    Ceiling suspension Ø 130 mm for threaded rod M8 Ceiling suspension adjustable

    Chimney door 210 x 140 mm Chimney door with 4 straps

    Chimney door 210 x 140 mm sliding connector 60 mm Chimney door with 60 mm sliding sleeve

    Condensate tray Ø 130 x 250 mm with drain pipe Condensate tray with drain pipe 80

    Draught stabiliser Ø 130 mm Damper

    Top cover with storm collar for flue gas system Ø 130 mm End cap with storm collar 75

    Boiler clamp Ø 130 mm Insulated clamp 65

    Insulation shell 25 mm Ø 130 x 1,000 mm Insulation shell 1,000

    Intermediate connection piece Ø 130 mm Intermediate connection piece 330

    Lid Ø 130 mm without clamp seal Lid without clamp seal

    Locking band Ø 130 mm Locking band

    Test point / measuring element Ø 130 x 200 mm Measuring element 200

    Assembly clamp Ø 130 mm Mounting clamp 30

    Rain cap Ø 130 mm Rain cap 155

    Storm collar / embellisher Ø 130 mm Storm collar

    Ventilation grille round Ø 130 mm Ventilation grille

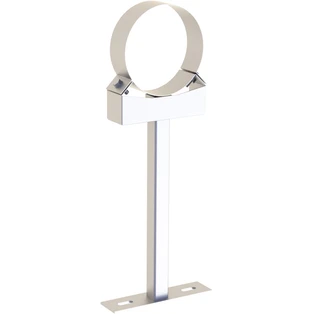

    Wall spacer 50 mm rigid Ø 130 mm Wall bracket 50 mm rigid 50

    Wall spacer Ø 130 mm adjustable 50 - 360 mm Wall bracket adjustable up to 360 mm 50 .. 360

    Wall liner double Ø 130 mm Wall lining double 220


  • Basic package
      Model Quantity Price Show all details
    Flue gas system basic package single-walled Ø 130 mm for all standard furnaces Standard


  • Enlarger
      Model Length [mm] Quantity Price Show all details

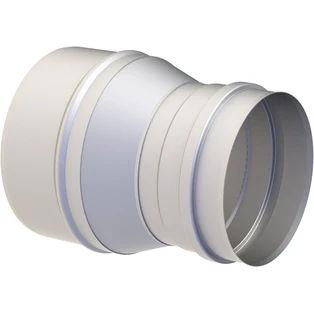

    Flue pipe enlarger Ø 100 mm to Ø 115 mm Ø 100 mm to Ø 115 mm 200

    Flue pipe enlarger Ø 100 mm to Ø 130 mm Ø 100 mm to Ø 130 mm 200

    Flue pipe enlarger Ø 110 mm to Ø 130 mm Ø 110 mm to Ø 130 mm 200

    Flue pipe enlarger Ø 115 mm to Ø 130 mm Ø 115 mm to Ø 130 mm 200

    Flue pipe enlarger Ø 120 mm to Ø 130 mm Ø 120 mm to Ø 130 mm 200

    Flue pipe enlarger Ø 125 mm to Ø 130 mm Ø 125 mm to Ø 130 mm 200

    Flue pipe enlarger Ø 60 mm to Ø 130 mm Ø 60 mm to Ø 130 mm 200

    Flue pipe enlarger Ø 80 mm to Ø 130 mm Ø 80 mm to Ø 130 mm 200

    Flue pipe enlarger Ø 90 mm to Ø 130 mm Ø 90 mm to Ø 130 mm 200


  • Flue pipe elbow
      Model Angular size Quantity Price Show all details
    Elbow rotatable 0-45° Ø 130 mm Adjustable 0 .. 45°

    Elbow Ø 130 mm rotatable 0-90° Adjustable 0 .. 90°

    Cleaning elbow Ø 130 mm 0-90° Adjustable, Clean-out element with door 0 .. 90°

    Cleaning elbow 87° with door Ø 130 mm Clean-out element with door 87°

    Clean-out elbow 90° with door Ø 130 mm Clean-out element with door 90°

    Elbow 15° Ø 130 mm Standard pipe 15°

    Elbow 30° Ø 130 mm Standard pipe 30°

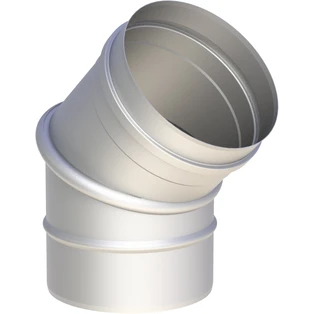

    Elbow 45° Ø 130 mm Standard pipe 45°

    Elbow 87° Ø 130 mm Standard pipe 87°

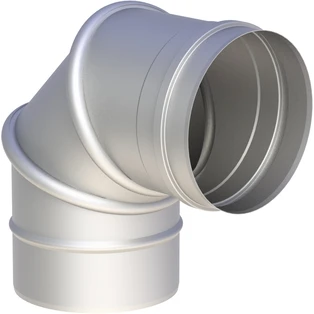

    Elbow 90° Ø 130 mm Standard pipe 90°


  • Flue pipe straight
      Model Length [mm] Quantity Price Show all details
    Clean-out element Ø 130 mm with box and lid Clean-out element with box and lid 381

    Clean-out element Ø 130 x 500 mm with door Clean-out element with door 500

    Clean-out element Ø 130 mm with lid Clean-out element with lid 381

    Clean-out element round Ø 130 mm Clean-out element with pipe 376

    Flue pipe Ø 130 x 1,000 mm with double socket Double socket 996

    Sliding element Ø 130 mm 320 - 480 mm Sliding element 320 .. 480

    Sliding element Ø 130 mm 320 - 480 mm with external seal Sliding element 320 .. 480

    Flue pipe Ø 130 x 1,000 mm Standard pipe 996

    Flue pipe Ø 130 x 500 mm Standard pipe 496

    Flue pipe Ø 130 x 250 mm Standard pipe 246

    Flue pipe Ø 130 mm with assembly clamp 1,000 mm With assembly clamp 1,000

    Flue pipe Ø 130 mm 250 mm with condensate trap With condensate trap 200

    Flue pipe Ø130 x 1,000 mm with lowering loop With lowering loop 996


  • Pipe tee connection
      Model Angular size Length [mm] Quantity Price Show all details
    Pipe tee connection 87° Ø 130 mm T-Klix with water drip 87° 330

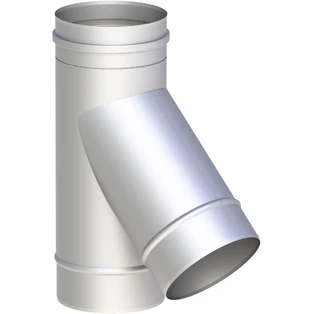

    Pipe tee connection 45° Ø 130 mm With water drip 45° 381

    Pipe tee connection 87° Ø 130 mm with water drip With water drip 87° 329


  • Reducer
      Model Length [mm] Quantity Price Show all details
    Flue pipe reducer Ø 130 mm to Ø 100 mm Ø 130 mm to Ø 100 mm 200

    Flue pipe reducer Ø 130 mm to Ø 115 mm Ø 130 mm to Ø 115 mm 200

    Flue pipe reducer Ø 190 mm to Ø 80 mm Ø 130 mm to Ø 80 mm 200

    Flue pipe reducer Ø 160 mm to Ø 130 mm Ø 160 mm to Ø 130 mm 200
