Flue gas system D1 double-walled Ø 130 mm with 25 mm insulation

Name: Flue gas system D1 double-walled Ø 130 mm with 25 mm insulation
SKU: G510607970
Rating: 5 (1 reviews)

Stainless steel Flue gas system D1 with a wall thickness of 0.5 mm for building new and renovation of existing flue gas systems.

Due to high versatility, ideal for both easy and difficult installation situations. Suitable for all standard furnaces in negative pressure operation, in dry or wet operating mode.

(1)

Accessories

Model	Quantity	Price	Show all details

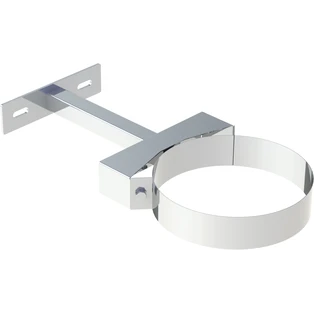

Wall bracket 50 - 150 mm adjustable
Wall bracket 150 - 250 mm adjustable

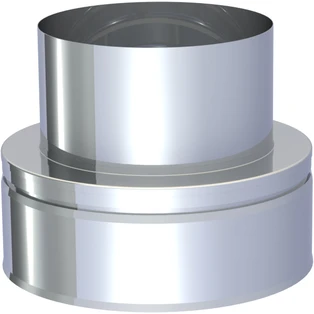

Adaptor E1 to D1
Adaptor D1 to E1
End cap
Guy-wire bracket
Lightning protection clamp
Rain cap
Soot pan
Storm collar
Storm collar with rim
Tee-cap with handle

Base plate

Model	Quantity	Price	Show all details
for chimney raise
For intermediate support
For pedestal mounting
With condensate drain at the bottom
With condensate drain on the side

Fire stop

Model	Angular size	Quantity	Price	Show all details
Firestop spacer one-piece	0°

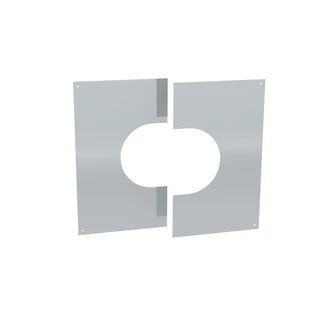

Firestop spacer split	0°
Firestop spacer split	0 .. 30°
Firestop spacer split	31 .. 45°

Flue pipe elbow

Model	Angular size	Quantity	Price	Show all details
Clean-out element with door	90°
Standard pipe	15°
Standard pipe	30°
Standard pipe	45°
Standard pipe	90°

Flue pipe straight

Model	Length [mm]	Quantity	Price	Show all details
Clean-out element with door	428
Clean-out element with door	300, 428

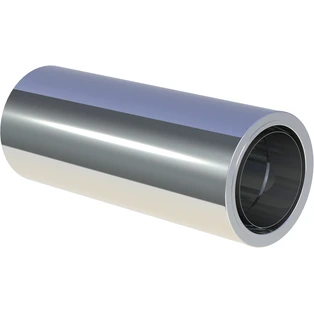

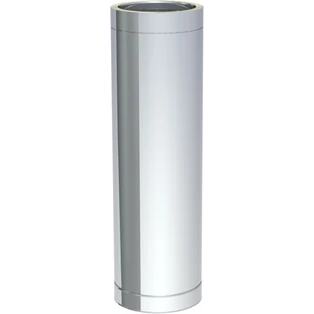

Standard pipe	1,000
Standard pipe	500
Standard pipe	250
Teleskopic tube	60 .. 520
Teleskopic tube	60 .. 1,115
With wall lining	500

Holder

Model	Length [mm]	Quantity	Price	Show all details
Ceiling suspension
Roof bracing bracket	500 .. 1,000
Roof bracing bracket	920
Wall bracket	250
Wall bracket	50
Wall bracket
Wall bracket	50 .. 250
Wall bracket	50 .. 360
Wall bracket	50 .. 70

Pipe tee connection

Model	Angular size	Quantity	Price	Show all details
With clean-out door	90°
With water drip	45°
With water drip	90°

Roof flashing

Model	Roof pitch	Quantity	Price	Show all details
Flat-roof flashing	0°
With lead rim and storm collar	26 .. 35°
With lead rim and storm collar	5 .. 15°
With lead rim and storm collar	36 .. 45°
With lead rim and storm collar	16 .. 25°
With storm collar	26 .. 35°
With storm collar	5 .. 15°
With storm collar	16 .. 25°
With storm collar	36 .. 45°
