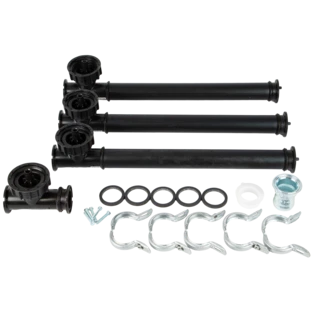

The spare part package for the filling line is used as quick mounting system for Dehoust PE bandage tanks from 1,000-2,000 l installed as a battery. It is equipped with a LORO-X flange for on-site filling line...
All product information Scope of deliveryThe spare part package for the filling line is used as quick mounting system for Dehoust PE bandage tanks from 1,000-2,000 l installed as a battery. It is equipped with a LORO-X flange for on-site filling line. The lines can only replace corrugated pipes if the centre-to-centre distance of the tanks can be increased to 760 mm.

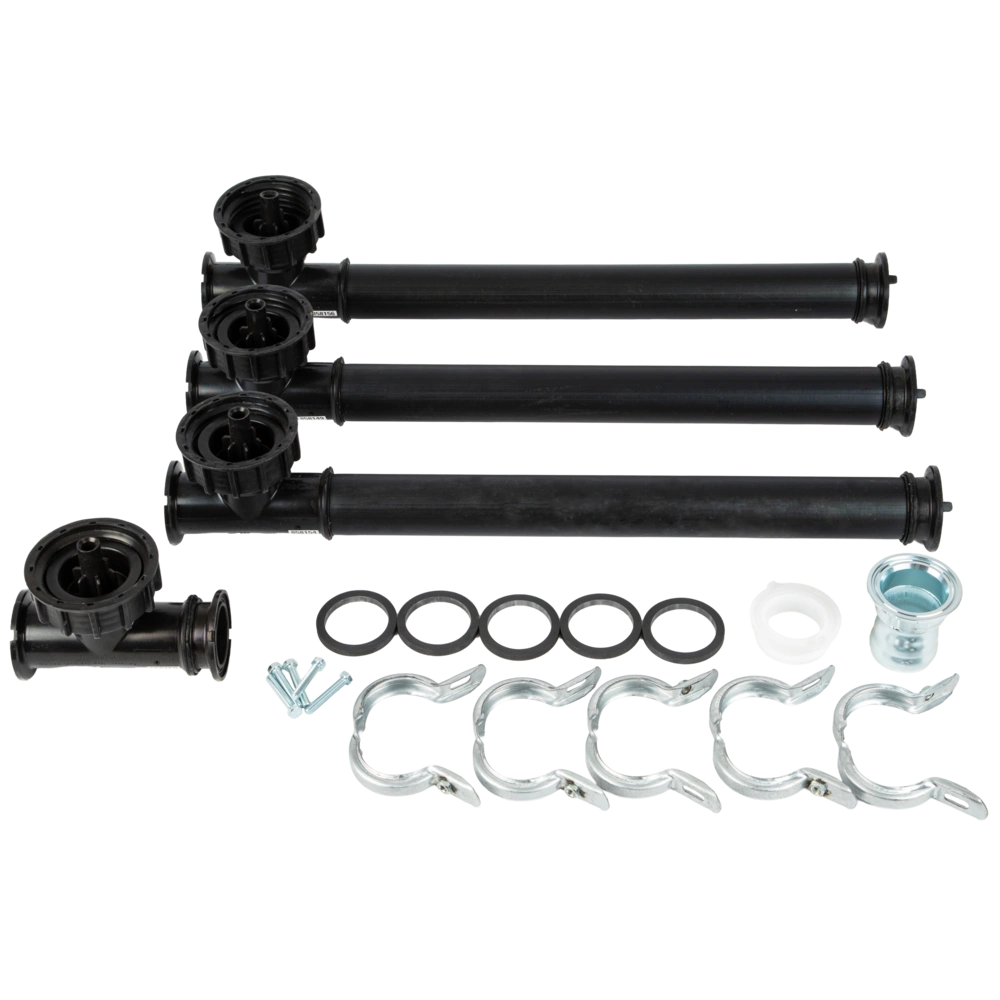

Scope of delivery: | |||
1 x | tee | ||
3 x | T-connecting pipe | ||
1 x | Loro-X flange | ||
1 x | blind flange | ||
4 x | immersion pipe | ||
5 x | profile clamp | ||
5 x | M8 screw for profile clamp | ||
5 x | washer for screw | ||
5 x | seal filling line |
For more information see Downloads
OEG no. | 118305285 |
Model: | 4-row battery |
Distance: | 760 mm tank centre distance |
Manufacturer | Dehoust |
Manufacturer number | 73262 |
Weight [kg] | 0.6 |
Customs tariff number | 39173200 |
