OEG no. : 512239316
Related products
The AIRFIX-A diaphragm pressure expansion vessel is suitable for use in hot-water and pressure boosting systems with flow-through technology.
Technical data:
- connection: ¾"
- diameter: 437 mm
- height: 473 mm...
Related products

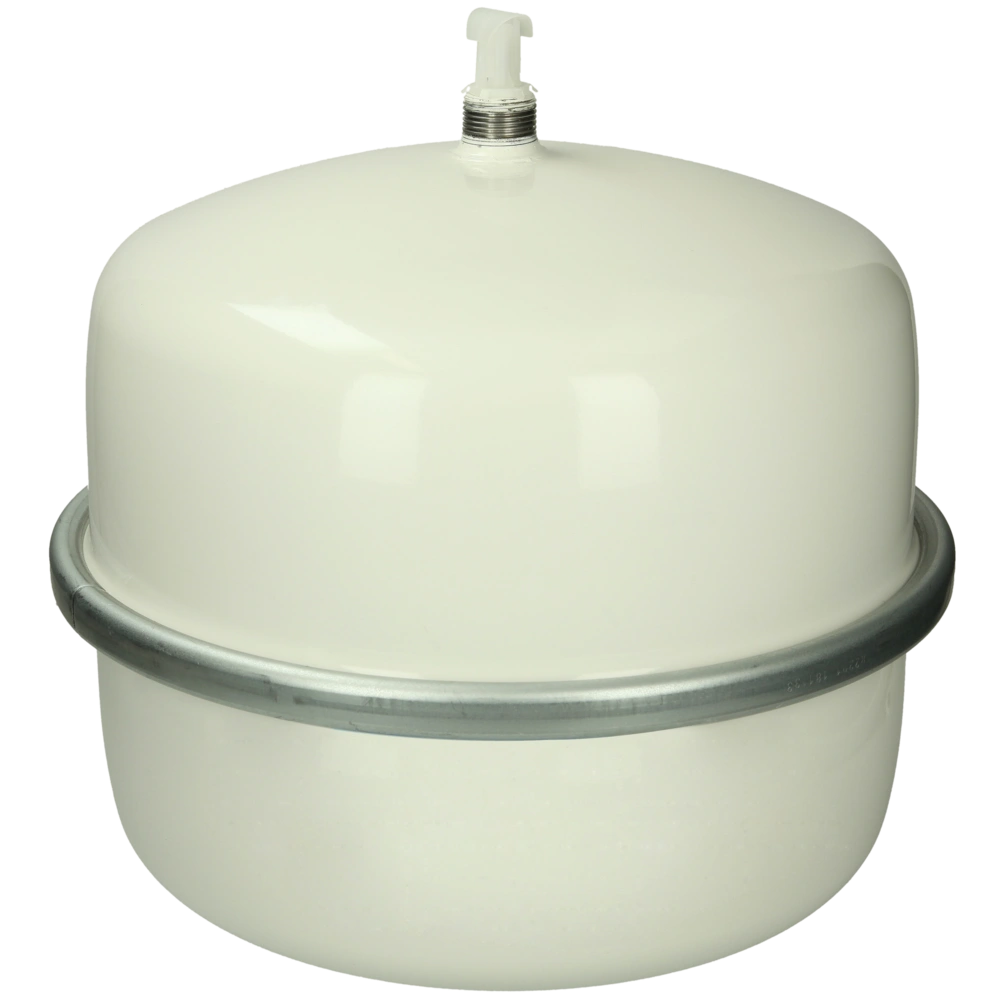

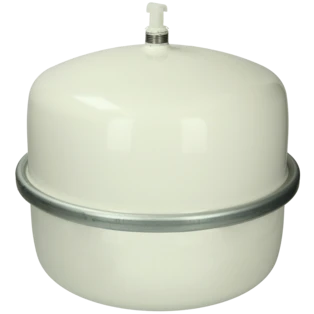

The AIRFIX-A diaphragm pressure expansion vessel is suitable for use in hot-water and pressure boosting systems with flow-through technology.
Technical data:
- connection: ¾"
- diameter: 437 mm
- height: 473 mm
- maximum operating temperature: +70° C / 343 K
- maximum operating overpressure: 8.0 bar
- initial pressure: 4 bar
- DIN-DVGW approved
- complies with the KTW-C recommendations and fulfills the requirements of
DIN 4807/5
- approved in accordance with EC Pressure Equipment Directive 97/23/EC
For more information see Downloads
| OEG no. | 512239316 |
| Colour: |
 White
|
| Type: | AIRFIX A |
| Pre-charge pressure [bar]: | 4 |
| Capacity [l]: | 50 |
| EAN | 8712874247499 |
| Weight [kg] | 11.2 |
| Customs tariff number | 84798997 (NL) |
