Diaphragm expansion vessel for solar thermal systems in accordance with DIN EN 12976 and ENV 12977 (DIN 4757). The diaphragm is permanently installed in the internally coated vessel. The product is supplied with support feet...
All product informationCE

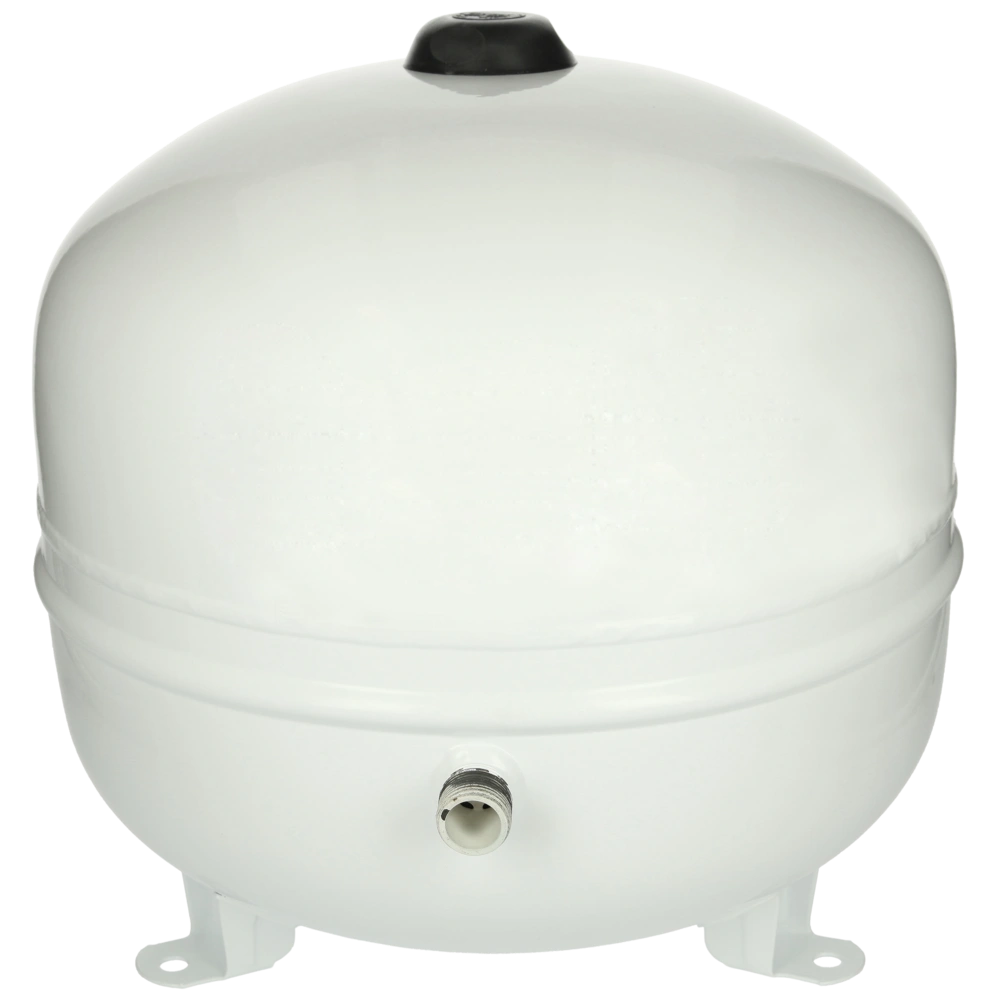

Diaphragm expansion vessel for solar thermal systems in accordance with DIN EN 12976 and ENV 12977 (DIN 4757). The diaphragm is permanently installed in the internally coated vessel. The product is supplied with support feet. It can be used for systems with a glycol content of up to 70% in the fluid cycle. It is approved according to Pressure Equipment Directive 97/23/EU.
For more information see Downloads
OEG no. | 516001245 |
Type: | Solarplus |
Capacity [l]: | 50 |
Operating pressure max. [bar]: | 10 |
Connection size [inch]: | 3/4 |
Length x Diameter [mm]: | 537 x 380 |
Standard: | EN 12976, EN 13831, ENV 12977 |
Operating temperature max. [°C]: | 110 |
Membrane: | Fixed |
Pre-charge pressure [bar]: | 2.5 |
Manufacturer | Zilmet |
Manufacturer number | 11A2005014 |
Weight [kg] | 5.37 |
Notes |
CE |
Customs tariff number | 84798997 (IT) |
