Expansion plug for pre-positioned and push-through installation in almost all building materials. As the plug expands in two directions only, it is possible to direct the expansion forces so that they...
All product informationRelated products
Suitable for concrete
Suitable for solid brick
Suitable for full bricks made of lightweight concrete
natural stones
sand-lime brick

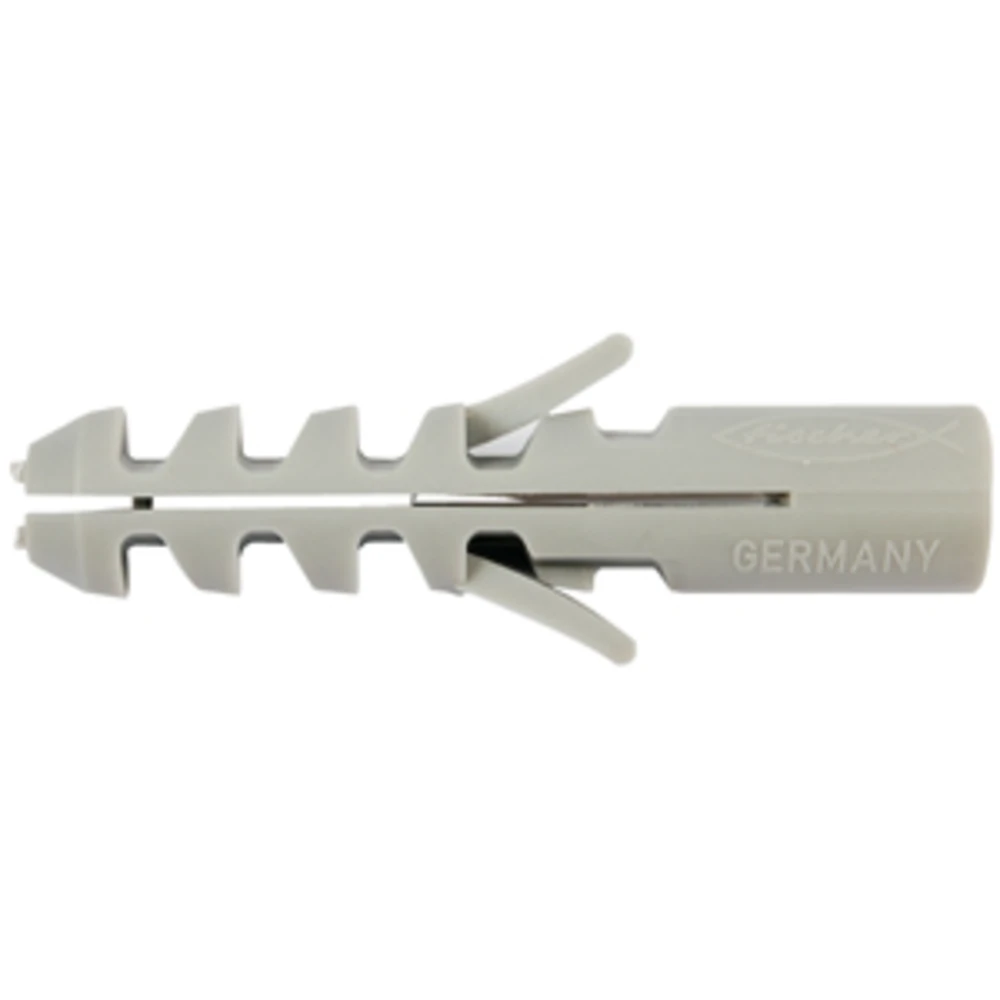

Expansion plug for pre-positioned and push-through installation in almost all building materials. As the plug expands in two directions only, it is possible to direct the expansion forces so that they run parallel to the edge of the building material by turning the plug. This prevents the building material from spalling due to fixings close to the edge. The slimline wall plug geometry makes it easy to insert the plug into the drill hole for a fast and simple installation The anti-rotation lock prevents the plug from rotating in the drill hole, thus, guaranteeing a high level of installation safety.
For more information see Downloads
| OEG no. | 806010055 |
| PU | 20 pieces |
| Type: | Expansion wall plug S |
| Dowel diameter [mm]: | 14 |
| Dowel length [mm]: | 75 |
| Matching screw diameter [mm]: | 10.0 - 12.0 |
| Bore hole diameter [mm]: | 14 |
| Bore hole depth min. [mm]: | 90 |
| Mounting type: | Pre-positioned installation, Push-through installation |
| Material: | Nylon |
| Manufacturer | Fischer |
| Manufacturer number | 50114 |
| EAN | 4006209501146 |
| Also replaces |
|
| Weight [kg] | 0.19 |
| Notes |
Suitable for concrete
Suitable for solid brick
Suitable for full bricks made of lightweight concrete
natural stones
sand-lime brick
|
| Customs tariff number | 39269097 |
