Check valve suitable for water supply, heating, air-conditioning or compressed-air systems. The valve can be installed horizontally, vertically or obliquely. Its body is made of brass with a valve...
All product informationEAC

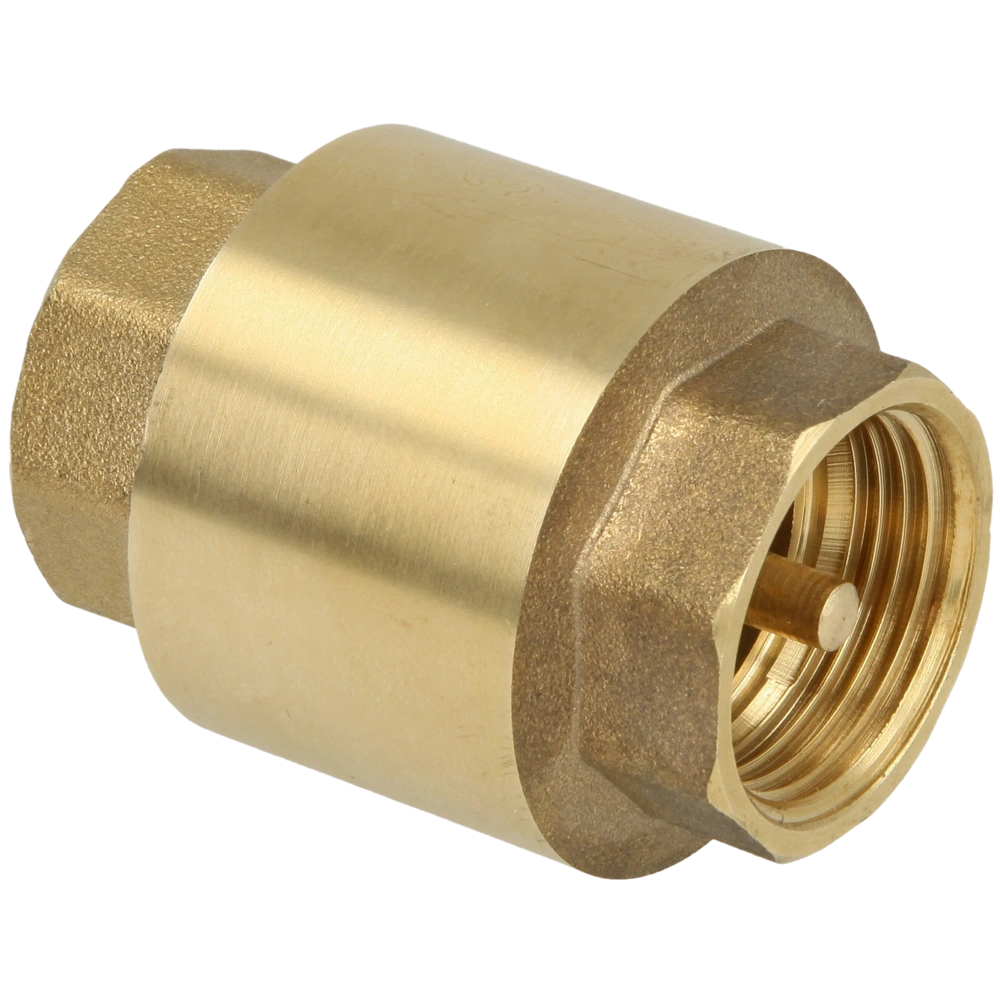

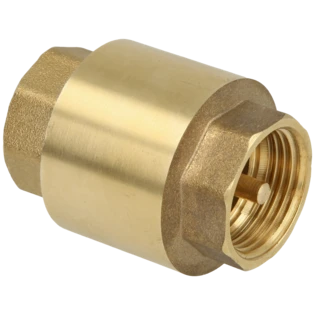

Check valve suitable for water supply, heating, air-conditioning or compressed-air systems. The valve can be installed horizontally, vertically or obliquely. Its body is made of brass with a valve insert and spring made of stainless steel and an NBR washer.
For more information see Downloads
OEG no. | 512251270 |
Connection size: | 3/4" |
Type of connection: | Female thread | Female thread |
Operating pressure max. [bar]: | 25 |
Mounting type: | Horizontal, Oblique, Vertical |
Total length [mm]: | 65 |
Thread: | ISO228 |
Type of seal: | NBR |
DIN: | EN ISO 228 + BS EN ISO 228 |
Material: | Brass |
Operating temperature [°C]: | -20 .. 100 |
Manufacturer | Itap |
EAN | 8023298009243 |
Weight [kg] | 0.12 |
Notes |
EAC |
Customs tariff number | 84813099 (CN) |
