Installation kit for fastening down-pipes or other elements in ETICS façades such as EPS, XPS, PUR as well as in wood fibre insulation boards. The adjustable hanger bolt compensates for unevennesses...
All product information Scope of deliveryRelated products
Suitable for EPS
Suitable for XPS
Suitable for PUR
Suitable for wood-fibre insulation boards
Installation kit for fastening down-pipes or other elements in ETICS façades such as EPS, XPS, PUR as well as in wood fibre insulation boards. The adjustable hanger bolt compensates for unevennesses in the façade, and the insulation wall plug provides for thermal separation without thermal bridges. The flexible cover cap protects against rain and spray, while the protective sleeve prevents soiling of the thread during plastering. Mounting before and after plastering by means of the included setting tool.

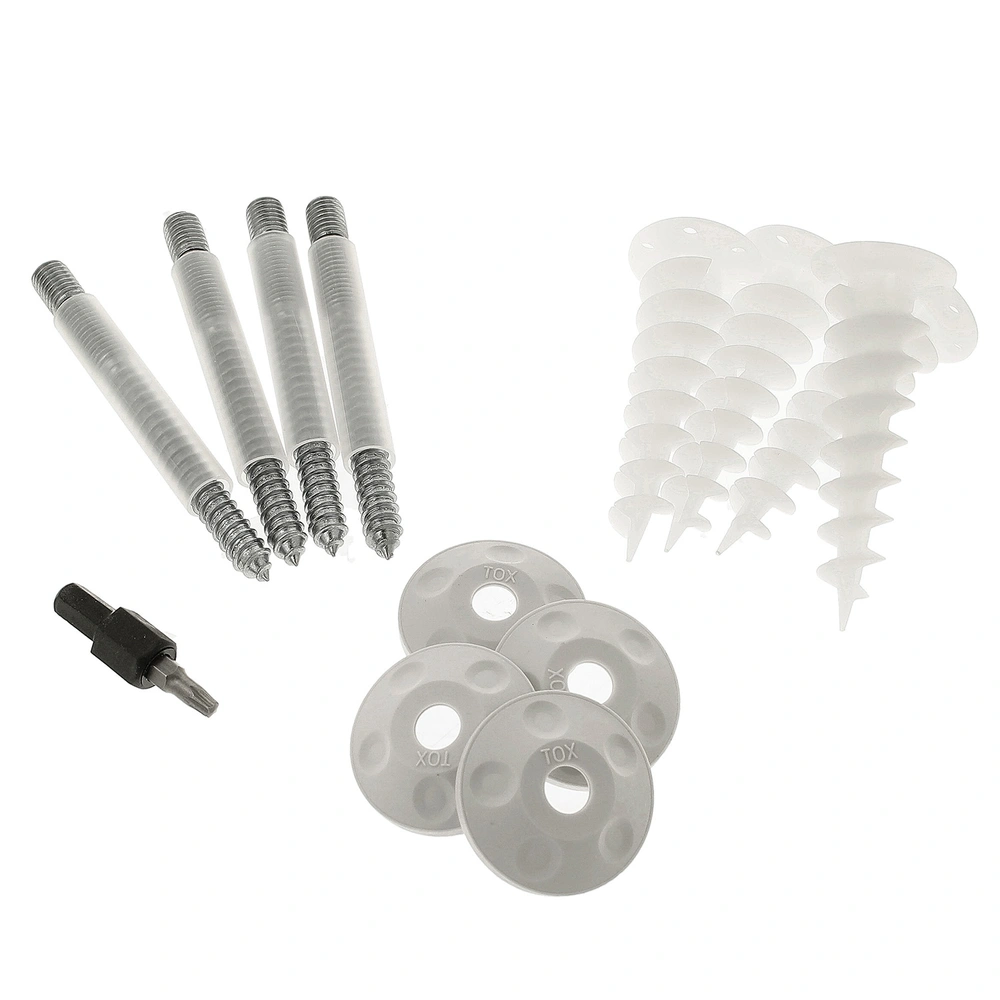

| Scope of delivery: | |||
| 4 x | Hanger bolt M10 x 110 mm | ||
| 4 x | Thermo Plus insulation wall plug 85 mm | ||
| 4 x | Cover cap Ø 40 mm | ||
| 4 x | Protective sleeve 65 mm | ||
| 1 x | setting tool SW 12 bit | ||
| Suitable for: | |||
|

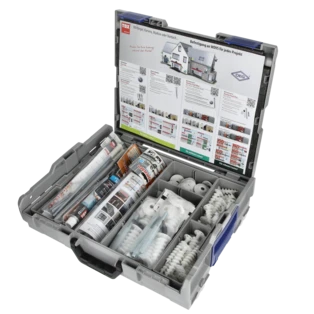

L-BOXX® assortment for fixings and assemblies in thermal insulation composite systems | ||
For more information see Downloads
| OEG no. | 806001546 |
| PU | 4 pieces |
| Type: | Downpipe fastening |
| Type: | Thermo Vario |
| Matching screw diameter [mm]: | 10.0 |
| Screw length [mm]: | 110 |
| Dowel length [mm]: | 85 |
| Thickness of insulation layer [mm]: | 100 |
| Setting depth min. [mm]: | 85 |
| Wall distance [mm]: | 30 .. 60 |
| Manufacturer | Tox |
| Manufacturer number | 072600351 |
| EAN | 4049563023770 |
| Weight [kg] | 1.28 |
| Notes |
Suitable for EPS
Suitable for XPS
Suitable for PUR
Suitable for wood-fibre insulation boards
|
| Customs tariff number | 73181900 |
