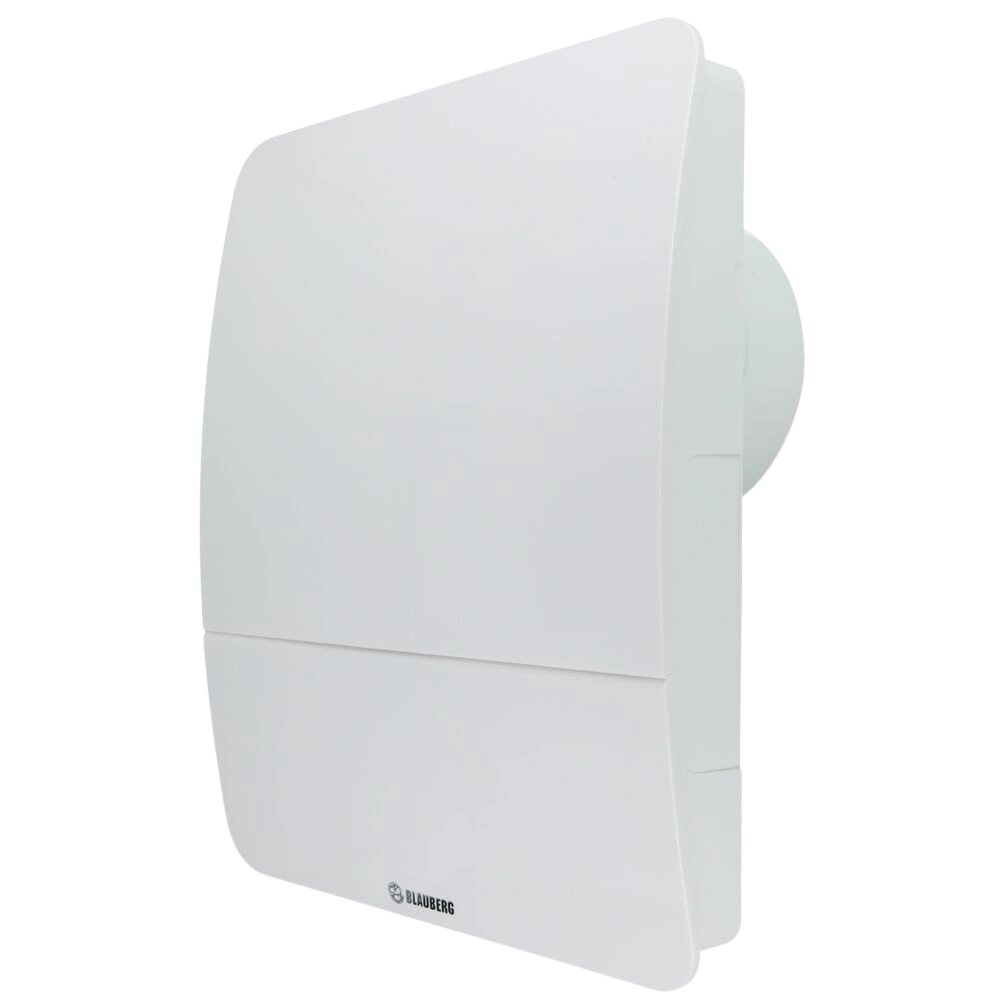

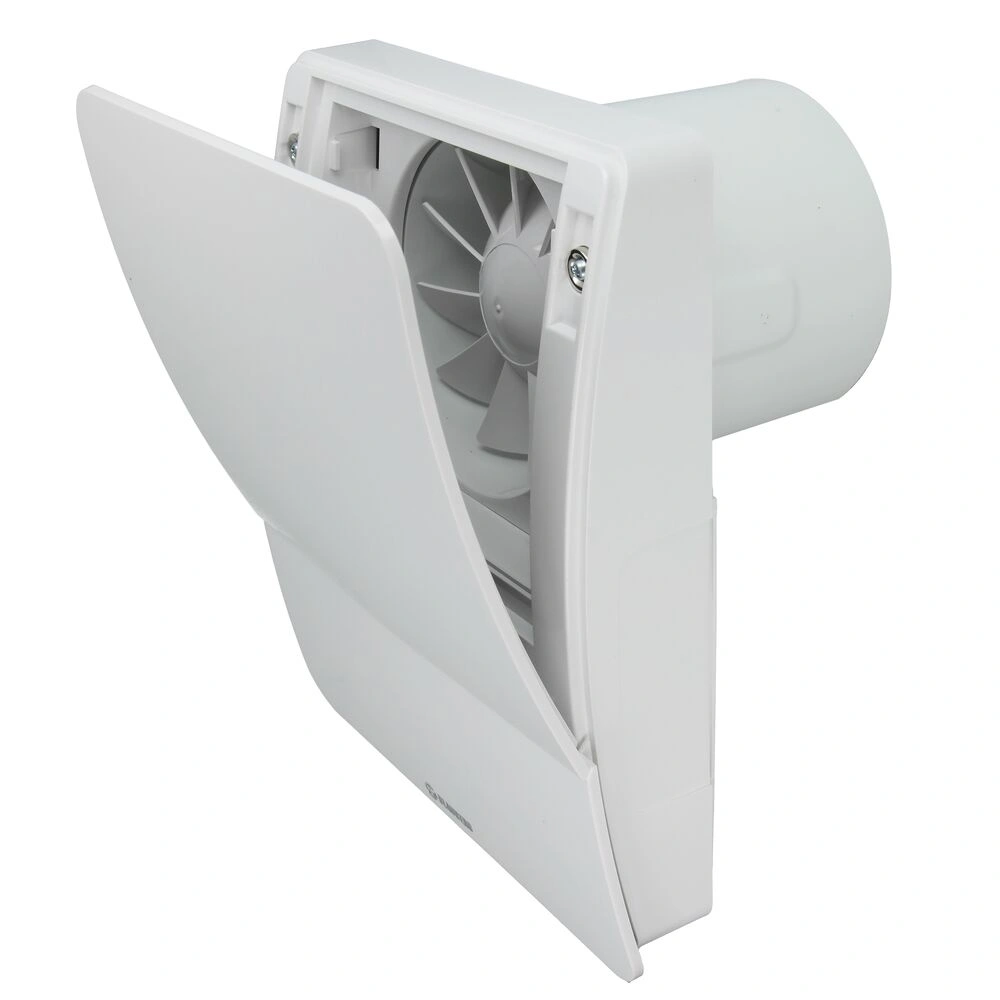

Low-noise extract fan with automatic shutter. The impeller is operated by a maintenance-free ball-bearing motor with minimal energy consumption. This model is additionally fitted with a timer function...
All product informationHumidity sensor
Timer
CE
GS-certified

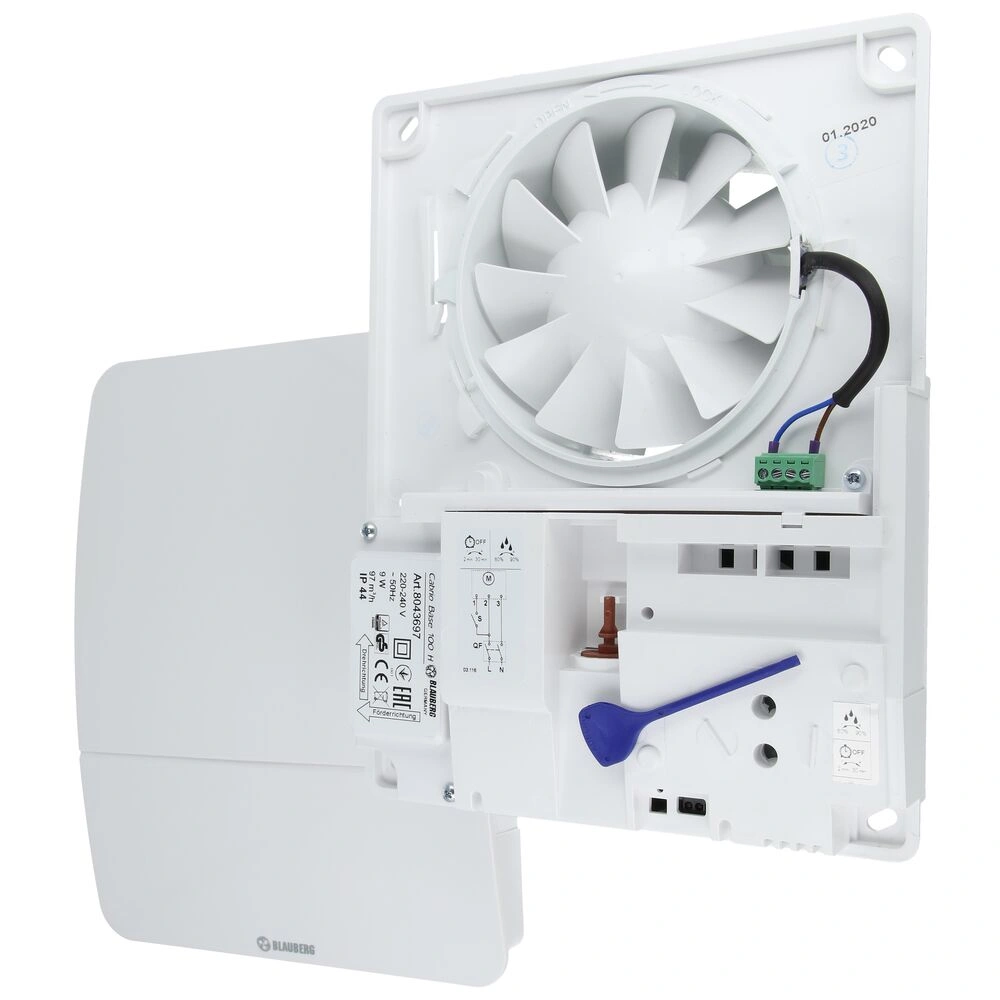

Low-noise extract fan with automatic shutter. The impeller is operated by a maintenance-free ball-bearing motor with minimal energy consumption. This model is additionally fitted with a timer function which can be used for programming the off-delay switch, the start delay and the interval timer. Base 100 H also has a humidity sensor with an adjustment range from 60 up to 90 %.
For more information see Downloads
OEG no. | 745000310 |
Type: | Cabrio Base |
Model: | Humidity sensor, Timer |
Mounting type: | Wall mounting |
Output [W]: | 9 |
Voltage [V]: | 230 |
Pipe diameter [mm]: | 100 |
Speed max. [1/min]: | 2,160 |
Protection type [IP]: |
IP44 |
Length x Width x Height [mm]: | 77 x 175 x 221 |
Ambient temperature [°C]: | 1 .. 45 |
Delivery rate [m³/h]: | 97 |
Sound pressure level [dB]: | 25 |
Manufacturer | Blauberg |
Manufacturer number | 8043697 |
EAN | 4058448043697 |
Weight [kg] | 0.55 |
Notes |
Humidity sensor Timer CE GS-certified |
Customs tariff number | 84145995 |
