Domestic exhaust fan 100 mm diameter 8037948
OEG no.: 745000307
The domestic exhaust fan Cabrio Base 100 is an innovative and low-noise extract fan with automatic shutter. It can be used for ø 100 mm air ducts. The impeller is operated by a maintenance-free ball-bearing...
All product informationRelated products
CE
GS-certified

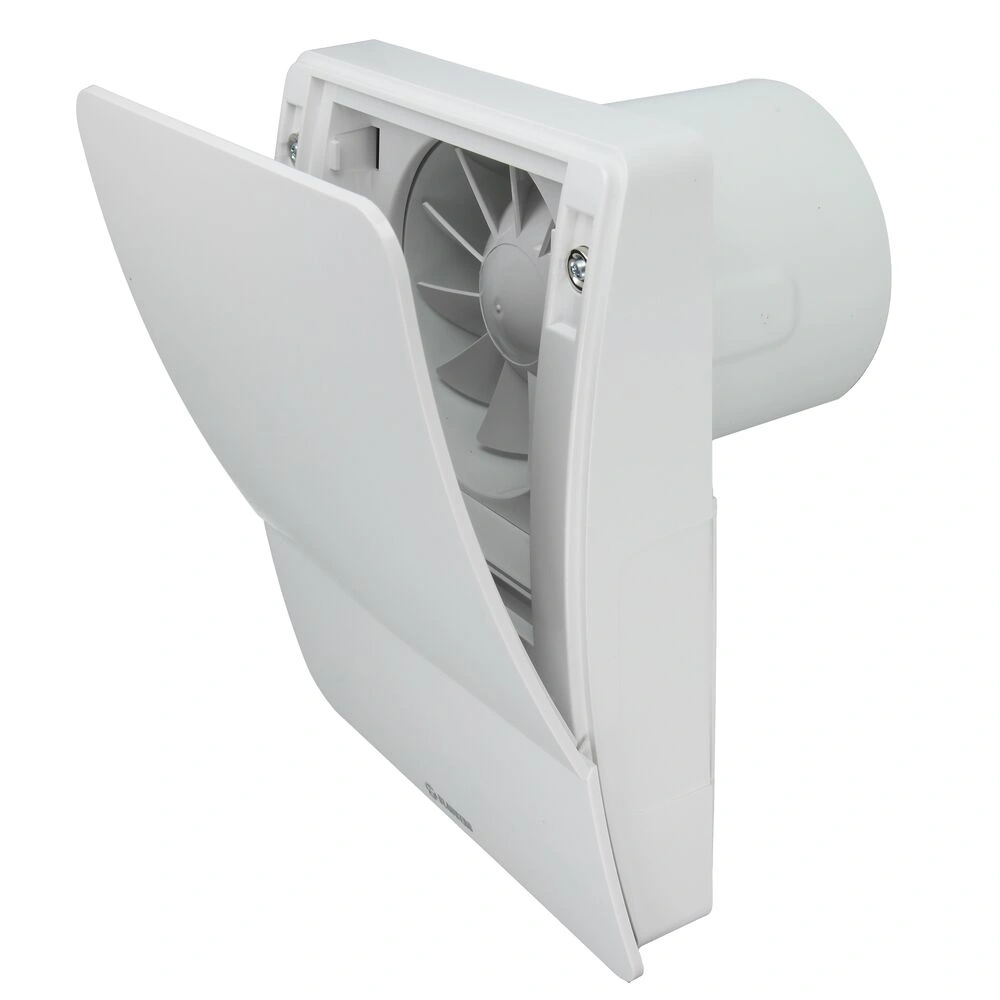

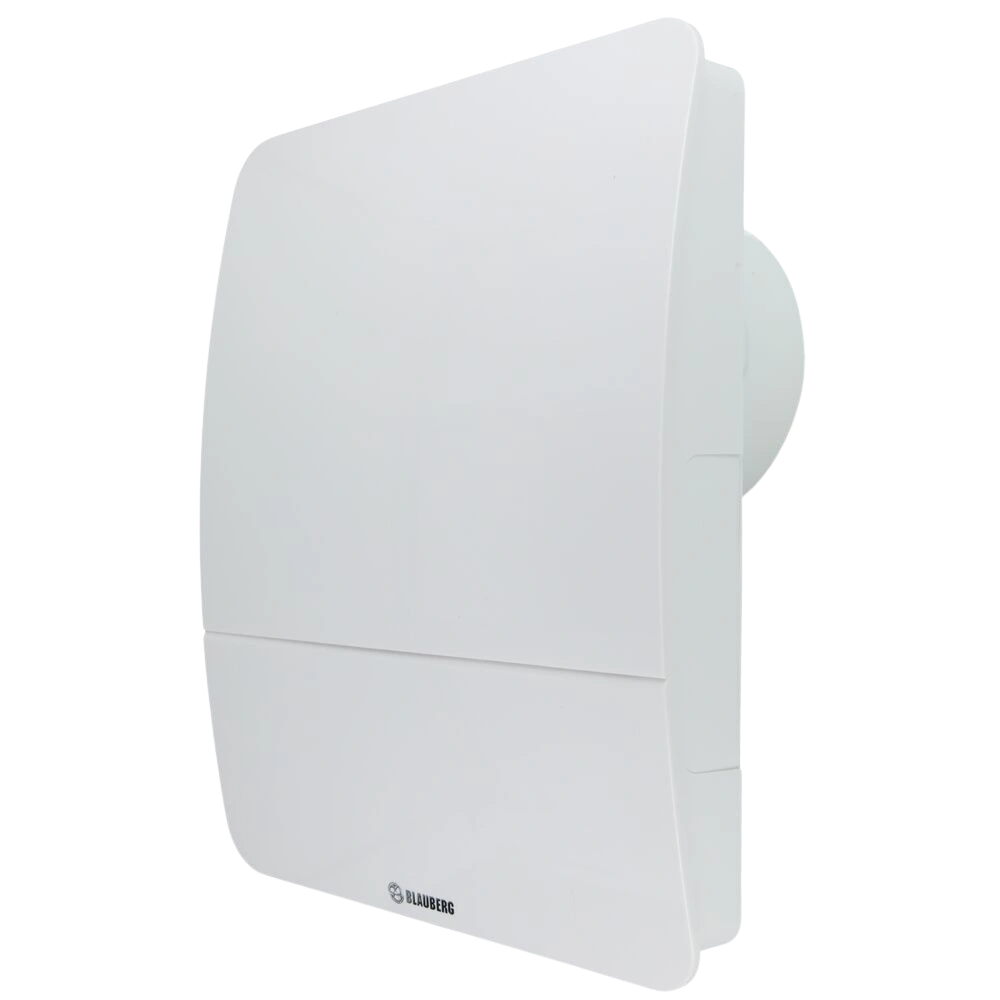

The domestic exhaust fan Cabrio Base 100 is an innovative and low-noise extract fan with automatic shutter. It can be used for ø 100 mm air ducts. The impeller is operated by a maintenance-free ball-bearing motor with minimum energy consumption. It is controlled via a separate switch. Thanks to the protection degree of IP44, the fan is ideal for bathrooms and WCs. It is supplied including screws and wall plugs.
For more information see Downloads
| OEG no. | 745000307 |
| Design: | Basic |
| Mounting type: | Wall mounting |
| Output [W]: | 9 |
| Voltage [V]: | 230 |
| Pipe diameter [mm]: | 100 |
| Protection type [IP]: |
 IP44
|
| Length x Width x Height [mm]: | 77 x 175 x 221 |
| Ambient temperature [°C]: | 1 .. 45 |
| Delivery rate [m³/h]: | 97 |
| Speed max. [1/min]: | 2,160 |
| Sound pressure level [dB]: | 25 |
| Type: | Cabrio Base |
| Manufacturer | Blauberg |
| Manufacturer number | 8037948 |
| EAN | 4058448037948 |
| Also replaces |
|
| Weight [kg] | 0.98 |
| Notes |
CE
GS-certified
|
| Customs tariff number | 84145995 |
