Digital pressure gauge for pressure and temperature measurement 8837
Precise digital pressure gauge for pressure measurement on gas fireplaces or of the chimney draught. Operating independently from its position and equipped with temperature compensation, absolute and...
All product information Scope of delivery
magnetic
High Quality

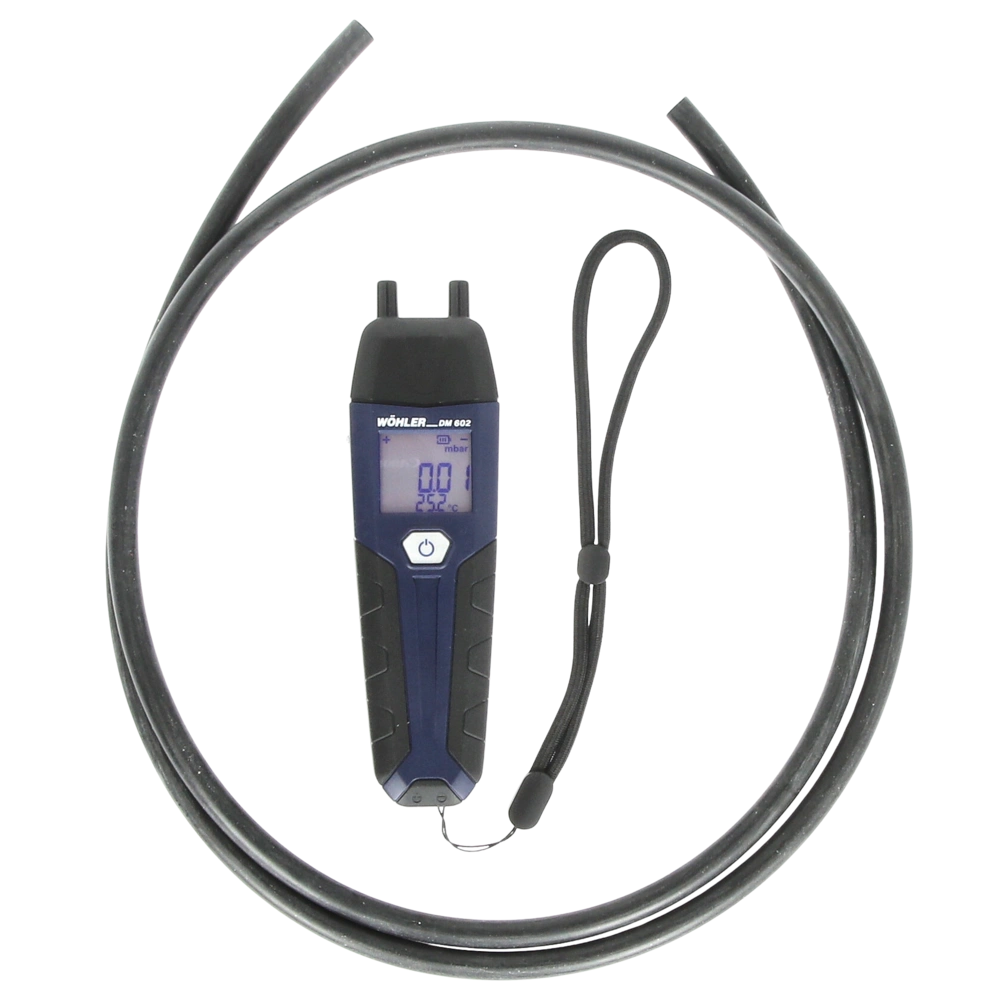

Precise digital pressure gauge for pressure measurement on gas fireplaces or of the chimney draught. Operating independently from its position and equipped with temperature compensation, absolute and differential pressures can be measured by this pressure gauge quickly and easily. The very fine resolution of 1 Pascal enables the precise setting of the differential fan pressure on gas-fired appliances. The device has an integrated temperature sensor, external type K sensors can be connected. The readings can be conveniently printed out via an infrared printer. When using rechargeable batteries, the instrument can be charged via the integrated USB-C port.
| Scope of delivery: | |||
| 1 x | Wohler DM 602 digital pressure gauge | ||
| 1 x | Measuring hose 1.5 m | ||
| 1 x | hand loop | ||
| 2 x |
Ultra Lithium 1.5V Mignon 2900mAh |
||
For more information see Downloads
| OEG no. | 310772023 |
| Type: | DM 602 |
| Measuring range [hPa]: | ± 3,000 hPa |
| Resolution: | 0.01 hPa in the range of -210 ... 210 hPa |
| Pressure max. [bar]: | 3.2 |
| Power supply: | Battery-operated |
| Length x Width x Height [mm]: | 170 x 47 x 29 |
| Measuring range temperature [°C]: | -20 .. 60 |
| Resolution [°C]: | 0.1 |
| Manufacturer | Wöhler |
| Manufacturer number | 8837 |
| Also replaces |
|
| Weight [kg] | 0.2 |
| Notes |
magnetic
High Quality
|
| Customs tariff number | 90262020 |
