Single-stage service oil burner pump with pressure-regulating valve and shut-off function. The oi burner pump is suitable for biodiesel, kerosene and heating oil EL. The heat-resistant diamond coil...
All product informationRelated products
CE
Biofuel

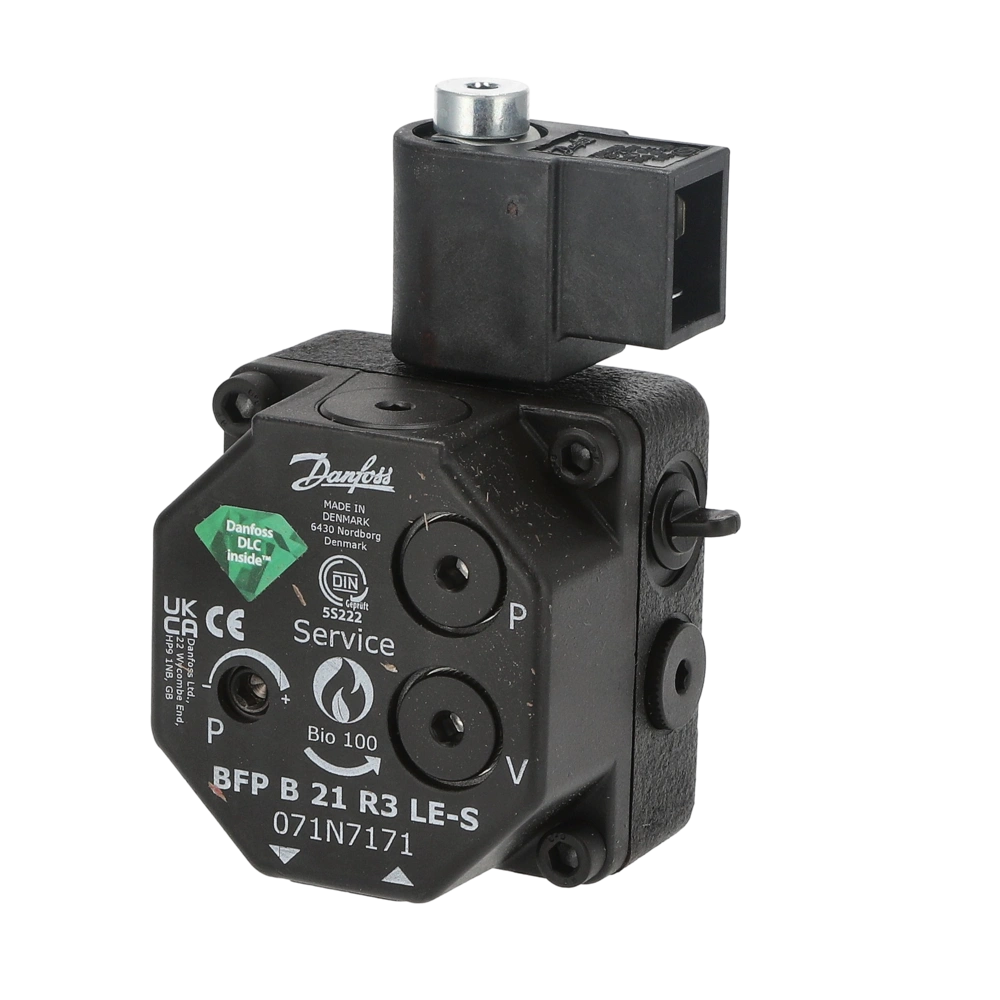

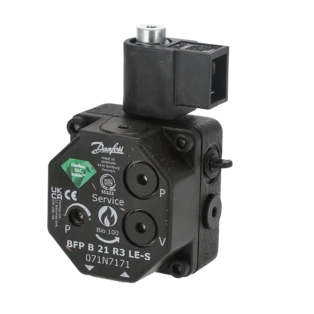

Single-stage service oil burner pump with pressure-regulating valve and shut-off function. The oi burner pump is suitable for biodiesel, kerosene and heating oil EL. The heat-resistant diamond coil and DLC coating of the mechanically stressed components result in an extended service life and increased operating safety.
Replaces service pump: BFP21 R3.
For more information see Downloads
| OEG no. | 112102015 |
| Oil pump direction of rotation: |
 Clockwise rotation
|
| Nozzle outlet: | On both sides |
| Model: | Single-stage, Pressure regulator with shut-off function |
| Speed [rpm]: | 2,400 - 3,450 |
| Connection size nozzle outlet [inch]: | 1/8 |
| Connection size flow and return [inch]: | 1/4 |
| Pump shaft: |
 1-surface
|
| Pressure [bar]: | 7 - 20 |
| Nozzle capacity: | 24 l/h |
| Protection type [IP]: |
 IP40
|
| Voltage [V]: | 230 ~ |
| Ambient temperature [°C]: | -20 .. 70 |
| Media temperature [°C]: | 0 .. 70 |
| Media: |
Biofuel
|
| Type: | BFPB 21 R3 LE-S |
| Manufacturer | Danfoss |
| Manufacturer number | 071N7171 |
| EAN | 5702425156328 |
| Also replaces |
|
| Weight [kg] | 1.18 |
| Notes |
CE
Biofuel
|
| Customs tariff number | 84136031 (DK) |
