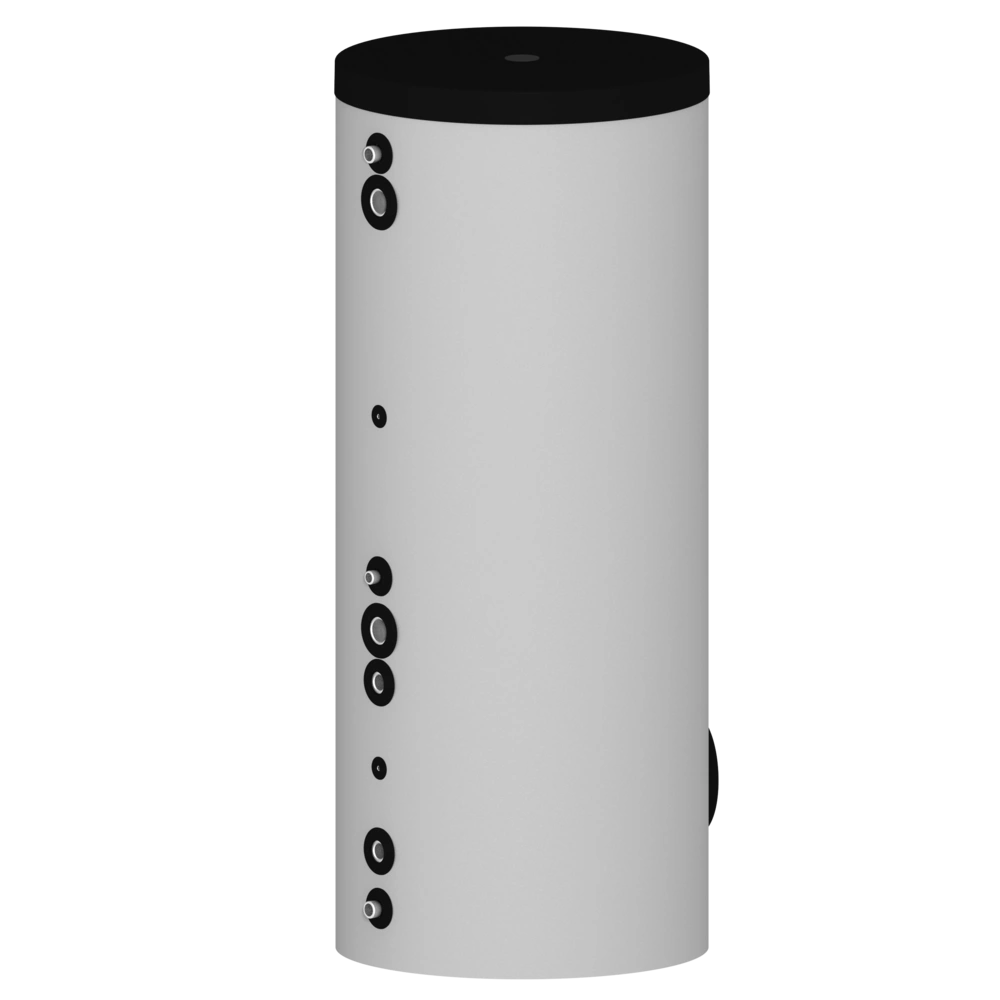

DHW storage tank 400 l with 2 smooth-pipe heat exchangers

OEG no.: 516005195
  • Heat pumps
Zoom DHW storage tank 400 l with 2 smooth-pipe heat exchangers
OEG no. : 516005195

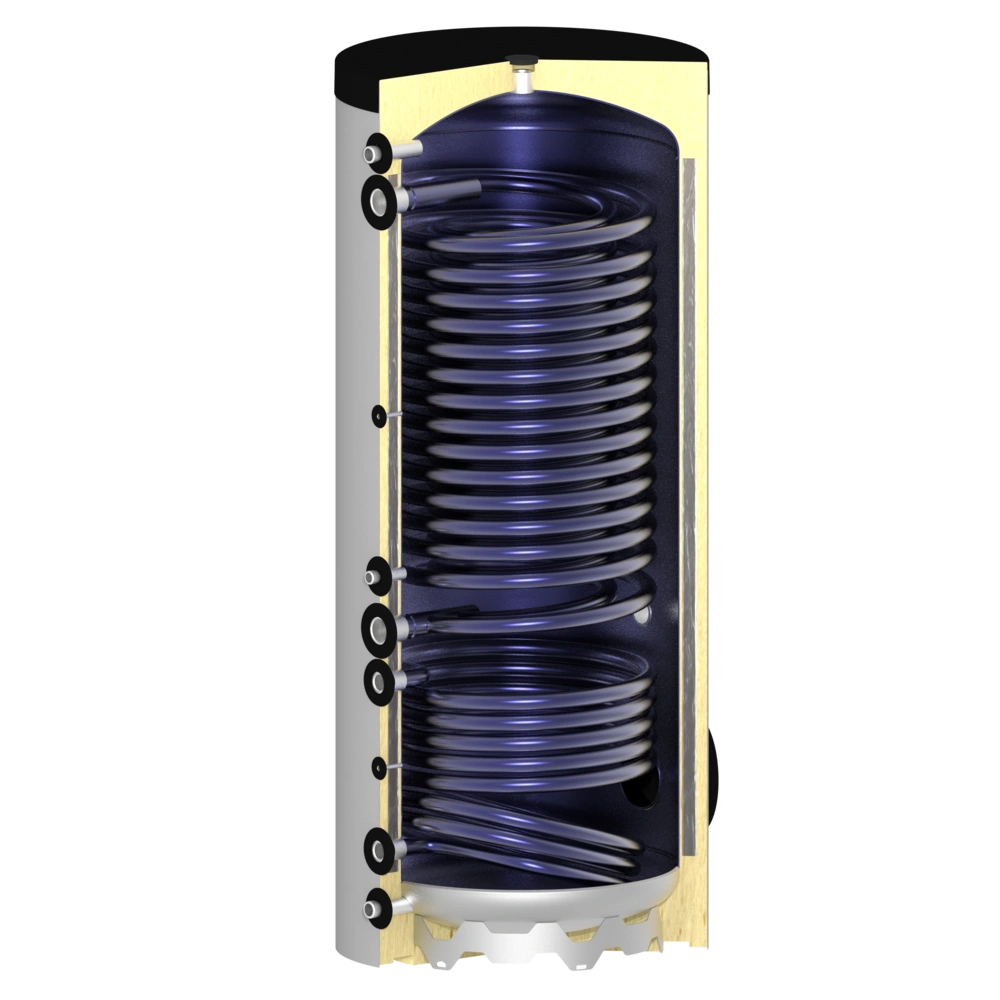

Premium DHW storage tank with particularly large, double heat exchanger coil for high heat transfer in combination with heat pumps and an additional coil for an alternative heat generator.

All product information
Storage tanks A+

Storage tanks A+

Storage tanks A+
Delivery by forwarding agency

Delivery by forwarding agency

Delivery by forwarding agency
High Quality

High Quality

High Quality
10-year warranty

10-year warranty

10-year warranty with highly efficient ThermoVac® vacuum insulation
  • Delivery by forwarding agency Delivery by forwarding agency
Wipe 'n' Buy ®
Wipe 'n' Buy

OEG no. 516005195
Recommended max. number of persons for DHW: 8
Recommended for: Heat pumps
Installation type: Vertical storage tank
Manufacturer OEG
Energy efficiency class A+
ErP-Label ErP-Label
Notes
Storage tanks A+

Storage tanks A+

Storage tanks A+
Delivery by forwarding agency

Delivery by forwarding agency

Delivery by forwarding agency
High Quality

High Quality

High Quality
10-year warranty

10-year warranty

10-year warranty with highly efficient ThermoVac® vacuum insulation
Customs tariff number 84191900

General
Colour: silver
Insulation according to DIN 4102-1 Fire Protection Class B2: solid foamed insulation
Weight [kg]: 180
Total height including insulation [mm]: 1725
Diameter with insulation [mm]: 710
Tilt height [mm]: 1865
Energy
Energy efficiency class according to EU regulation no. 812/2013: A+
Heat retaining loss according to EN 12897 [W]: 40
Heat losses in stand-by mode according to DIN 12897 [kW/h / 24 h]: 0,960
Output capacity (45°C) [l]: 628
Performance indicator NL following DIN 4708: 13
Tank
Real volume according to EN 12897 [l]: 412
pmax Tank [bar]: 10
tmax Tank [°C]: 95
tmin Tank [°C]: 20
Smooth-pipe heat exchanger
Smooth-pipe heat exchanger [number]: 2
Smooth-pipe heat exchanger area bottom [m²]: 1,30
Smooth-pipe heat exchanger area top [m²]: 4,04
Smooth-pipe heat exchanger volume bottom: 8,40
Smooth-pipe heat exchanger volume top: 26
pmax Smooth-pipe heat exchanger [bar]: 10
tmax Smooth-pipe heat exchanger [°C]: 130
Connections
Connection layout: 180°
Connection sensor [Ø mm / terminal]: 6 mm
Connection cold / hot water: R 1"
Connection heat generator [thread]: Rp 1 1/2"
Connection heat exchanger [thread]: Rp 1"
Connection circulation: R 3/4"
Connection heating element [thread]: Rp 1 1/2"
Service hatch (LK 150): 115 / 180
Max. immersion depth of flange heater [mm]: 540
Max. immersion depth of screw-in heater [mm]: 440
en
Question:

Hallo, kan de isolatie makkelijk verwijderd en terug geplaatst worden ?

Answer OEG:

Helaas niet.
