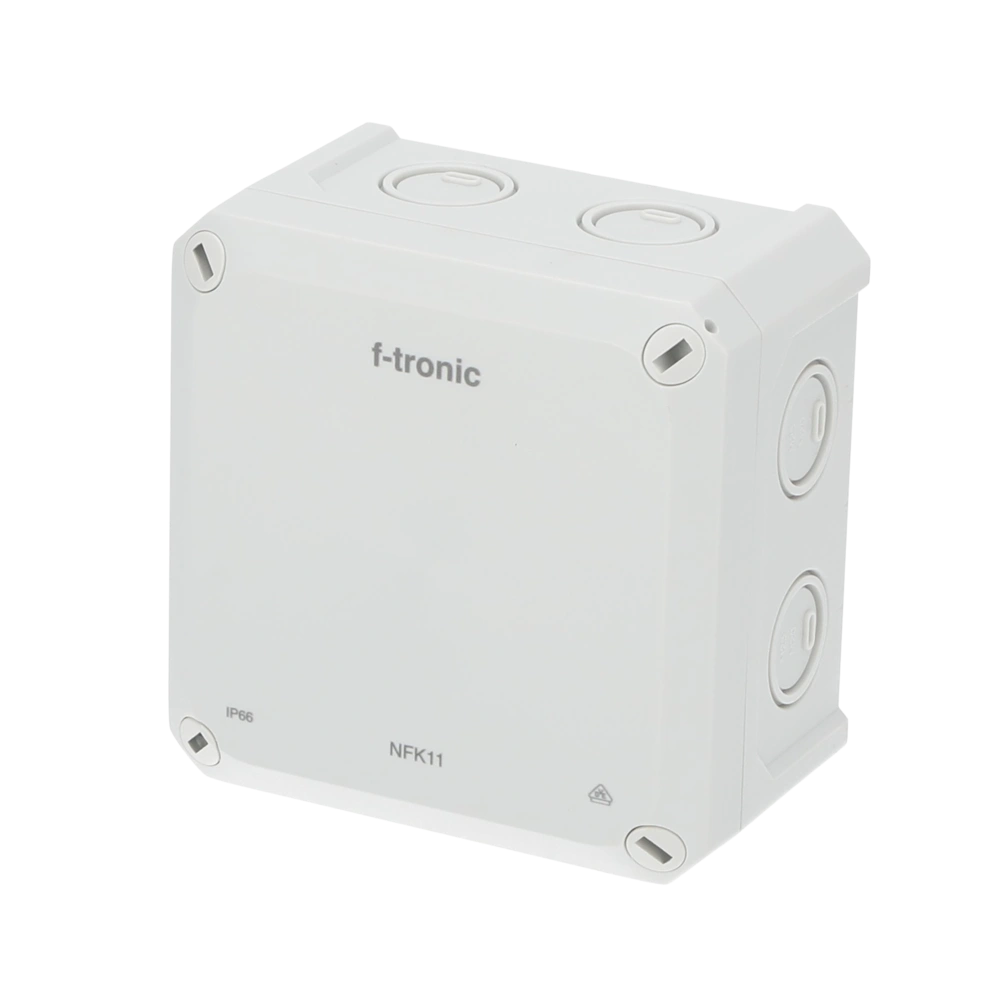

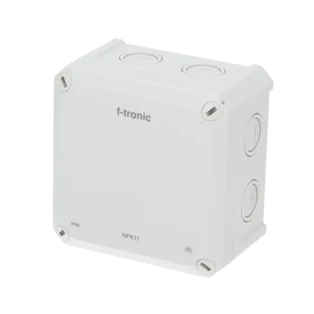

Distribution box for the use in damp areas. The distribution box has pre-punched cable entries. Up to seven cable entries with size M25 are possible. The distribution box is suitable for cables of up to 6 mm².
All product information Scope of deliveryCE
PU
Halogen-free
Distribution box for the use in damp areas. The distribution box has pre-punched cable entries. Up to seven cable entries with size M25 are possible. The distribution box is suitable for cables of up to 6 mm².
Scope of delivery: | |||
1 x | Junction box | ||
3 x | M20 double membrane seal | ||
2 x | M25 double membrane seal | ||
2 x | Screw cover | ||
1 x | External fixing lug |
For more information see Downloads
OEG no. | 709000376 |
Wire cross-section [mm²]: | 6 |
Material: | Polystyrene |
Length x Width x Height [mm]: | 110 x 110 x 67 |
Cable entries: | 9 |
Installation: | Surface-mounted |
Type: | NFK11GR |
Protection type [IP]: |
IP66 |
Manufacturer | F-Tronic |
Manufacturer number | 7340191 |
EAN | 4034338936904 |
Weight [kg] | 0.5 |
Notes |
CE PU Halogen-free |
Customs tariff number | 39269097 |
