Corrugated stainless steel pipe DN16 800 mm both ends 3/4" union nuts

OEG no.: 516002734
  • Also replaces
    schließen Also replaces:
    • 516002714 (Corrugated stainless steel pipe DN12 800 mm both sides ½" union nuts)

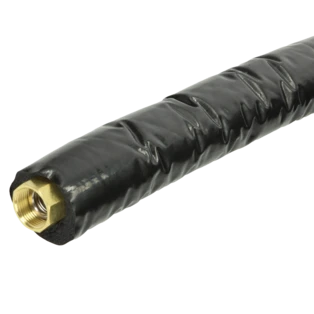

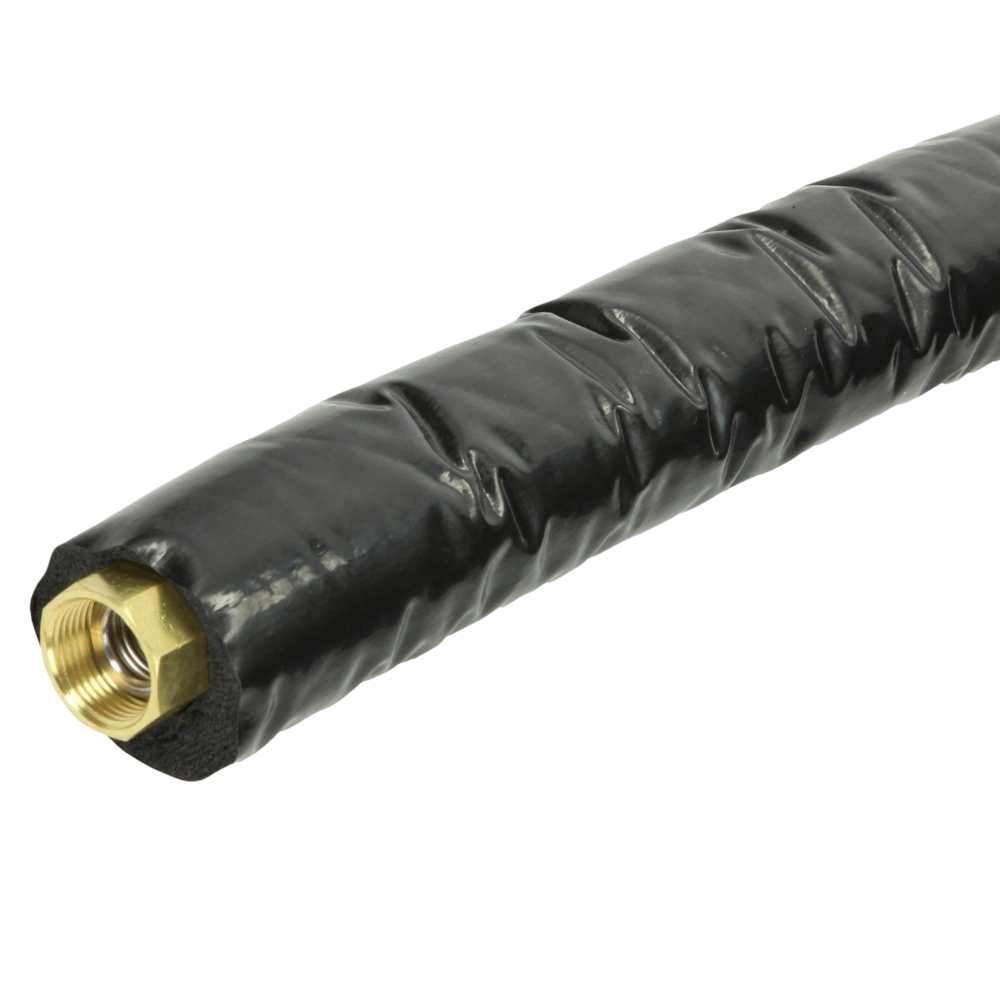

Zoom Corrugated stainless steel pipe DN16 800 mm both ends 3/4" union nuts
PU: 800 mm
Ratings and tips
(0)
Ask the first question about this item
OEG no. : 516002734

Fully assembled corrugated stainless steel pipe suitable for installation outdoors, in attics, ventilation ducts or inoperative chimney stacks. The corrugated pipe is fitted with flat-sealing brass...

All product information
Related products
Made by OEG

Made by OEG
Made by OEG
Wipe 'n' Buy ®
Wipe 'n' Buy

Fully assembled corrugated stainless steel pipe suitable for installation outdoors, in attics, ventilation ducts or inoperative chimney stacks. The corrugated pipe is fitted with flat-sealing brass union nuts and sheathed by a UV-resistant PE insulation.


For more information see Downloads


OEG no. 516002734
PU 800 mm
Connection size: 3/4"
Type: Corrugated tube
Type of connection: union nut
pmax Corrugated pipe [bar]: 10
tmax Corrugated pipe [°C]: 150
Nominal size: DN16
Thermal conductivity of insulation (at 40°) [W/mk]: 0,045
Insulation thickness [mm]: 13
Internal diameter [mm]: 16
Outer diameter [mm]: 48
Liquid content [l/m]: 0,30
Sound insulation: up to 30dB
Manufacturer OEG
Also replaces
  • 516002714 (Corrugated stainless steel pipe DN12 800 mm both sides ½" union nuts)
Weight [kg] 0.13
Notes
Made by OEG

Made by OEG
Made by OEG
Customs tariff number 83071000 (EEC)
