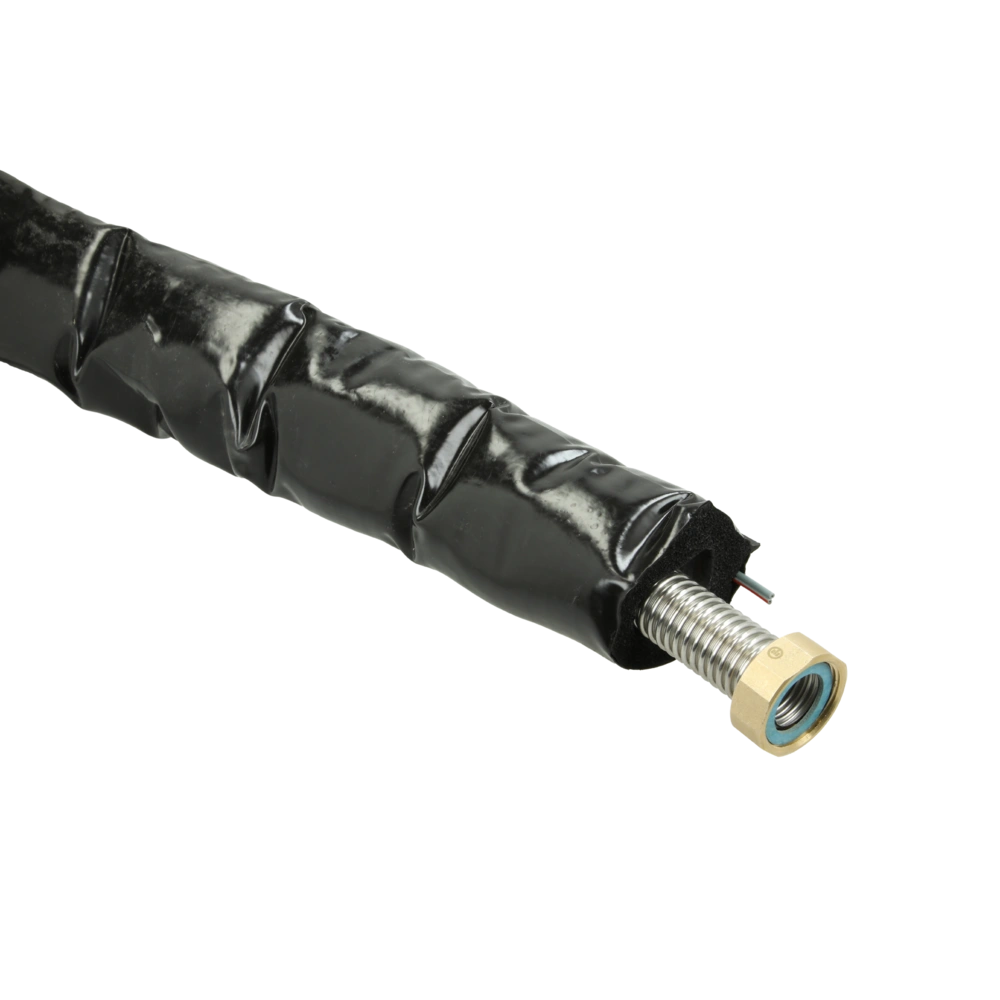

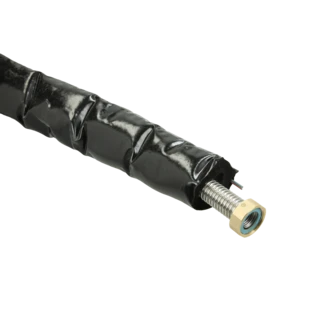

The OEG single corrugated stainless steel pipe was specifically developed for the use in solar systems. Together with a sensor cable, it is sheathed by an effective HT insulation. Due to the use of high-grade stainless steel (V4A), the corrugated pipe can be used versatilely in private, public and industrial areas in compliance with applicable regulations.
Advantages of the new insulation:
• robust insulating outer sheath made up of multi-layer, waterproof polyethylene (PE)
• high-quality, form-stable and elastic insulation made of waterproof, synthetic rubber (EPDM), the insulation thickness remains also largely constant with bends
• excellently low water absorption of ≤5% of EPDM
• easy and quick processing (a cutter knife is often sufficient) and laying
• excellent ageing resistance
• low thermal conductivity (I = 0.045 W/mK)
• temperature resistance permanent up to +150 °C (short-term up to +170 °C)
• good UV-resistance as well as weather and ozone resistance
• high chemical resistance
• good sound reduction
• Fire Protection Class B2
• control cable integrated in the insulation
• valuable appearance
For more information see Downloads
| OEG no. | 516002830 |
| PU | 5 metres |
| Type of connection: | union nut |
| pmax Corrugated pipe [bar]: | 6 |
| tmax Corrugated pipe [°C]: | 150 |
| Nominal size: | DN20 |
| Thermal conductivity of insulation (at 40°) [W/mk]: | 0,045 |
| Insulation thickness [mm]: | 19 |
| Internal diameter [mm]: | 20 |
| Outer diameter [mm]: | 66 |
| Liquid content [l/m]: | 0,40 |
| Sound insulation: | up to 30dB |
| Manufacturer | OEG |
| Also replaces |
|
| Weight [kg] | 5.85 |
| Notes |
Made by OEG
|
| Customs tariff number | 83071000 (EEC) |
