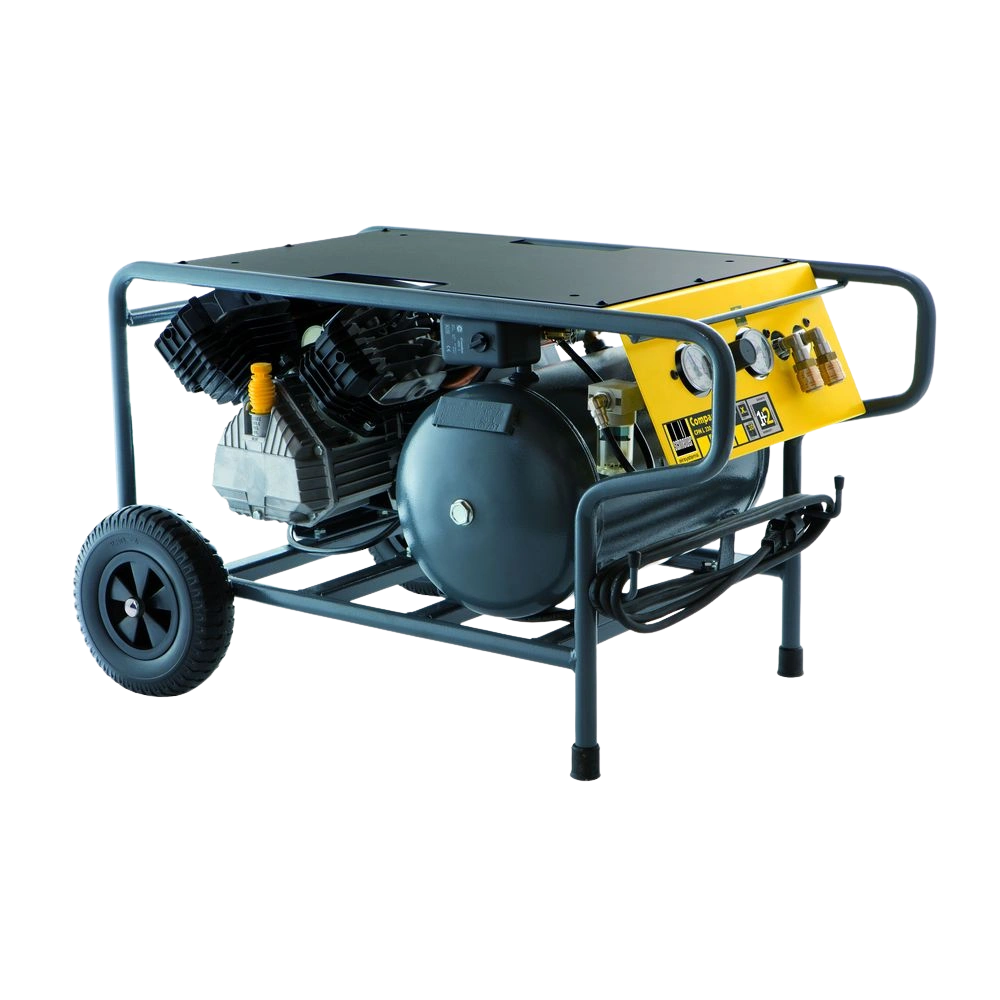

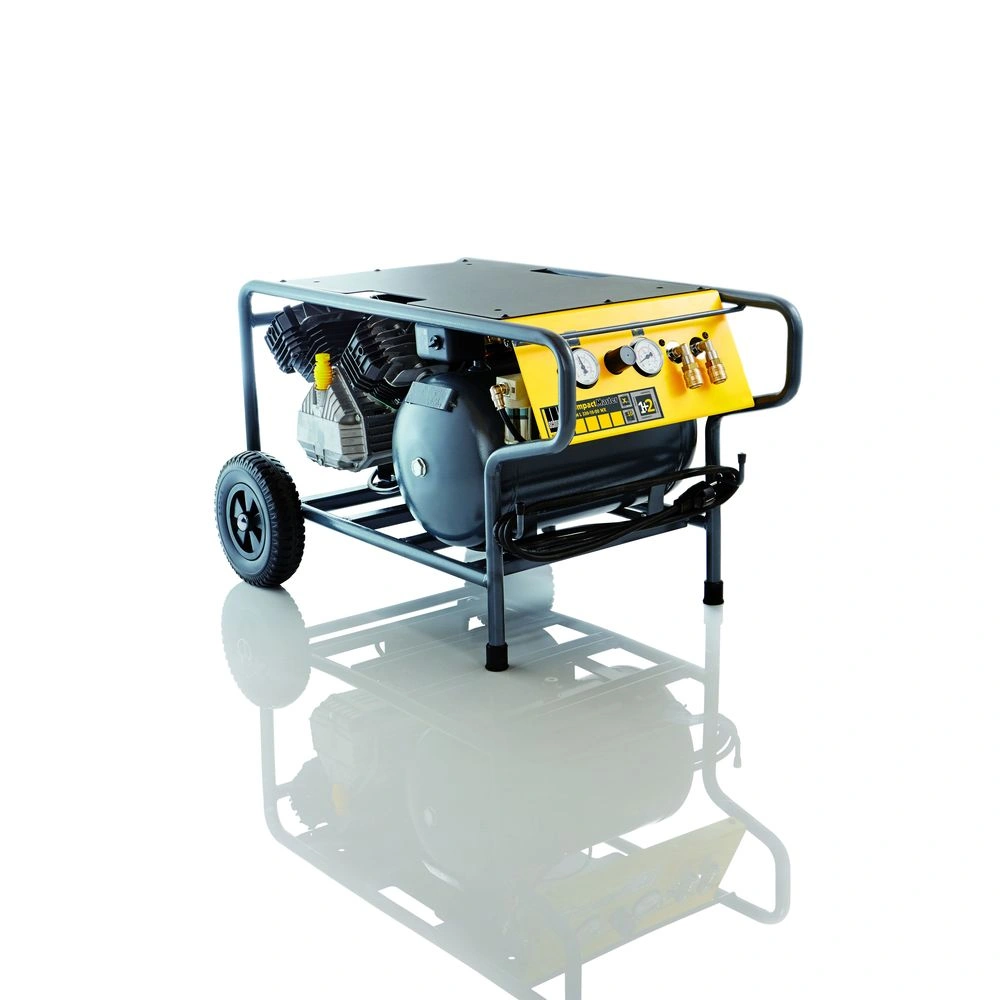

This is a mobile piston compressor particulalry designed for mobile use on construction sites and for interior fittings.
The compressor is characterized by its sturdy design and equipped with a powerful 2-cylinder V-aggregate...
Delivery by forwarding agency
This is a mobile piston compressor particulalry designed for mobile use on construction sites and for interior fittings.
The compressor is characterized by its sturdy design and equipped with a powerful 2-cylinder V-aggregate.
Thanks to its low speed, it runs very smoothly, quietly and with a reduced abrasion compared to other models.
All the breakable parts like pressure switch, pressure gauge and fittings are protected by a surrounding steel frame. The compressor features 200-mm solid rubber wheels and thus has a good ground clearance. Due to its flat and wide design, it remains stable on almost any substructure and can be combined with the optionally available adapter plate SYS-AP-CPM L
(OEG no.: 350131064).
Technical data:
- filling capacity: 210 l/min
- switch-on/off ressure: 8/10 bar
- suction capacity: 300 l/min.
- drive power: 1.8 kW
- container capacity: 20 l
- voltage: 230 Volt
- speed: 1,450 rpm
- dimensions (WxDxH): 830 x 560 x 480 mm
- weight: 49 kg
- noise dB(A): 97
OEG no. | 350131062 |
Pressure max. [bar]: | 10 |
Voltage [V]: | 230 |
Length x Width x Height [mm]: | 830 x 480 x 560 |
Noise emission [dB]: | 95 |
Capacity [l]: | 20 |
Speed max. [1/min]: | 1,450 |
Filling capacity [l/min]: | 210 |
Drive power [kW]: | 1.8 |
Suction capacity [l/min]: | 300 |
Manufacturer | Schneider |
Manufacturer number | 1121440050 |
EAN | 4011666022240 |
Weight [kg] | 55 |
Notes |
Delivery by forwarding agency |
Customs tariff number | 84148022 (EEC) |
