The entry into the world of mobile compressed air with Schneider airsystems.

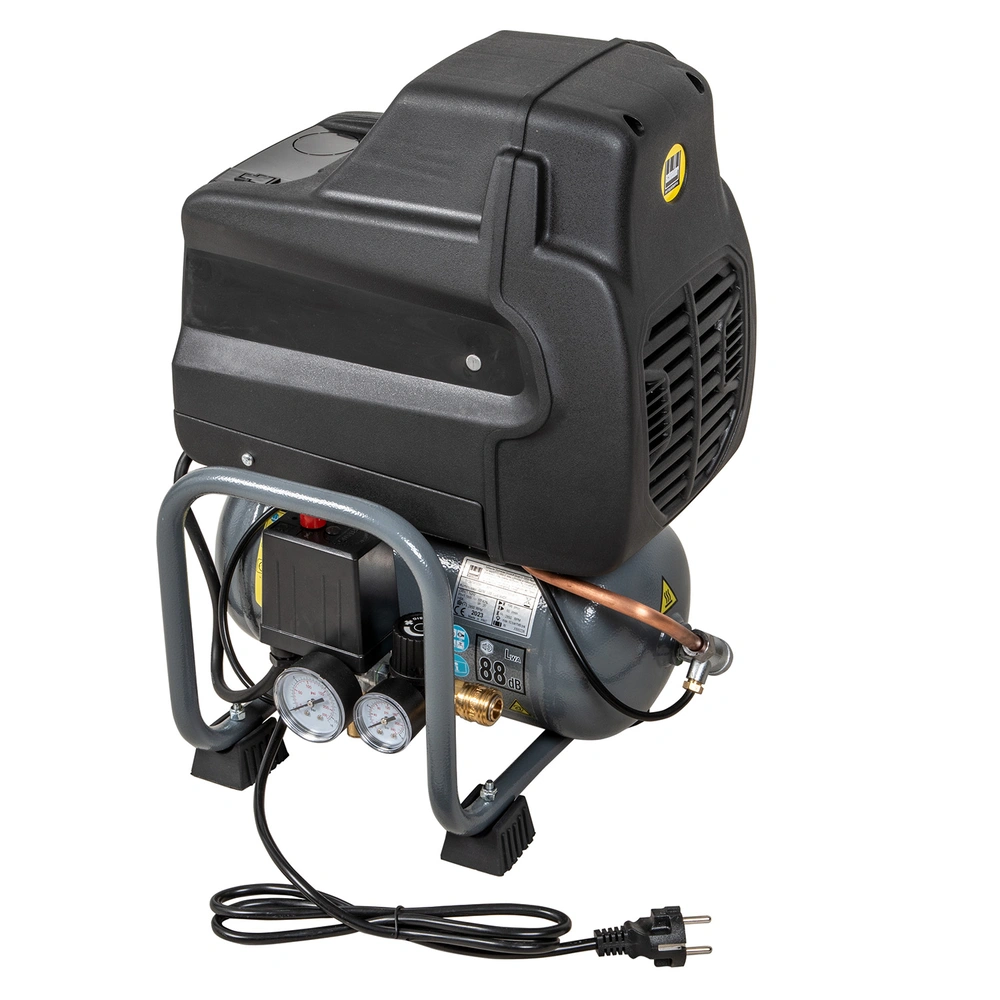

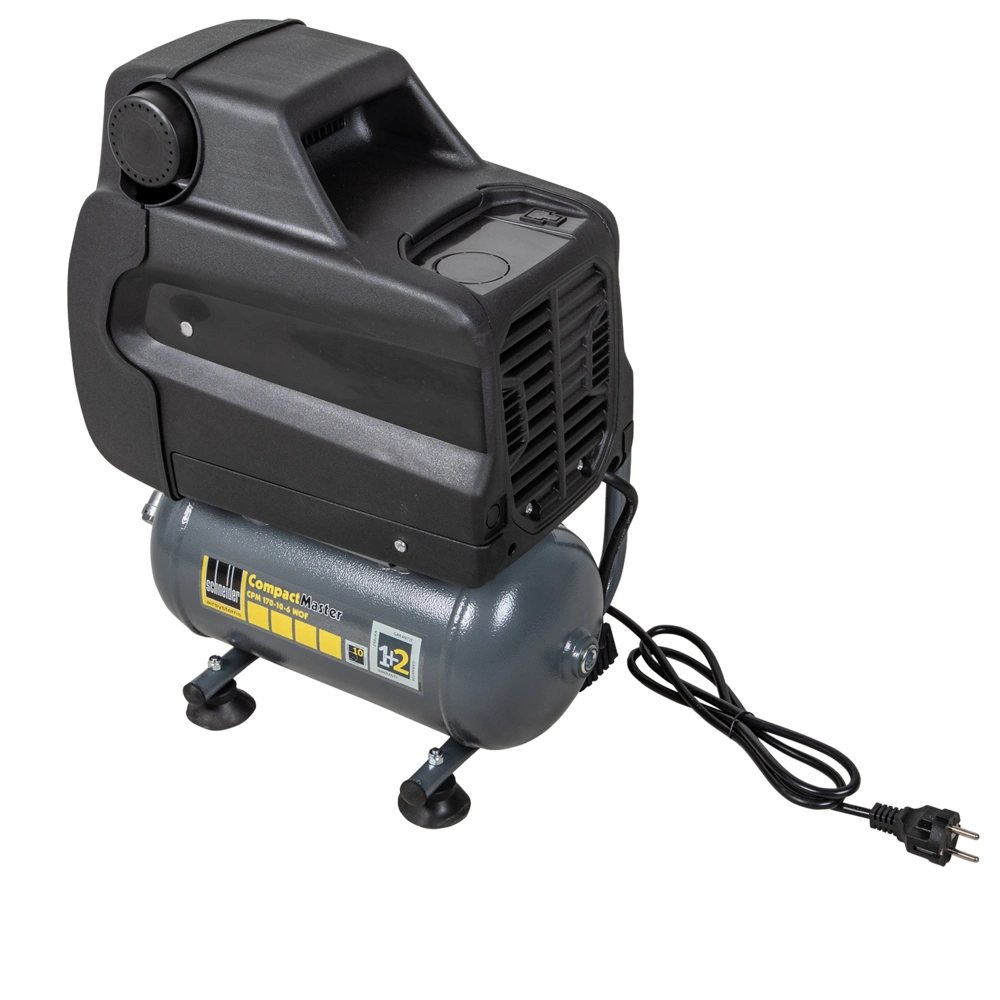

The piston compressor is equipped with a directly flanged power unit. Due to the compact design, the device is very...
All product informationRelated products
The entry into the world of mobile compressed air with Schneider airsystems.
The piston compressor is equipped with a directly flanged power unit. Due to the compact design, the device is very handy and low-weight and excellently suitable for the use on construction sites.

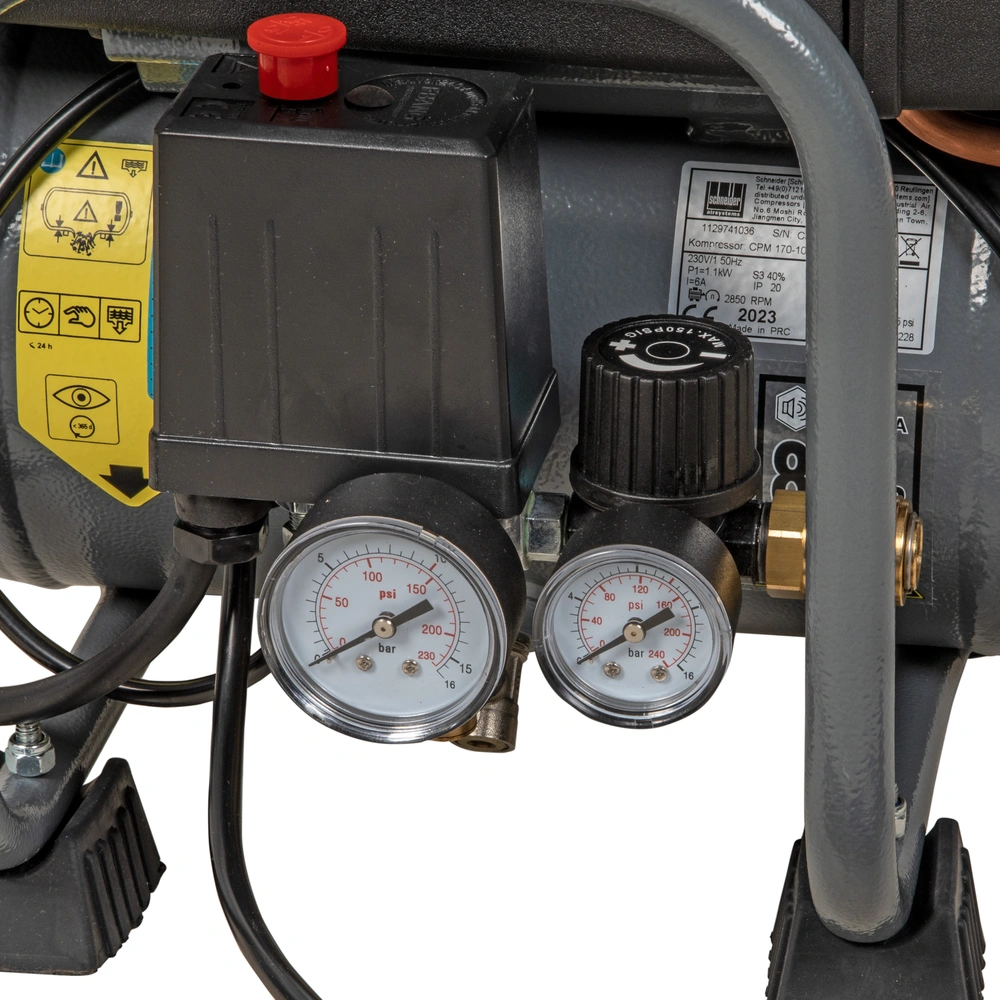

Low maintenance due to oil-free operation, no oil change required. Also, no oil can get into the condensate. The air outlet is controlled via quick-release coupling. All breakable components like pressure switch, pressure gauge and fittings are well-protected by the cover.
Note:
There is a 10-year warranty on the tank against corrosion.
For more information see Downloads
| OEG no. | 350199026 |
| Pressure max. [bar]: | 10 |
| Voltage [V]: | 230 |
| Length x Width x Height [mm]: | 340 x 260 x 520 |
| Noise emission [dB]: | 95 |
| Capacity [l]: | 6.0 |
| Speed max. [1/min]: | 2,850 |
| Filling capacity [l/min]: | 70 |
| Drive power [kW]: | 1.1 |
| Suction capacity [l/min]: | 150 |
| Manufacturer | Schneider |
| Manufacturer number | 1129741036 |
| Also replaces |
|
| Weight [kg] | 20 |
| Customs tariff number | 84148022 (CN) |
